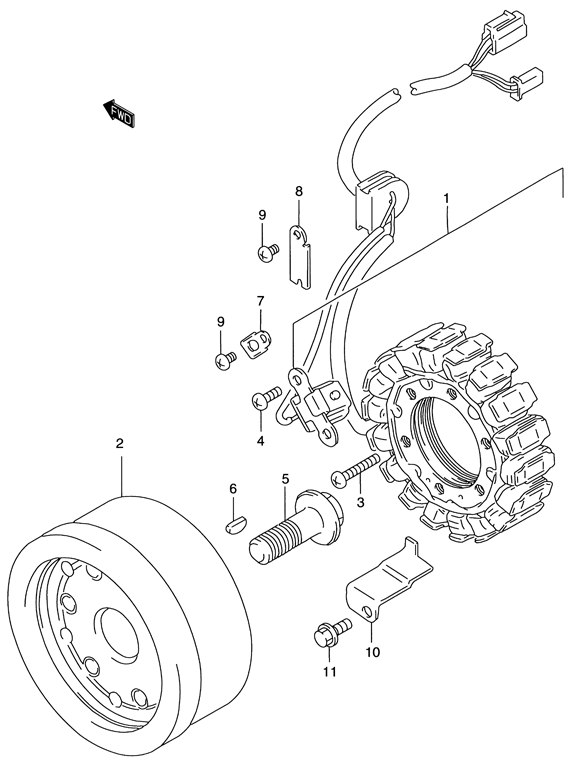

MAGNETO для Suzuki VS800GL Y - 2000 года выпуска
-
№АртикулНазвание
-
132101-45C00 STATORSTATOR
-
232102-38A30 ROTORROTOR
-
301547-06303 SCREWSCREW
-
402112-05103 SCREWSCREW
-
509103-14001 BOLT (14X43)BOLT (14X43)
-
609420-04008 KEYKEY
-
731497-45000 CLAMPCLAMP
-
832371-38A10 CLAMPCLAMP
-
902112-05103 SCREWSCREW
-
1032371-45C00 CLAMPCLAMP
-
1101547-06103 BOLTBOLT
