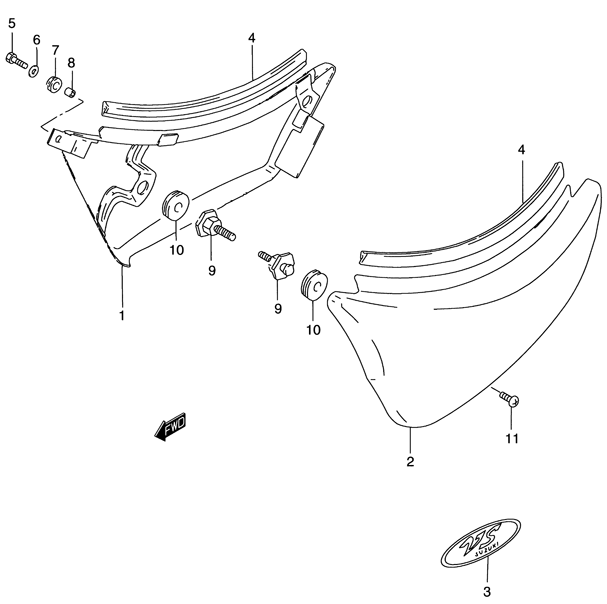

SIDE COVER для Suzuki VS800GL Y - 2000 года выпуска
-
№АртикулНазвание
-
1-147110-38A00-33J COVER, FRAME - RIGHT (33J - BLACK)COVER, FRAME - RIGHT (33J - BLACK)
-
1-247110-38A00-19A COVER, FRAME - RIGHT (19A - RED)COVER, FRAME - RIGHT (19A - RED)
-
2-147210-38A00-33J COVER, FRAME - LEFT (33J - BLACK)COVER, FRAME - LEFT (33J - BLACK)
-
2-247210-38A00-19A COVER, FRAME - LEFT (19A - RED)COVER, FRAME - LEFT (19A - RED)
-
368131-38E20 EMBLEMEMBLEM
-
468241-04X50-300 MOLDINGMOLDING
-
501550-06167 BOLT (RIGHT)BOLT (RIGHT)
-
609160-06084 WASHERWASHER
-
709320-06017 CUSHIONCUSHION
-
809180-06246 SPACERSPACER
-
947250-38A01 BOSS, FRAME COVERBOSS, FRAME COVER
-
1009320-08013 CUSHIONCUSHION
-
1102142-06103 SCREW (LEFT)SCREW (LEFT)
