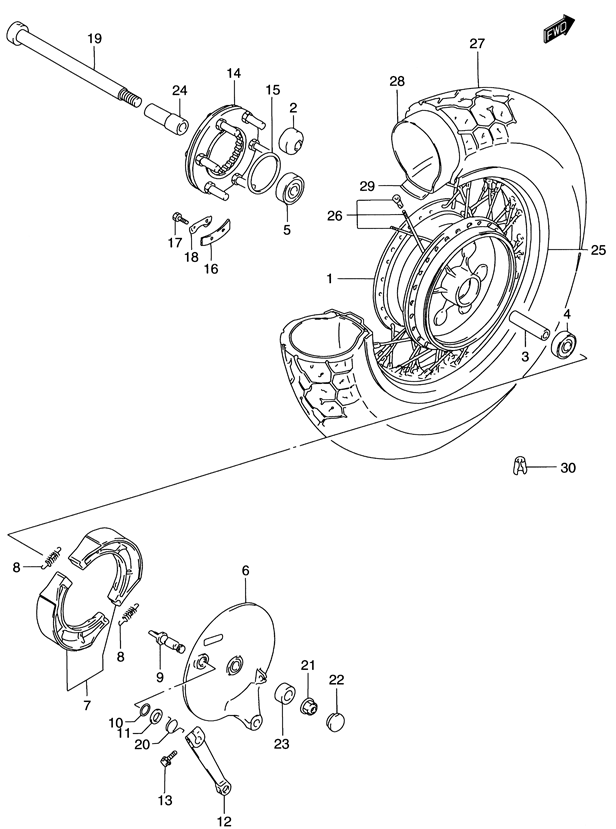

WHEEL - REAR для Suzuki VS800GL Y - 2000 года выпуска
-
№АртикулНазвание
-
164100-07861 HUB SET, WHEEL (REAR)HUB SET, WHEEL (REAR)
-
209319-12019 ...BUSHING (12X41X34)...BUSHING (12X41X34)
-
309180-17091 SPACER, HUB (REAR) (17.5X25X80)SPACER, HUB (REAR) (17.5X25X80)
-
408133-62037 BEARING (RIGHT)BEARING (RIGHT)
-
508143-63037 BEARING (LEFT)BEARING (LEFT)
-
664210-38A21 PANEL, BRAKE ANCHOR (REAR)PANEL, BRAKE ANCHOR (REAR)
-
764400-38810 SHOE SET, BRAKESHOE SET, BRAKE
-
855420-30000 SPRING, SHOESPRING, SHOE
-
964441-38A20 CAM, BRAKECAM, BRAKE
-
1009280-15003 O-RING (ID:14.8,D:2.40)O-RING (ID:14.8,D:2.40)
-
1109160-15048 WASHERWASHER
-
1264451-38A01 LEVER, BRAKE CAMLEVER, BRAKE CAM
-
1301570-06257 BOLTBOLT
-
1464680-45113 JOINT, HUB DRIVENJOINT, HUB DRIVEN
-
1509280-65003 O-RING (ID:65,D:2.40)O-RING (ID:65,D:2.40)
-
1664677-45110 WASHER, THRUSTWASHER, THRUST
-
1709119-06049 BOLT (6X16)BOLT (6X16)
-
1809169-06030 WASHERWASHER
-
1964711-38A11 AXLE (REAR) (L:302)AXLE (REAR) (L:302)
-
2009448-33006 SPRING, CAMSPRING, CAM
-
2108319-31148 NUTNUT
-
2264791-38B00 CAP (RIGHT)CAP (RIGHT)
-
2364751-46D00 SPACER (RIGHT)SPACER (RIGHT)
-
2464772-34201 SPACER (LEFT)SPACER (LEFT)
-
2565311-38A02 RIM, WHEEL (MT3.00X15 M/C)RIM, WHEEL (MT3.00X15 M/C)
-
2665320-38A02 SPOKE SET, WHEEL (REAR)SPOKE SET, WHEEL (REAR)
-
2765100-38A41 TIRE (REAR) (140/90-15 M/C 70H) (BRIDGESTONE)TIRE (REAR) (140/90-15 M/C 70H) (BRIDGESTONE)
-
2865200-38A00 TUBE, WHEEL (INNER)TUBE, WHEEL (INNER)
-
2965261-38A00 PROTECTOR, TUBE (INNER)PROTECTOR, TUBE (INNER)
-
30-155412-38A00 BALANCER (20G)BALANCER (20G)
-
30-255413-38A00 BALANCER (30G)BALANCER (30G)
