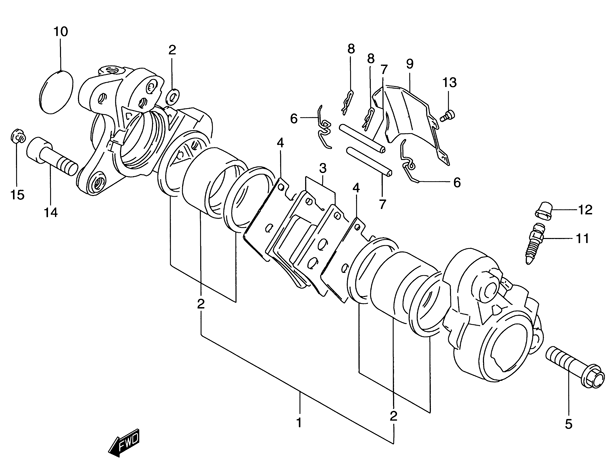

BRAKE - FRONT CALIPER для Suzuki VS800GL Y - 2000 года выпуска
-
№АртикулНазвание
-
1A59100-38A02 CALIPER ASSY. (FRONT)CALIPER ASSY. (FRONT)
-
169100-38810 ...PISTON SET...PISTON SET
-
269100-38830 ......SEAL SET, PISTON......SEAL SET, PISTON
-
359100-38820 ...PAD SET...PAD SET
-
459371-33410 ...SHIM...SHIM
-
559145-16700 ...BOLT...BOLT
-
659143-16700 ...SPRING...SPRING
-
769141-45000 ...PIN...PIN
-
869142-45000 ...CLIP...CLIP
-
959151-38B01 ...COVER...COVER
-
1059152-24A00 ...CAP, CALIPER...CAP, CALIPER
-
1159121-18410 ...BLEEDER...BLEEDER
-
1255156-66310 ...CAP...CAP
-
1359153-38B10 ...SCREW (4X6)...SCREW (4X6)
-
1409106-10038 BOLT (10X33)BOLT (10X33)
-
1509250-08014 CAPCAP
