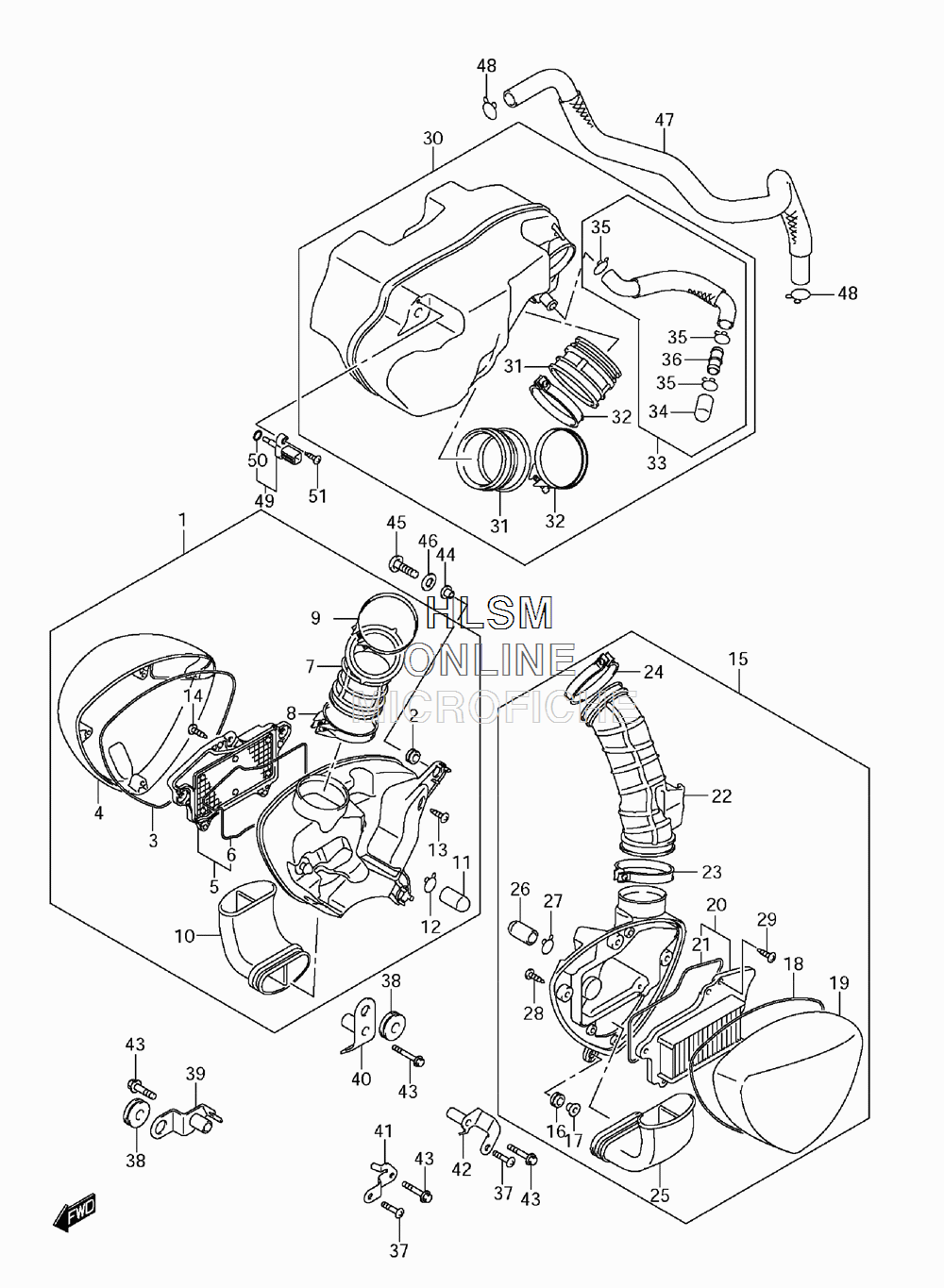

AIR CLEANER для Suzuki VZ1500 K9 - 2009 года выпуска
-
№АртикулНазвание
-
113701-40H00 CLEANER, AIR RIGHT HAND (INCL. 2-14)CLEANER, AIR RIGHT HAND (INCL. 2-14)
-
209320-09016 CUSHIONCUSHION
-
313856-40H00 GASKETGASKET
-
413741-40H00 CAP, AIR CLEANERCAP, AIR CLEANER
-
513780-40H00 FILTER ASSYFILTER ASSY
-
613787-40H00 GASKETGASKET
-
713738-40H00 TUBE, JOINT RIGHT HANDTUBE, JOINT RIGHT HAND
-
809402-62208 CLAMPCLAMP
-
913826-40H00 CLAMPCLAMP
-
1013891-40H00 TUBE, INLETTUBE, INLET
-
1113878-09F00 PLUG, DRAINPLUG, DRAIN
-
1209401-14101 CLIPCLIP
-
1313831-22H00 SCREWSCREW
-
1403541-0516A SCREWSCREW
-
1513702-40H00 CLEANER, AIR LEFT HAND (INCL. 16-29)CLEANER, AIR LEFT HAND (INCL. 16-29)
-
1609320-09016 CUSHIONCUSHION
-
1713812-29C50 COLLARCOLLAR
-
1813856-40H00 GASKETGASKET
-
1913741-40H00 CAP, AIR CLEANERCAP, AIR CLEANER
-
2013780-40H00 FILTER ASSY (INC 21)FILTER ASSY (INC 21)
-
2113787-40H00 GASKETGASKET
-
2213739-40H00 TUBE, JOINT LEFT HANDTUBE, JOINT LEFT HAND
-
2309402-62208 CLAMPCLAMP
-
2413827-40H00 CLAMPCLAMP
-
2513891-40H00 TUBE, INLETTUBE, INLET
-
2613878-09F00 PLUG, DRAINPLUG, DRAIN
-
2709401-14101 CLIPCLIP
-
2813831-22H00 SCREWSCREW
-
2903541-0516A SCREWSCREW
-
3013710-40H00 CHAMBER, AIR CLEANER (INCL. 31-36)CHAMBER, AIR CLEANER (INCL. 31-36)
-
3113881-40H00 TUBE, OUTLETTUBE, OUTLET
-
3213170-39H00 CLAMPCLAMP
-
3313870-40H00 TUBE, DRAIN (INC 34-36)TUBE, DRAIN (INC 34-36)
-
3413859-41B10 PLUG, DRAINPLUG, DRAIN
-
3509401-14101 CLIPCLIP
-
3613888-19B00 JOINTJOINT
-
3709139-06155 BOLTBOLT
-
3809320-08028 CUSHIONCUSHION
-
3913760-40H00 BRACKET, RIGHT HANDBRACKET, RIGHT HAND
-
4013770-40H00 BRACKET, LEFT HAND NO.1BRACKET, LEFT HAND NO.1
-
4113770-40H10 BRACKET, LEFT HAND NO.2BRACKET, LEFT HAND NO.2
-
4213770-40H20 BRACKET, LEFT HAND NO.3BRACKET, LEFT HAND NO.3
-
4309103-06509 BOLTBOLT
-
4413838-40H00 SPACERSPACER
-
4509139-06154 BOLT (6X35)BOLT (6X35)
-
4609160-06156 WASHERWASHER
-
4713850-40H00 TUBE, BREATHERTUBE, BREATHER
-
4809401-20405 CLIPCLIP
-
4913650-41F10 SENSOR, AIR TEMP (INCL. 50)SENSOR, AIR TEMP (INCL. 50)
-
5013655-41F10 O RINGO RING
-
5103511-0516B SCREWSCREW
