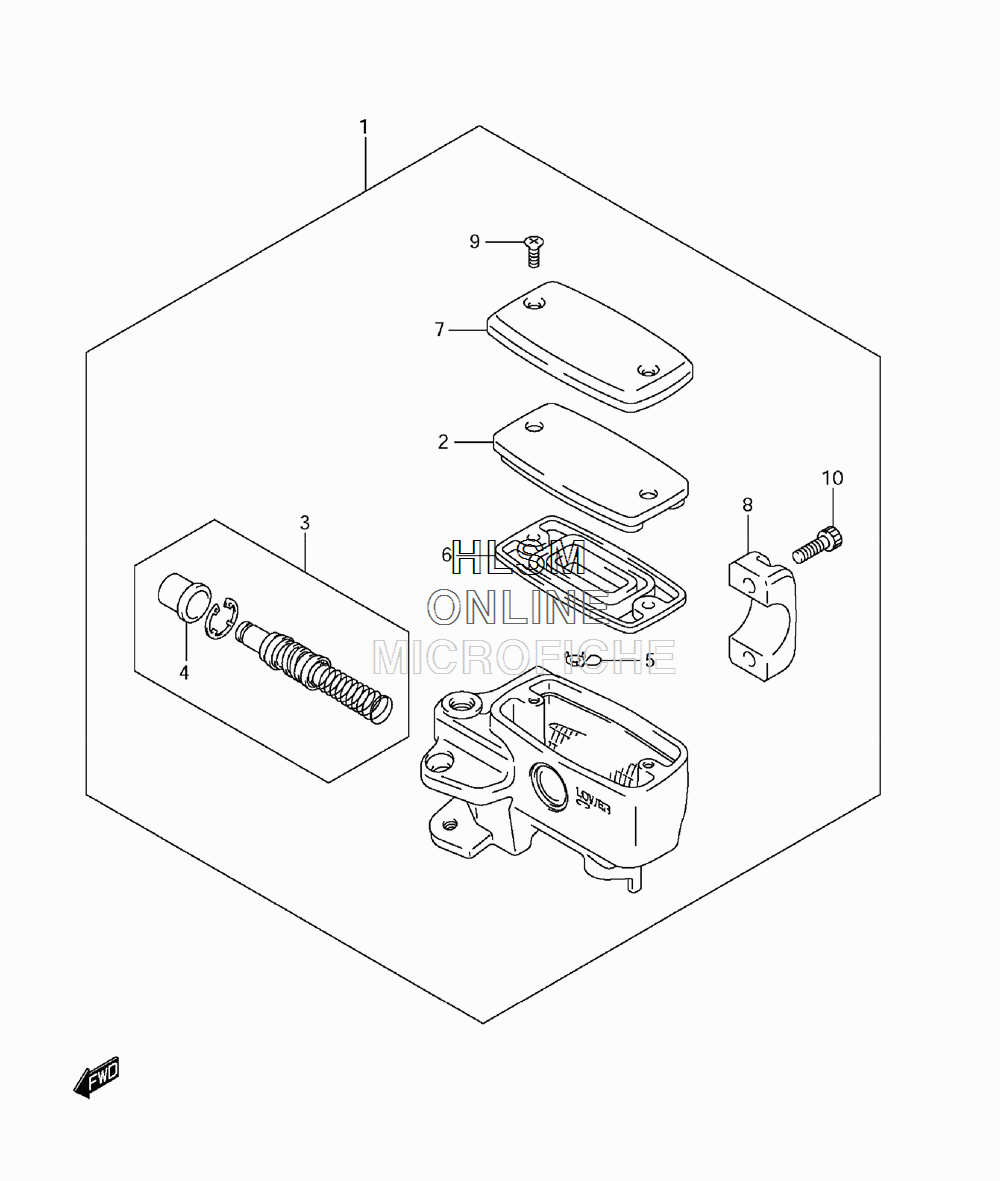

BRAKE - FRONT MASTER CYLINDER для Suzuki VZ1500 K9 - 2009 года выпуска
-
№АртикулНазвание
-
159600-10F61 CYLINDER ASSY, FRONT MASTER (INCL. 2-10)CYLINDER ASSY, FRONT MASTER (INCL. 2-10)
-
257437-10F00 PLATE, DIAPHRAGMPLATE, DIAPHRAGM
-
359601-45810 PISTON/CUP SET (INC 4)PISTON/CUP SET (INC 4)
-
459666-44300 BOOTBOOT
-
559664-32F00 PROTECTORPROTECTOR
-
659667-10F00 DIAPHRAGMDIAPHRAGM
-
759669-10F10 CAPCAP
-
859671-10F00 HOLDERHOLDER
-
902122-04127 SCREWSCREW
-
1007130-06207 BOLTBOLT
