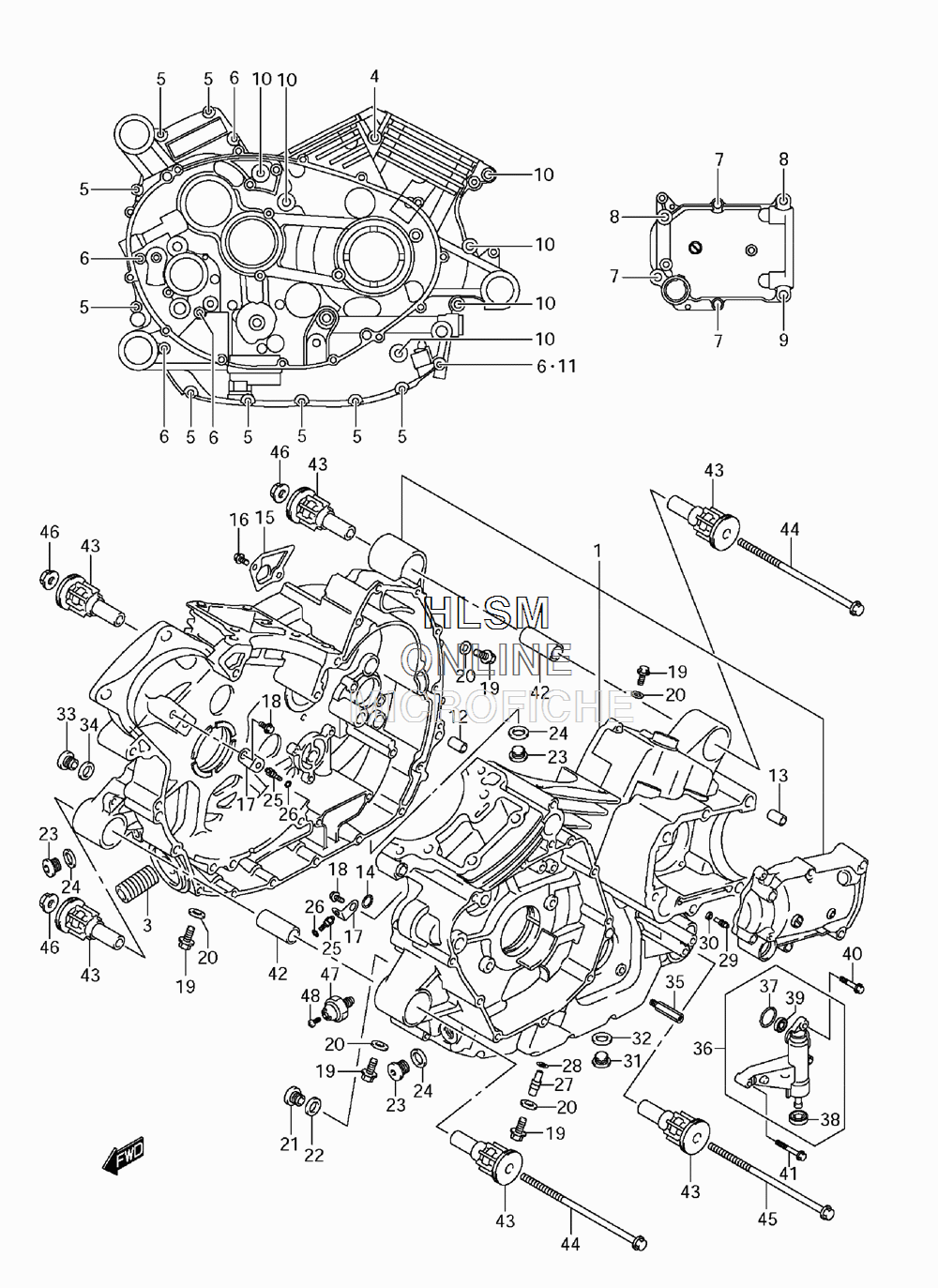

CRANKCASE для Suzuki VZ1500 K9 - 2009 года выпуска
-
№АртикулНазвание
-
111301-40860 CRANKCASE SET (INCL. 2-13)CRANKCASE SET (INCL. 2-13)
-
212228-40H00-0A0 BEARING, CRANK THRUST (T:1.925)BEARING, CRANK THRUST (T:1.925)
-
212228-40H00-0B0 BEARING, CRANK THRUST (T:1.950)BEARING, CRANK THRUST (T:1.950)
-
212228-40H00-0C0 BEARING, CRANK THRUST (T:1.975)BEARING, CRANK THRUST (T:1.975)
-
212228-40H00-0D0 BEARING, CRANK THRUST (T:2.000)BEARING, CRANK THRUST (T:2.000)
-
212228-40H00-0E0 BEARING, CRANK THRUST (T:2.025)BEARING, CRANK THRUST (T:2.025)
-
212228-40H00-0F0 BEARING, CRANK THRUST (T:2.050)BEARING, CRANK THRUST (T:2.050)
-
316591-06B01 UNION, OIL STANDUNION, OIL STAND
-
409103-08122 BOLT (8X110)BOLT (8X110)
-
501547-0645A BOLTBOLT
-
601547-0685A BOLTBOLT
-
701550-0845A BOLTBOLT
-
801550-0860A BOLTBOLT
-
901550-0870A BOLTBOLT
-
1001550-0880A BOLTBOLT
-
1109168-06023 GASKETGASKET
-
1211319-33E50 PINPIN
-
1309206-11007 PINPIN
-
1409280-13007 O RING, CRANKCASEO RING, CRANKCASE
-
1511313-40H00 PLATE, OIL SEPARATORPLATE, OIL SEPARATOR
-
1601547-0612A BOLTBOLT
-
1716439-38B00 PLATE, PISTON JET REARPLATE, PISTON JET REAR
-
1801547-0612A BOLTBOLT
-
1901550-0812A PLUG, OIL GALLERYPLUG, OIL GALLERY
-
2009168-08016 GASKETGASKET
-
2109248-10010 PLUG, OIL GALLERYPLUG, OIL GALLERY
-
2209168-10002 GASKETGASKET
-
2309248-16012 PLUG, OIL GALLERYPLUG, OIL GALLERY
-
2409168-16002 GASKETGASKET
-
2509493-80009 JET, PISTON COOLINGJET, PISTON COOLING
-
2609280-04004 O RINGO RING
-
2709493-24009 JET, MISSION OILJET, MISSION OIL
-
2809280-04004 O RINGO RING
-
2909493-36004 JET, SECONDARY OILJET, SECONDARY OIL
-
3009280-04004 O RINGO RING
-
3109247-14036 PLUG, OIL DRAINPLUG, OIL DRAIN
-
3209168-14002 GASKETGASKET
-
3309248-14012 PLUG, OIL GALLERYPLUG, OIL GALLERY
-
3409168-14002 GASKETGASKET
-
3511372-22H00 BOLTBOLT
-
3623120-41810 CAMSHAFT SET, CLUTCH RELEASE (INCL. 37-39)CAMSHAFT SET, CLUTCH RELEASE (INCL. 37-39)
-
3709280-21008 O RINGO RING
-
3809282-10012 SEAL, OILSEAL, OIL
-
3909285-10004 SEAL, OILSEAL, OIL
-
4001547-0620A BOLTBOLT
-
4101547-0630A BOLTBOLT
-
4211611-48G00 SPACER, ENGINE MOUNTINGSPACER, ENGINE MOUNTING
-
4311652-40H00 BUSH, ENGINE MOUNTINGBUSH, ENGINE MOUNTING
-
4409103-10041 BOLT (10X215)BOLT (10X215)
-
4509103-10118 BOLT (10X195)BOLT (10X195)
-
4608319-3110A NUTNUT
-
4737820-33D10 SWITCH ASSY, OIL PRESSURE (INCL. 48)SWITCH ASSY, OIL PRESSURE (INCL. 48)
-
4837822-33D00 BOLT, OIL PRESSUREBOLT, OIL PRESSURE
