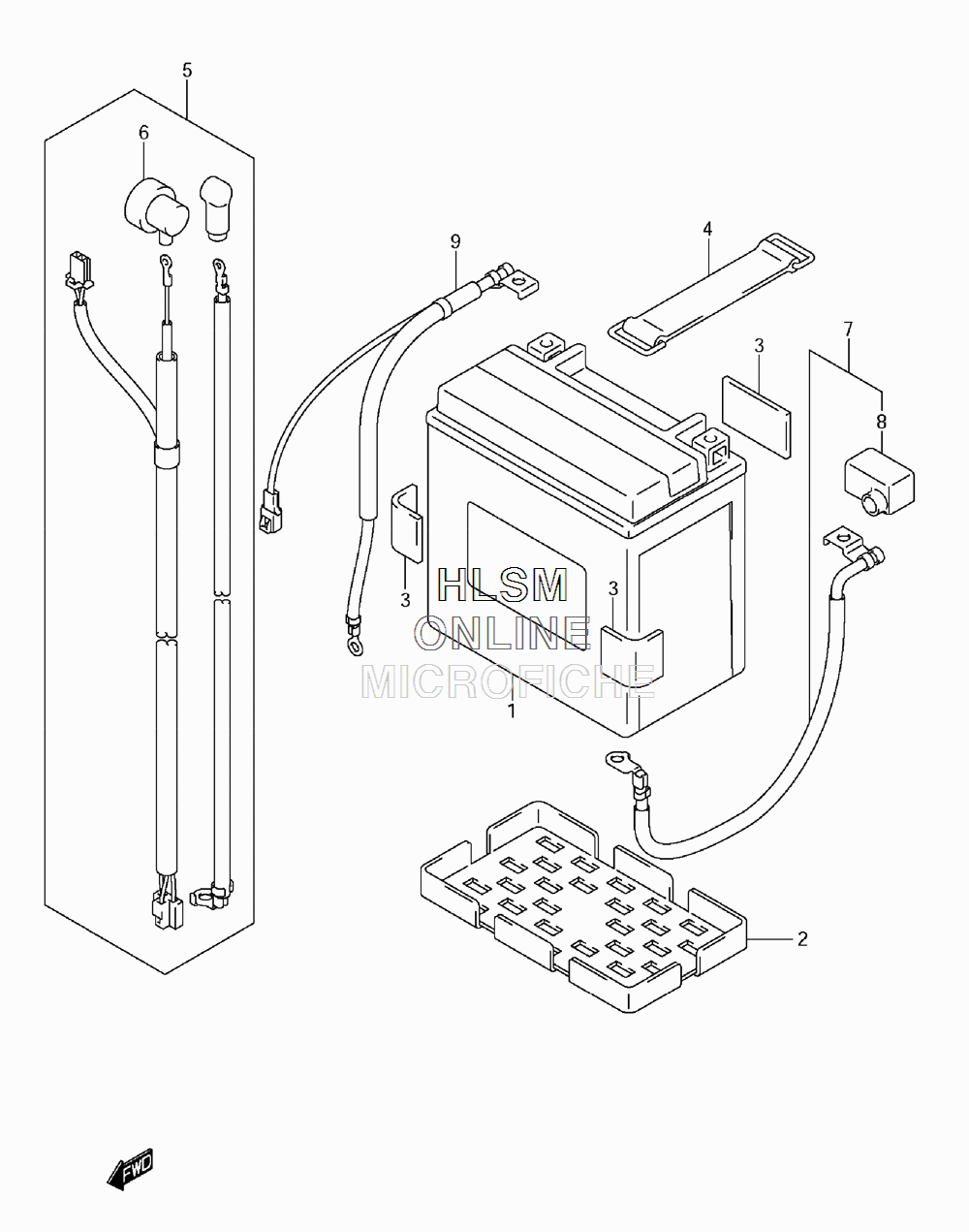

BATTERY для Suzuki VZ1500 K9 - 2009 года выпуска
-
№АртикулНазвание
-
133610-31G00 BATTERY ASSY FTZ16-BS, 12V18AHBATTERY ASSY FTZ16-BS, 12V18AH
-
233652-16G00 PROTECTOR, BATTERYPROTECTOR, BATTERY
-
333652-36000 PROTECTOR (30X50X3.0)PROTECTOR (30X50X3.0)
-
409462-00043 BAND, BATTERYBAND, BATTERY
-
533810-40H00 WIRE, STARTER MOTOR LEAD (INCL. 6)WIRE, STARTER MOTOR LEAD (INCL. 6)
-
636618-43410 CAP, OIL PRESSURE SWITCHCAP, OIL PRESSURE SWITCH
-
733820-40H00 WIRE, BATTERY PLUS LEAD (INCL. 8)WIRE, BATTERY PLUS LEAD (INCL. 8)
-
833624-16E00 CAP, BATTERYCAP, BATTERY
-
933860-40H00 WIRE, BATTERY MINUS LEADWIRE, BATTERY MINUS LEAD
