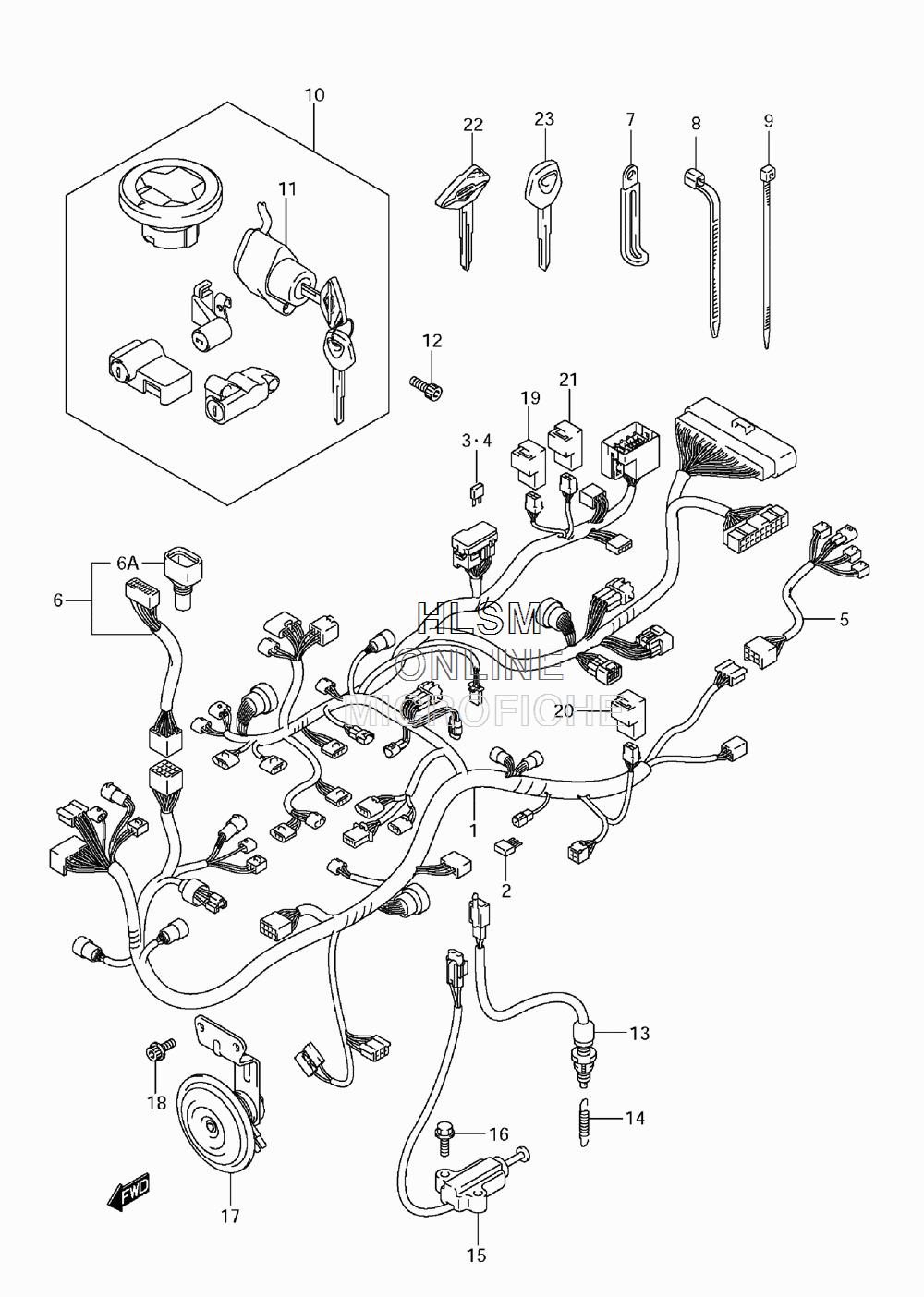

ELECTRICAL - WIRING HARNESS для Suzuki VZ1500 K9 - 2009 года выпуска
-
№АртикулНазвание
-
136610-40H30 HARNESS, WIRING (EXCEPT CALIF) (INCL. 2-4)HARNESS, WIRING (EXCEPT CALIF) (INCL. 2-4)
-
136610-40H40 HARNESS, WIRING (CALIF. ONLY) (INCL. 2-4)HARNESS, WIRING (CALIF. ONLY) (INCL. 2-4)
-
236611-38A00 DIODEDIODE
-
309481-10501 FUSE (10A)FUSE (10A)
-
409481-15501 FUSE (15A)FUSE (15A)
-
536858-40H00 WIRE, REAR CORDWIRE, REAR CORD
-
636859-40H00 WIRE, METER LEAD (INCL. 6A)WIRE, METER LEAD (INCL. 6A)
-
6A36618-33E00 BOOTBOOT
-
709404-06429 CLAMP (L:45)CLAMP (L:45)
-
809407-14403 CLAMP (L:125)CLAMP (L:125)
-
809407-19401 CLAMP (L:190)CLAMP (L:190)
-
909407-14407 CLAMP (L:145)CLAMP (L:145)
-
1037000-40830 LOCK SET (INCL. 11)LOCK SET (INCL. 11)
-
1137110-40H30 SWITCH ASSY, IGNITIONSWITCH ASSY, IGNITION
-
1207130-0616A BOLT, IGNITIONBOLT, IGNITION
-
1337740-19F00 SWITCH ASSY, STOP LAMPSWITCH ASSY, STOP LAMP
-
1409443-06077 SPRING, STOP LAMPSPRING, STOP LAMP
-
1537840-22H00 SWITCH ASSY, SIDE STANDSWITCH ASSY, SIDE STAND
-
1601547-0625A SCREWSCREW
-
1738500-40H00 HORN ASSYHORN ASSY
-
1807120-0612B BOLT, HORNBOLT, HORN
-
1938740-24X50 RELAY ASSY, FUEL PUMPRELAY ASSY, FUEL PUMP
-
2038740-24X50 RELAY ASSY, FAN MOTORRELAY ASSY, FAN MOTOR
-
2138740-24A00 RELAY ASSY, HEADLAMPRELAY ASSY, HEADLAMP
-
2237146-10F00 KEY, BLANK (BOULEVARD) (OPT)KEY, BLANK (BOULEVARD) (OPT)
-
2337146-48E10 KEY, BLANK (OPT)KEY, BLANK (OPT)
