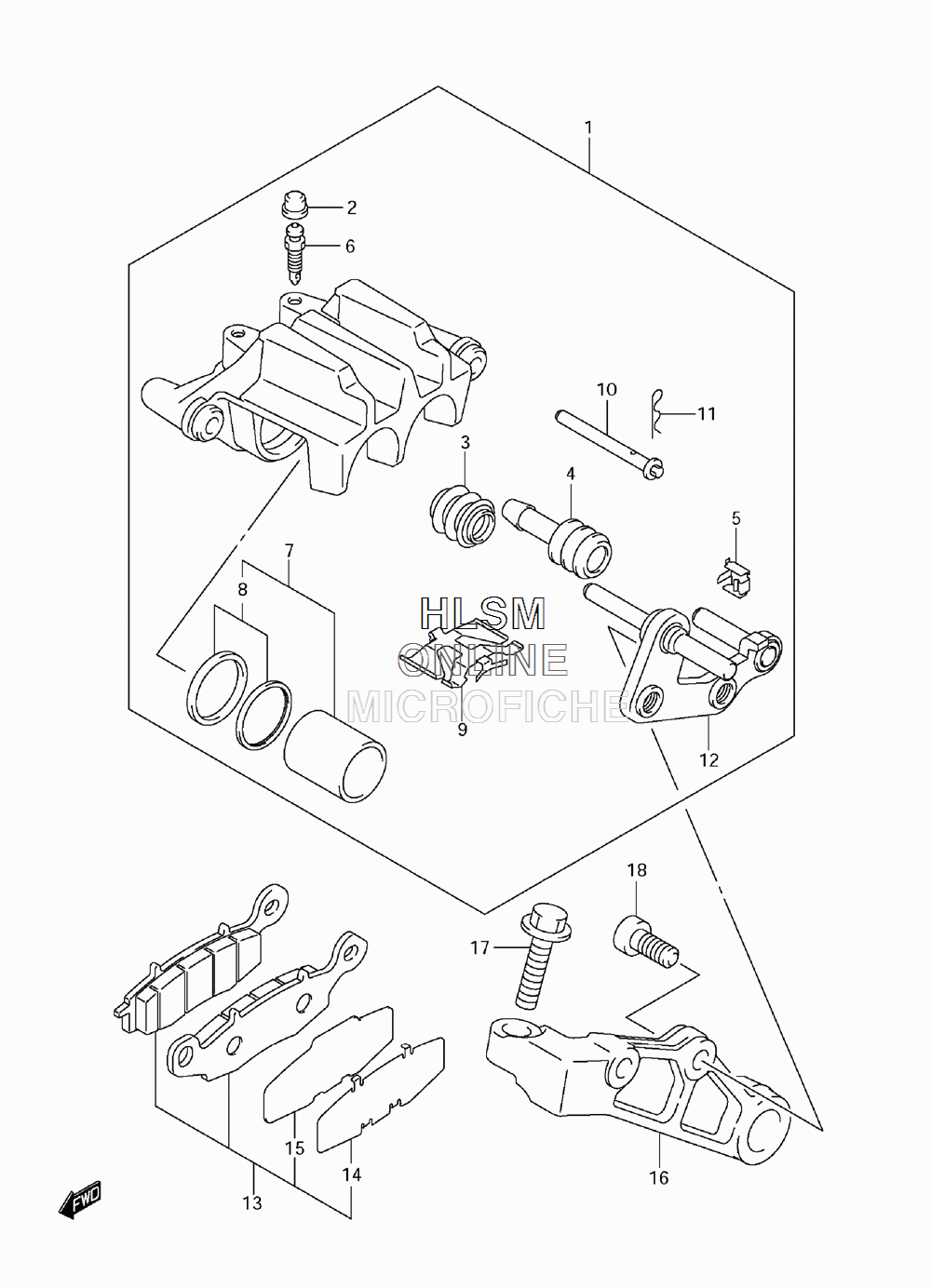

BRAKE - REAR CALIPER для Suzuki VZ1500 K9 - 2009 года выпуска
-
№АртикулНазвание
-
169100-01D40-999 CALIPER ASSY, REAR (INCL. 2-12)CALIPER ASSY, REAR (INCL. 2-12)
-
255156-66310 CAP, BLEEDER PLUGCAP, BLEEDER PLUG
-
359112-44B00 BOOT, AXLEBOOT, AXLE
-
459113-01D00 INSULATOR, AXLEINSULATOR, AXLE
-
559116-33D00 GUIDE, PADGUIDE, PAD
-
659121-03B00 BLEEDERBLEEDER
-
769100-01840 PISTON SET (INC 8)PISTON SET (INC 8)
-
859300-33841 SEAL SET, PISTONSEAL SET, PISTON
-
969115-01D40 SPRING, PADSPRING, PAD
-
1069141-01D40 PIN, PADPIN, PAD
-
1169142-45000 CLIP, PAD PINCLIP, PAD PIN
-
1269150-01D40 CARRIER, CALIPERCARRIER, CALIPER
-
1369100-01890 PAD AND SHIM SET (INCL. 14-15)PAD AND SHIM SET (INCL. 14-15)
-
1459172-33D00 SHIMSHIM
-
1569172-01D40 INSULATORINSULATOR
-
1669721-48G20 BRACKET, REAR CALIPERBRACKET, REAR CALIPER
-
1709103-12109 BOLT, CALIPER BRACKETBOLT, CALIPER BRACKET
-
1809106-10062 BOLT, REAR CALIPERBOLT, REAR CALIPER
