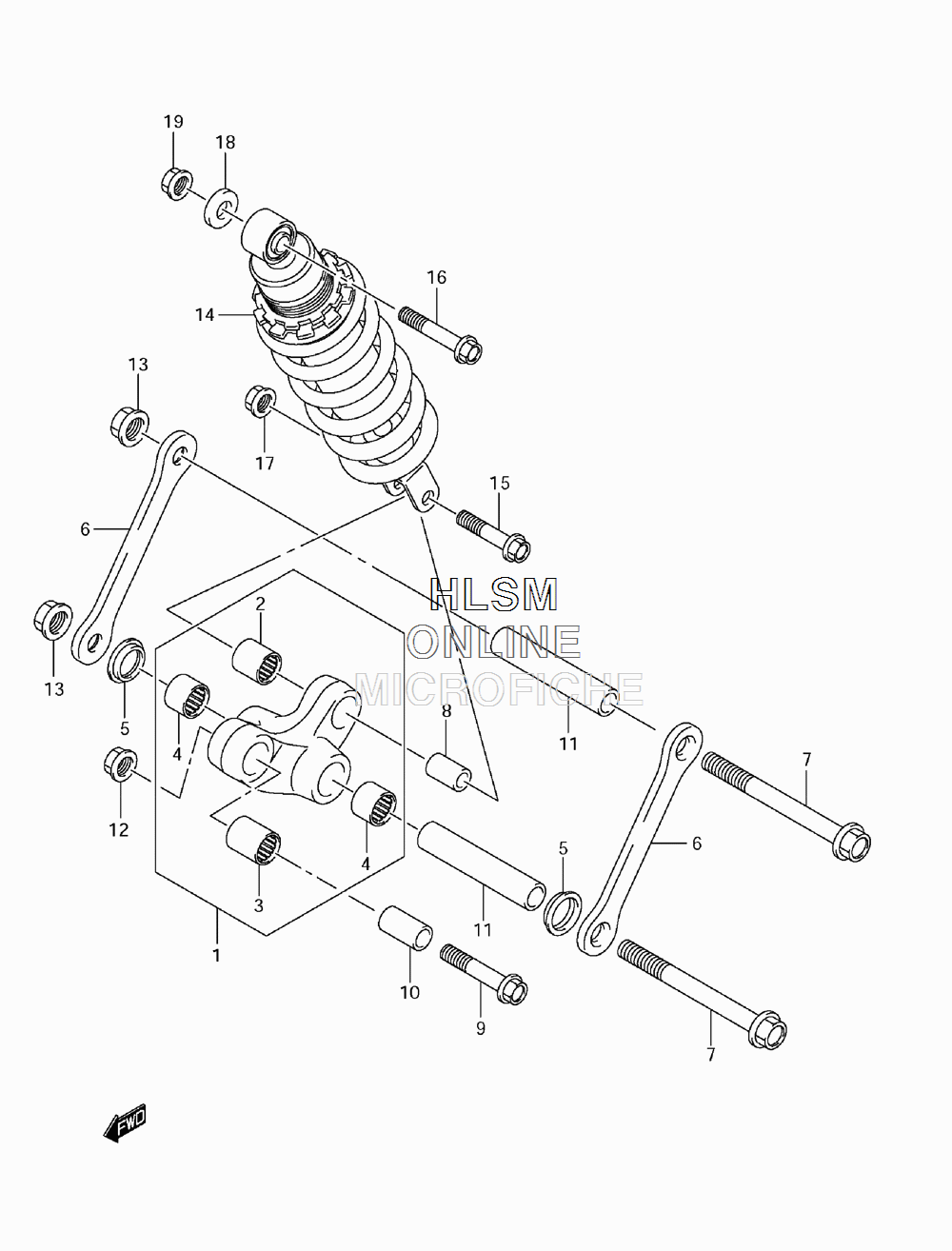

SUSPENSION - CUSHION LEVER W/ SHOCK для Suzuki VZ1500 K9 - 2009 года выпуска
-
№АртикулНазвание
-
162600-40840 LEVER, REAR CUSHION (INCL. 2-4)LEVER, REAR CUSHION (INCL. 2-4)
-
209263-20064 BEARING, REAR CUSHION LEVER REARBEARING, REAR CUSHION LEVER REAR
-
309263-20074 BEARING, REAR CUSHION LEVER FRONTBEARING, REAR CUSHION LEVER FRONT
-
409263-22062 BEARING, REAR CUSHION LEVER CTRBEARING, REAR CUSHION LEVER CTR
-
562624-37E00 SEAL, REAR CUSHION LEVER CTRSEAL, REAR CUSHION LEVER CTR
-
662641-40H00 ROD, REAR CUSHIONROD, REAR CUSHION
-
762658-44G10 BOLT, REAR CUSHION RODBOLT, REAR CUSHION ROD
-
862684-01D00 SPACER, REAR CUSHION LEVER REARSPACER, REAR CUSHION LEVER REAR
-
909103-14016 BOLT, REAR CUSHION LEVER FRONTBOLT, REAR CUSHION LEVER FRONT
-
1009180-14014 SPACER, REAR CUSHION LEVER FRONTSPACER, REAR CUSHION LEVER FRONT
-
1109180-16049 SPACER, REAR CUSHION RODSPACER, REAR CUSHION ROD
-
1208319-3114A NUT, REAR CUSHION LEVER FRONTNUT, REAR CUSHION LEVER FRONT
-
1308319-3116A NUT, REAR CUSHION RODNUT, REAR CUSHION ROD
-
1462100-40H00 ABSORBER ASSY, REAR SHOCK (CANADA ONLY)ABSORBER ASSY, REAR SHOCK (CANADA ONLY)
-
1462100-40H10 ABSORBER ASSY, REAR SHOCK (EXCEPT CANADA)ABSORBER ASSY, REAR SHOCK (EXCEPT CANADA)
-
1562668-42A02 BOLT, REAR SHOCK ABSORBER, LOWERBOLT, REAR SHOCK ABSORBER, LOWER
-
1662658-27C10 BOLT, REAR SHOCK ABSORBER, UPPERBOLT, REAR SHOCK ABSORBER, UPPER
-
1708319-3112A NUT, REAR SHOCK ABSORBER, LOWERNUT, REAR SHOCK ABSORBER, LOWER
-
1809180-12157 SPACER, REAR SHOCK ABSORBER, UPPERSPACER, REAR SHOCK ABSORBER, UPPER
-
1909159-12056 NUT, REAR SHOCK ABSORBER, UPPERNUT, REAR SHOCK ABSORBER, UPPER
