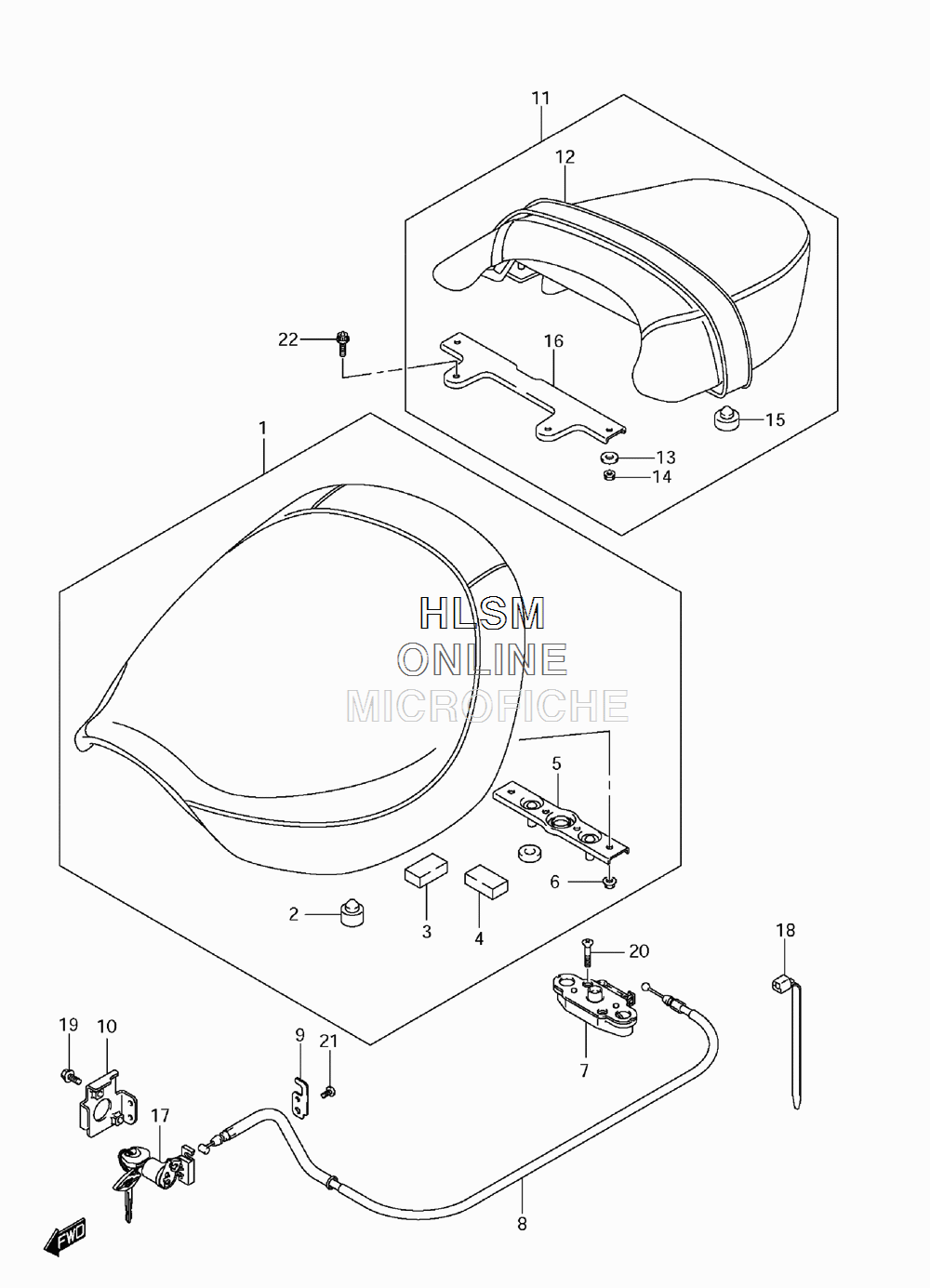

SEAT для Suzuki VZ1500 K9 - 2009 года выпуска
-
№АртикулНазвание
-
145100-40H00-DCG SEAT ASSY (BLACK) (INCL. 2-6)SEAT ASSY (BLACK) (INCL. 2-6)
-
209321-10011 CUSHIONCUSHION
-
345148-40H00 CUSHIONCUSHION
-
445149-40H00 CUSHIONCUSHION
-
545290-42F01 STRIKERSTRIKER
-
608319-3106A NUTNUT
-
745220-20A01 BRACKET, SEAT SUPPORTBRACKET, SEAT SUPPORT
-
845280-40H00 CABLE, SEAT LOCKCABLE, SEAT LOCK
-
945288-40H00 PLATE, SEAT LOCKPLATE, SEAT LOCK
-
1045289-40H00 BRACKET, SEAT LOCKBRACKET, SEAT LOCK
-
1145300-40H00-48H SEAT ASSY, PILLION (BLACK) (INCL. 12-16)SEAT ASSY, PILLION (BLACK) (INCL. 12-16)
-
1245180-40H00-48H BAND ASSY (BLACK)BAND ASSY (BLACK)
-
1309160-06088 WASHERWASHER
-
1408319-3106A NUTNUT
-
1509321-10002 CUSHIONCUSHION
-
1645315-40H00 BRACKETBRACKET
-
1795700-31841 LOCK ASSY, SEATLOCK ASSY, SEAT
-
1809407-19401 CLAMP, SEAT LOCK CABLECLAMP, SEAT LOCK CABLE
-
1901547-0616A BOLT, SEAT LOCK BRACKETBOLT, SEAT LOCK BRACKET
-
2002122-0630A SCREW, SEAT SUPPORT BRAKESCREW, SEAT SUPPORT BRAKE
-
2102142-0512A SCREW, SEAT LOCK PLATESCREW, SEAT LOCK PLATE
-
2207120-0616A BOLT, PILLION SEATBOLT, PILLION SEAT
