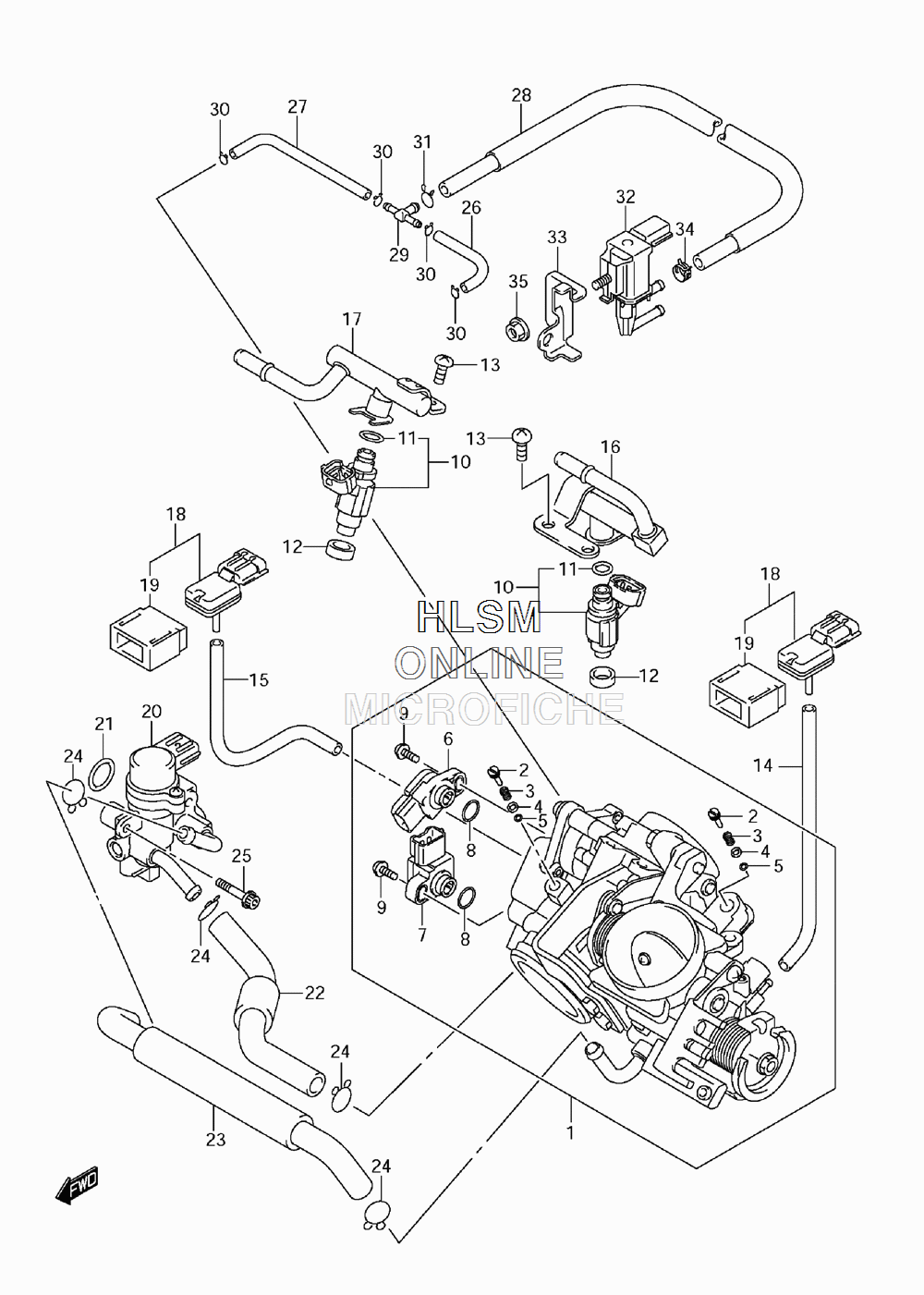

CARBURETOR - THROTTLE BODY для Suzuki VZ1500 K9 - 2009 года выпуска
-
№АртикулНазвание
-
113405-40H00 BODY, THROTTLE (EXCEPT CALIF) (INCL. 2-9)BODY, THROTTLE (EXCEPT CALIF) (INCL. 2-9)
-
113405-40H10 BODY, THROTTLE (CALIF. ONLY) (INCL. 2-9)BODY, THROTTLE (CALIF. ONLY) (INCL. 2-9)
-
213269-33E00 ADJUSTERADJUSTER
-
313268-48700 SPRINGSPRING
-
413606-47A00 WASHERWASHER
-
513295-29900 O RINGO RING
-
613580-48G10 SENSOR ASSYSENSOR ASSY
-
713580-48G00 SENSOR ASSYSENSOR ASSY
-
813575-29G00 O RINGO RING
-
913605-02F00 SCREWSCREW
-
1015710-48G00 INJECTOR ASSY (INCL. 11)INJECTOR ASSY (INCL. 11)
-
1115717-16G00 O RINGO RING
-
1215722-29G00 SEALSEAL
-
1313602-06148 SCREWSCREW
-
1413683-48G00 HOSEHOSE
-
1513683-40H10 HOSEHOSE
-
1615730-40H00 PIPE ASSY, DELIVERYPIPE ASSY, DELIVERY
-
1715730-40H10 PIPE ASSY, DELIVERYPIPE ASSY, DELIVERY
-
1818591-41F00 SENSOR, PRESSURE (INC 19)SENSOR, PRESSURE (INC 19)
-
1918595-33G00 HOLDERHOLDER
-
2018117-40H00 VALVE, ISCVALVE, ISC
-
2109280-14011 O RINGO RING
-
2213697-40H00 HOSE, RIGHT HANDHOSE, RIGHT HAND
-
2313698-40H00 HOSE, LEFT HANDHOSE, LEFT HAND
-
2409401-13102 CLIPCLIP
-
2507120-0525A SCREWSCREW
-
2613683-40H00 HOSEHOSE
-
2713683-22H10 HOSEHOSE
-
2813683-18H21 HOSEHOSE
-
2913685-04F10 NIPPLENIPPLE
-
3013671-12C00 CLIPCLIP
-
3113671-48B10 CLIPCLIP
-
3218117-52G10 VALVE, CANISTER PURGE (CALIF. ONLY)VALVE, CANISTER PURGE (CALIF. ONLY)
-
3318119-40H00 BRACKETBRACKET
-
3409401-10409 CLIPCLIP
-
3508316-1006A NUTNUT
