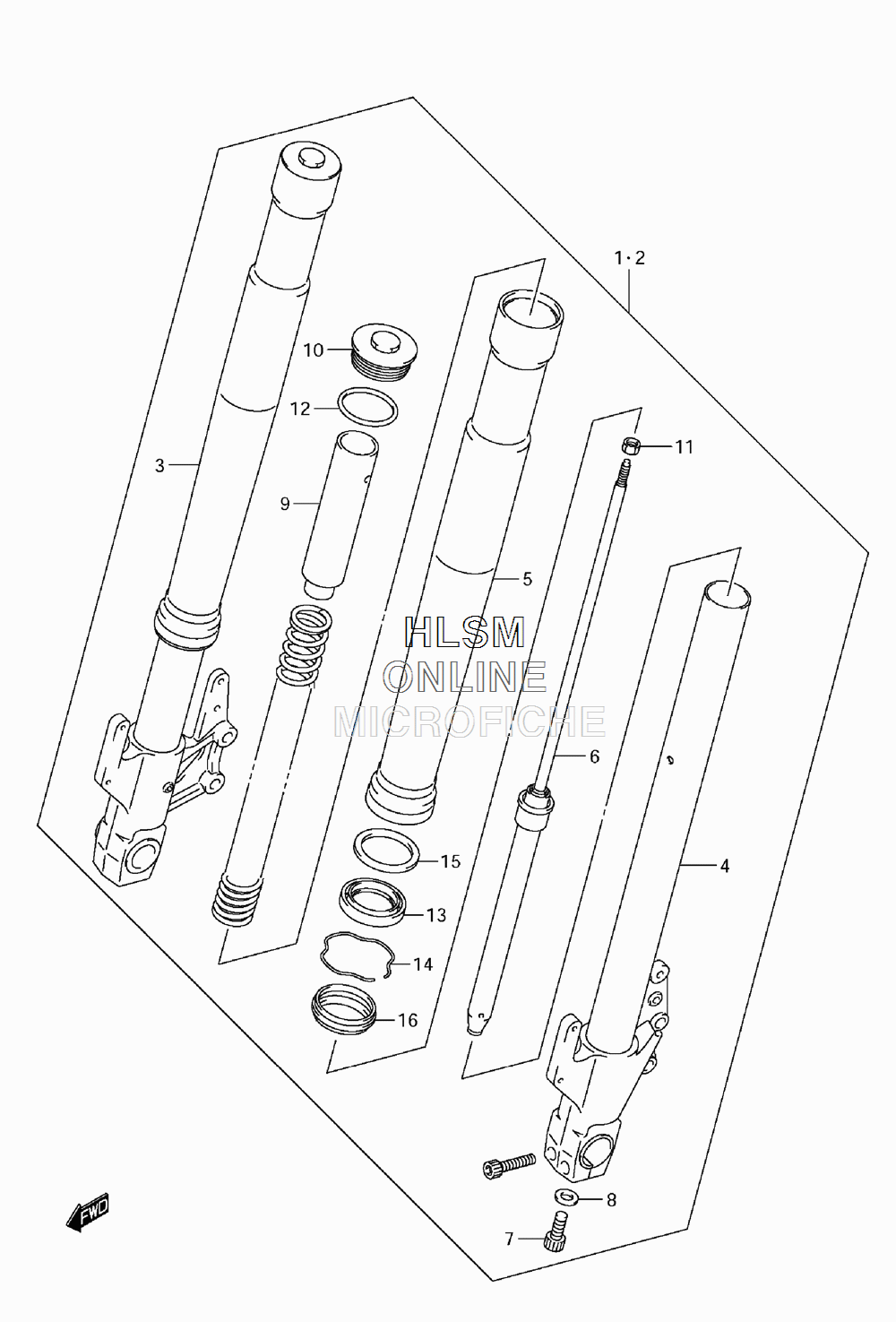

SUSPENSION - FRONT FORK для Suzuki VZ1500 K9 - 2009 года выпуска
-
№АртикулНазвание
-
151103-40H00 DAMPER ASSY, FRONT FORK, RIGHT (INCL. 3-12)DAMPER ASSY, FRONT FORK, RIGHT (INCL. 3-12)
-
251104-40H00 DAMPER ASSY, FRONT FORK, LEFT (INCL. 3-12)DAMPER ASSY, FRONT FORK, LEFT (INCL. 3-12)
-
351110-40H00 TUBE, INNER, RIGHTTUBE, INNER, RIGHT
-
451120-40H00 TUBE, INNER, LEFTTUBE, INNER, LEFT
-
551130-40H00 TUBE, OUTERTUBE, OUTER
-
651146-40H00 CYLINDERCYLINDER
-
751147-05H00 BOLTBOLT
-
851148-41310 GASKETGASKET
-
951176-21H00 SPACER, SPRINGSPACER, SPRING
-
1051351-40H00 CAPCAP
-
1151352-13A60 NUT, RODNUT, ROD
-
1262278-14100 O RINGO RING
-
1351153-41G00 SEAL, OILSEAL, OIL
-
1451156-14200 RING, STOPPERRING, STOPPER
-
1551158-14200 WASHERWASHER
-
1651173-41G00 SEAL, DUSTSEAL, DUST
