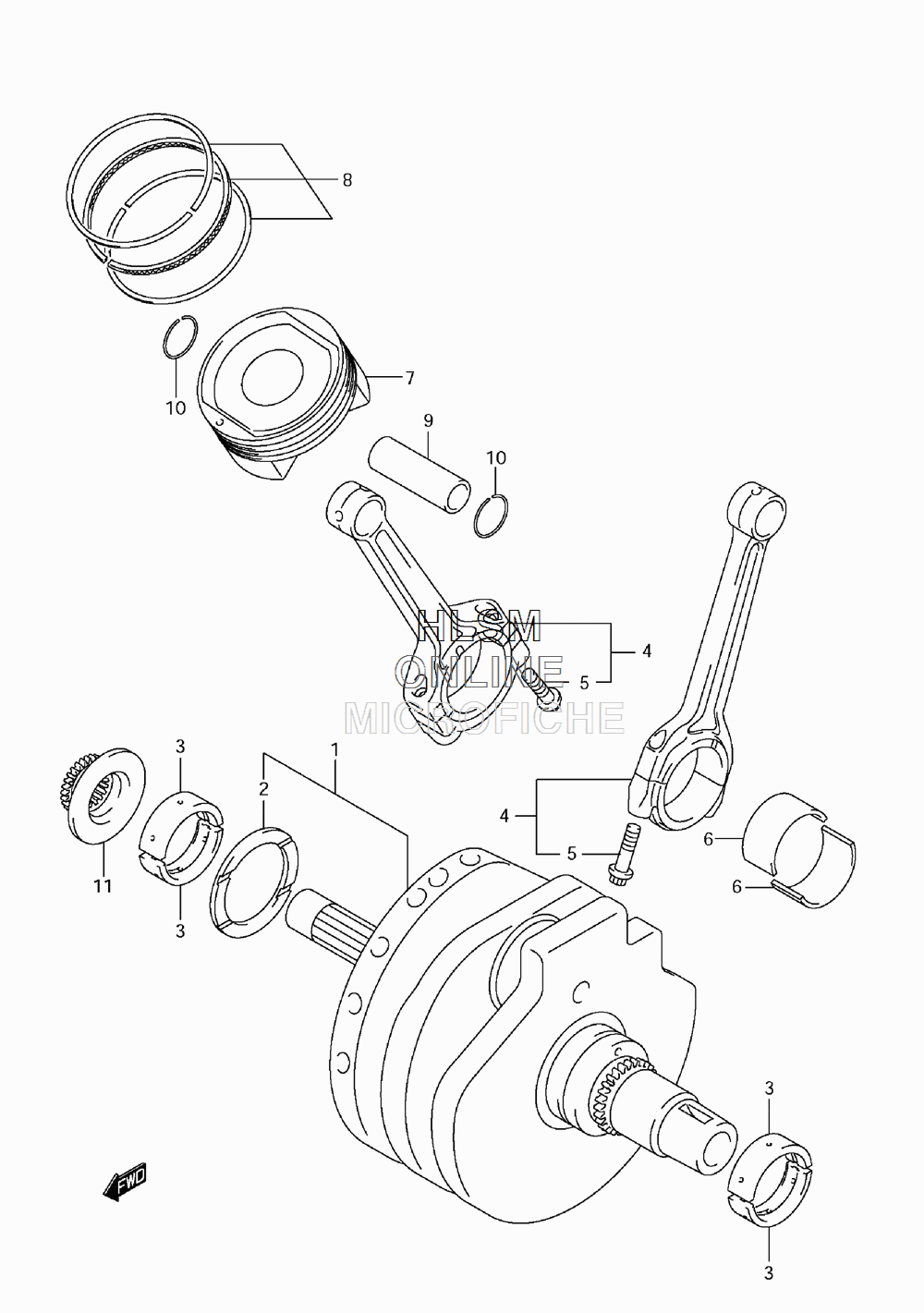

CRANKSHAFT W/ PISTON для Suzuki VZ1500 K9 - 2009 года выпуска
-
№АртикулНазвание
-
112000-40840 CRANKSHAFT SET (INCL. 2)CRANKSHAFT SET (INCL. 2)
-
212228-40H00-0A0 BEARING, CRANK THRUST (T:1.925)BEARING, CRANK THRUST (T:1.925)
-
212228-40H00-0B0 BEARING, CRANK THRUST (T:1.950)BEARING, CRANK THRUST (T:1.950)
-
212228-40H00-0C0 BEARING, CRANK THRUST (T:1.975)BEARING, CRANK THRUST (T:1.975)
-
212228-40H00-0D0 BEARING, CRANK THRUST (T:2.000)BEARING, CRANK THRUST (T:2.000)
-
212228-40H00-0E0 BEARING, CRANK THRUST (T:2.025)BEARING, CRANK THRUST (T:2.025)
-
212228-40H00-0F0 BEARING, CRANK THRUST (T:2.050)BEARING, CRANK THRUST (T:2.050)
-
312229-40H00-0A0 BEARING, CRANKSHAFT (GREEN)BEARING, CRANKSHAFT (GREEN)
-
312229-40H00-0B0 BEARING, CRANKSHAFT (BLACK)BEARING, CRANKSHAFT (BLACK)
-
312229-40H00-0C0 BEARING, CRANKSHAFT (BROWN)BEARING, CRANKSHAFT (BROWN)
-
412160-40H00 CONNROD ASSY (INCL. 5)CONNROD ASSY (INCL. 5)
-
512163-06G00 BOLT, CONNECTING RODBOLT, CONNECTING ROD
-
612164-40H00-0A0 BEARING, CRANK PIN (GREEN)BEARING, CRANK PIN (GREEN)
-
612164-40H00-0B0 BEARING, CRANK PIN (BLACK)BEARING, CRANK PIN (BLACK)
-
612164-40H00-0C0 BEARING, CRANK PIN (BROWN)BEARING, CRANK PIN (BROWN)
-
612164-40H00-0D0 BEARING, CRANK PIN (YELLOW)BEARING, CRANK PIN (YELLOW)
-
712111-40H00-0F0 PISTONPISTON
-
812140-40H00 RING SET, PISTONRING SET, PISTON
-
912151-02F00 PIN, PISTONPIN, PISTON
-
1009381-22002 CIRCLIPCIRCLIP
-
1112731-40H00 SPROCKET, CAM CHAIN DRIVESPROCKET, CAM CHAIN DRIVE
