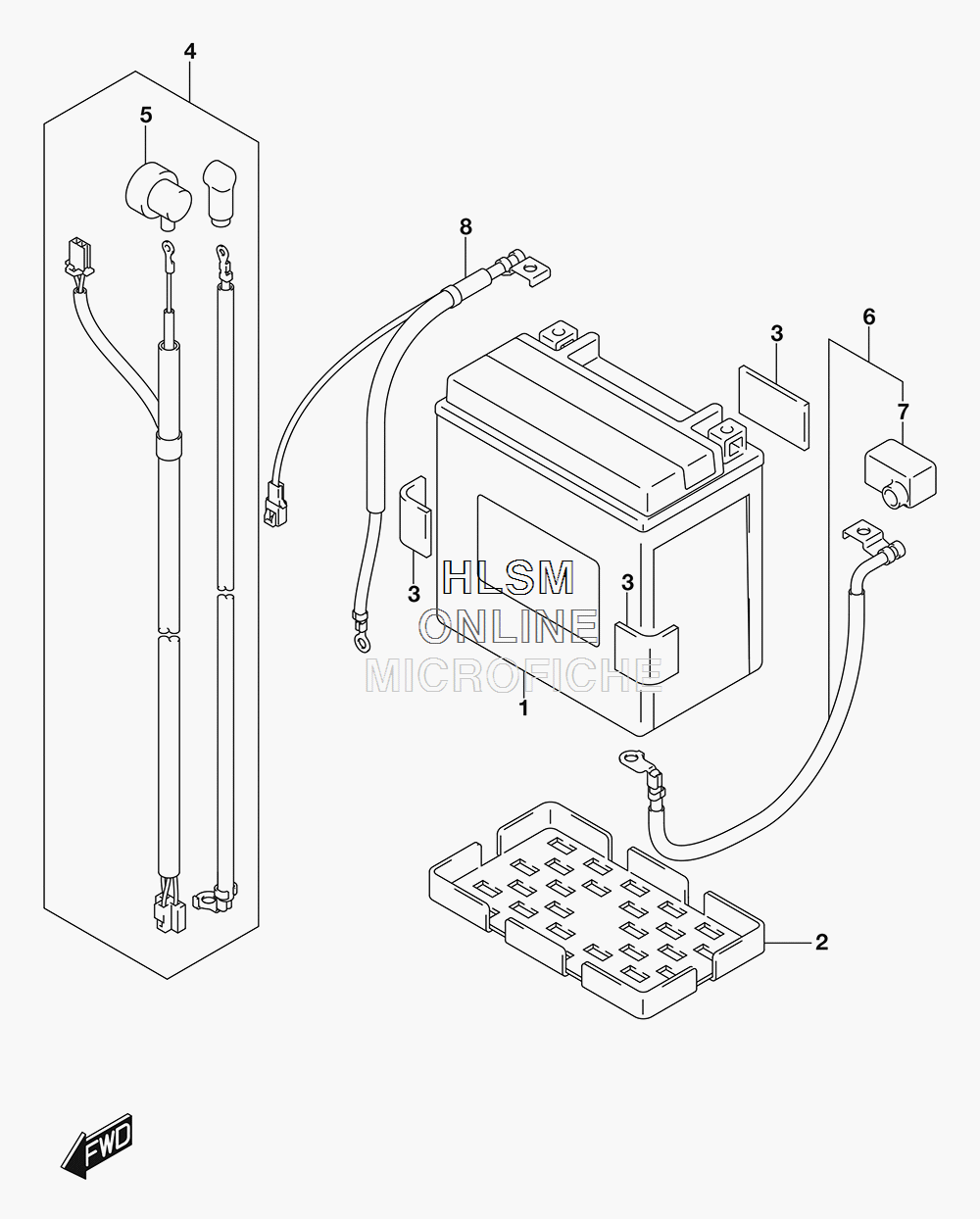

BATTERY для Suzuki VZ1500 M90 - 2017 года выпуска
-
№АртикулНазвание
-
133630-31G00 BATTERY ASSY (FTZ16-BS, 12V18.9AH)BATTERY ASSY (FTZ16-BS, 12V18.9AH)
-
233652-16G00 PROTECTOR, BATTERYPROTECTOR, BATTERY
-
333652-36000 PROTECTOR (30X50X3.0)PROTECTOR (30X50X3.0)
-
433810-40H01 WIRE, STARTER MOTOR LEADWIRE, STARTER MOTOR LEAD
-
536618-31J00 ...CAP, OIL PRESSURE SWITCH...CAP, OIL PRESSURE SWITCH
-
633820-40H00 WIRE, BATTERY PLUS LEADWIRE, BATTERY PLUS LEAD
-
733624-16E00 ...CAP, BATTERY...CAP, BATTERY
-
833860-40H00 WIRE, BATTERY MINUS LEADWIRE, BATTERY MINUS LEAD
