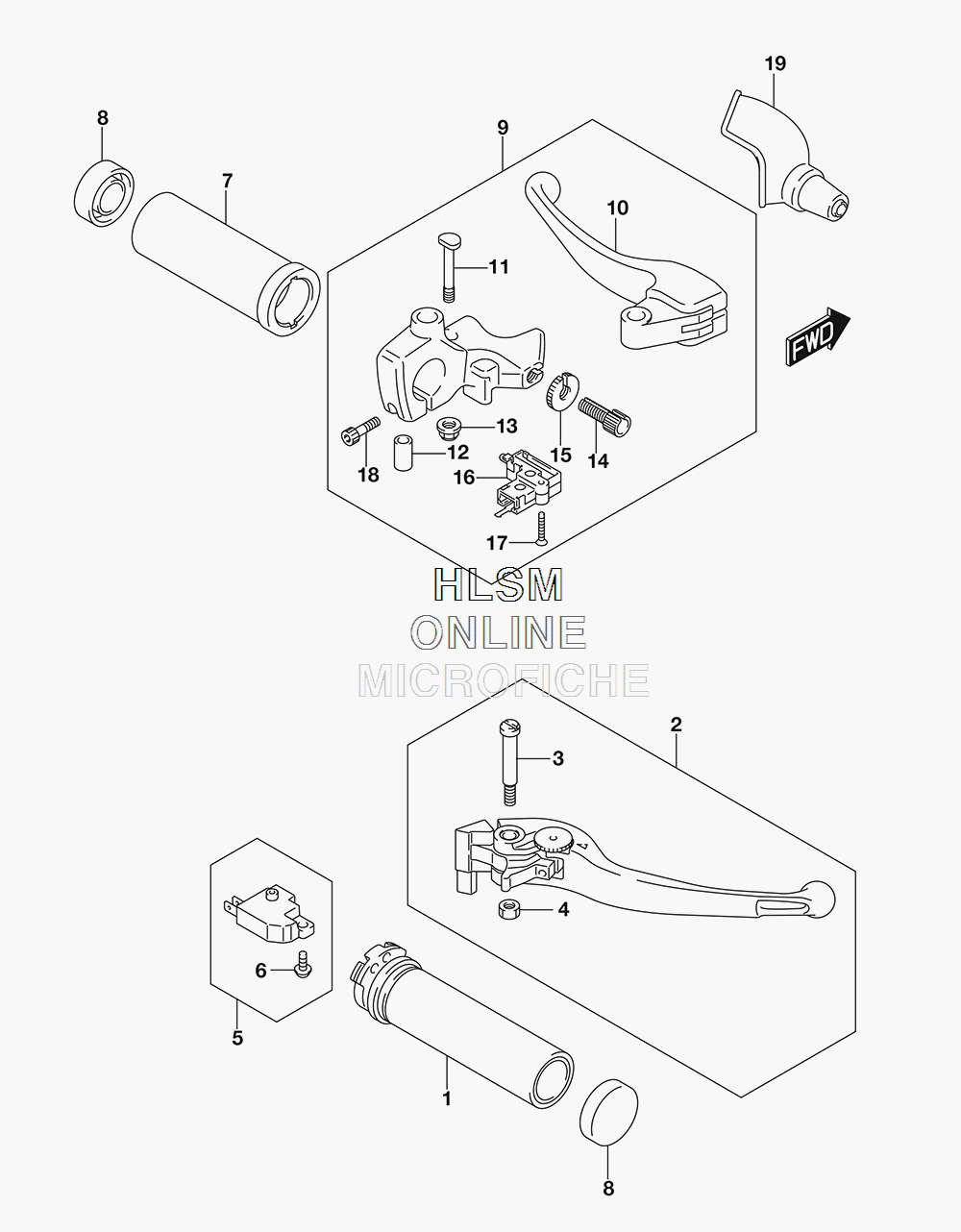

HANDLE LEVER для Suzuki VZ1500 M90 - 2017 года выпуска
-
№АртикулНазвание
-
157110-26D10 GRIP, THROTTLEGRIP, THROTTLE
-
257300-48G20 LEVER ASSY, BRAKELEVER ASSY, BRAKE
-
357431-48G00 ...BOLT, PIVOT...BOLT, PIVOT
-
408319-2106A ...NUT...NUT
-
557460-14J01 SWITCH ASSY, FRONT BRAKESWITCH ASSY, FRONT BRAKE
-
657465-17C00 ...SCREW...SCREW
-
757210-26D00 GRIP, LHGRIP, LH
-
857216-38A00 CAP, GRIP ENDCAP, GRIP END
-
957500-48G31 LEVER ASSY, CLUTCHLEVER ASSY, CLUTCH
-
1057621-48G20 ...LEVER, CLUTCH...LEVER, CLUTCH
-
1157531-48G00 ...BOLT, PIVOT...BOLT, PIVOT
-
1257623-48G00 ...SPACER...SPACER
-
1308319-3106A ...NUT...NUT
-
1457441-08C00 ...ADJUSTER, CABLE...ADJUSTER, CABLE
-
1557442-08C00 ...NUT, LOCK...NUT, LOCK
-
1657560-05A10 ...SWITCH, CLUTCH...SWITCH, CLUTCH
-
1757562-41G01 ...SCREW...SCREW
-
1807130-06207 ...BOLT...BOLT
-
1957541-48G10 COVER, CLUTCH LEVERCOVER, CLUTCH LEVER
