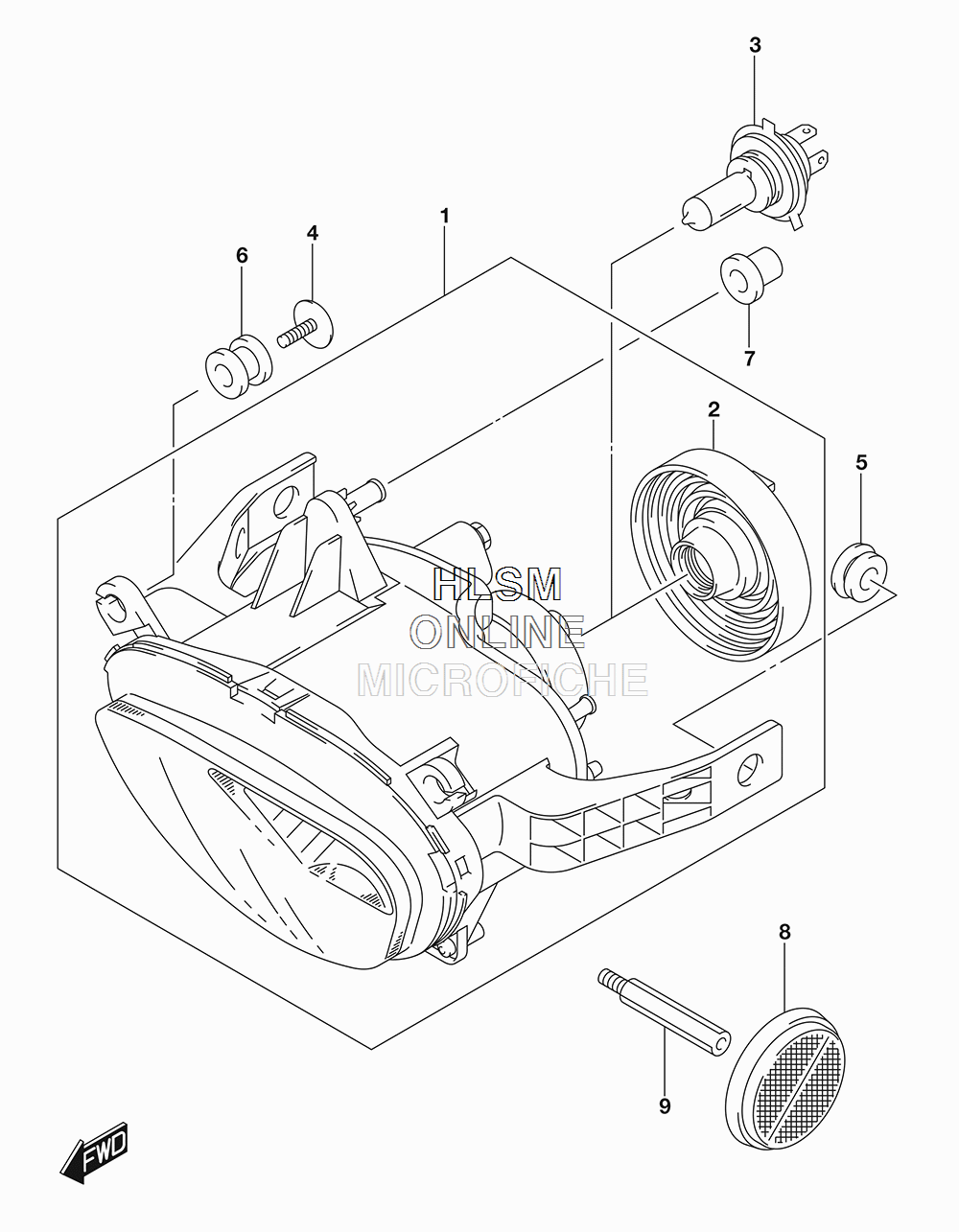

HEADLAMP для Suzuki VZ1500 M90 - 2017 года выпуска
-
№АртикулНазвание
-
135100-48G40-999 HEADLAMP ASSYHEADLAMP ASSY
-
235173-14G00 ...COVER...COVER
-
309471-12060 BULB (12V,60/55W)BULB (12V,60/55W)
-
409136-05062 SCREW (5X15)SCREW (5X15)
-
509320-09506 CUSHIONCUSHION
-
609320-09039 CUSHIONCUSHION
-
709320-09505 CUSHIONCUSHION
-
835950-14A11 REFLEX REFLECTOR ASSY, FRREFLEX REFLECTOR ASSY, FR
-
909119-06104 BOLTBOLT
