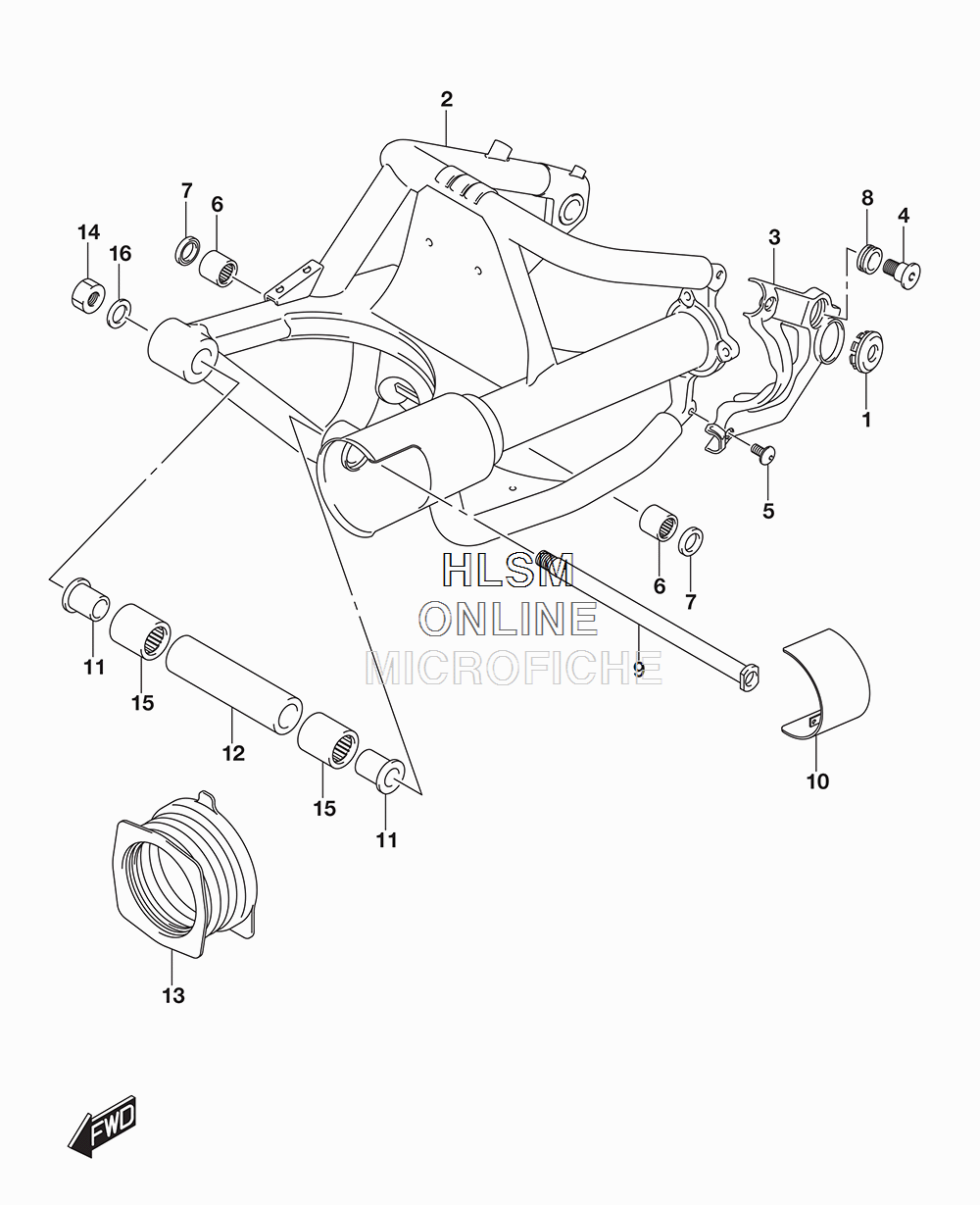

REAR SWINGARM для Suzuki VZ1500 M90 - 2017 года выпуска
-
№АртикулНазвание
-
141899-42F10 CAP, RR SWINGARM COVERCAP, RR SWINGARM COVER
-
261100-06J00-019 SWINGARM, REAR (019 - BLACK)SWINGARM, REAR (019 - BLACK)
-
361126-40H00-019 COVER, RR SWINGARM (LH) (019 - BLACK)COVER, RR SWINGARM (LH) (019 - BLACK)
-
461127-41F20 BOLT, RR SWINGARM COVER RRBOLT, RR SWINGARM COVER RR
-
509139-08007 SCREW (8X16)SCREW (8X16)
-
609263-22071 BEARING (22X29X25)BEARING (22X29X25)
-
709285-22001 OIL SEAL (22X29X4)OIL SEAL (22X29X4)
-
809320-22003 CUSHIONCUSHION
-
961211-22D00 SHAFT, RR SWINGARM PIVOTSHAFT, RR SWINGARM PIVOT
-
1061230-40H00 COVER, RR SWINGARM PIVOT (LH)COVER, RR SWINGARM PIVOT (LH)
-
1161251-31E00 SPACER, RR SWINGARM BEARINGSPACER, RR SWINGARM BEARING
-
1261280-48G01 SPACER, RR SWINGARM CTRSPACER, RR SWINGARM CTR
-
1361372-40H10 BOOT, PROPELLER SHAFTBOOT, PROPELLER SHAFT
-
1409159-18007 NUTNUT
-
1509263-25059 BEARING (25X33X35)BEARING (25X33X35)
-
1608322-0118B WASHERWASHER
