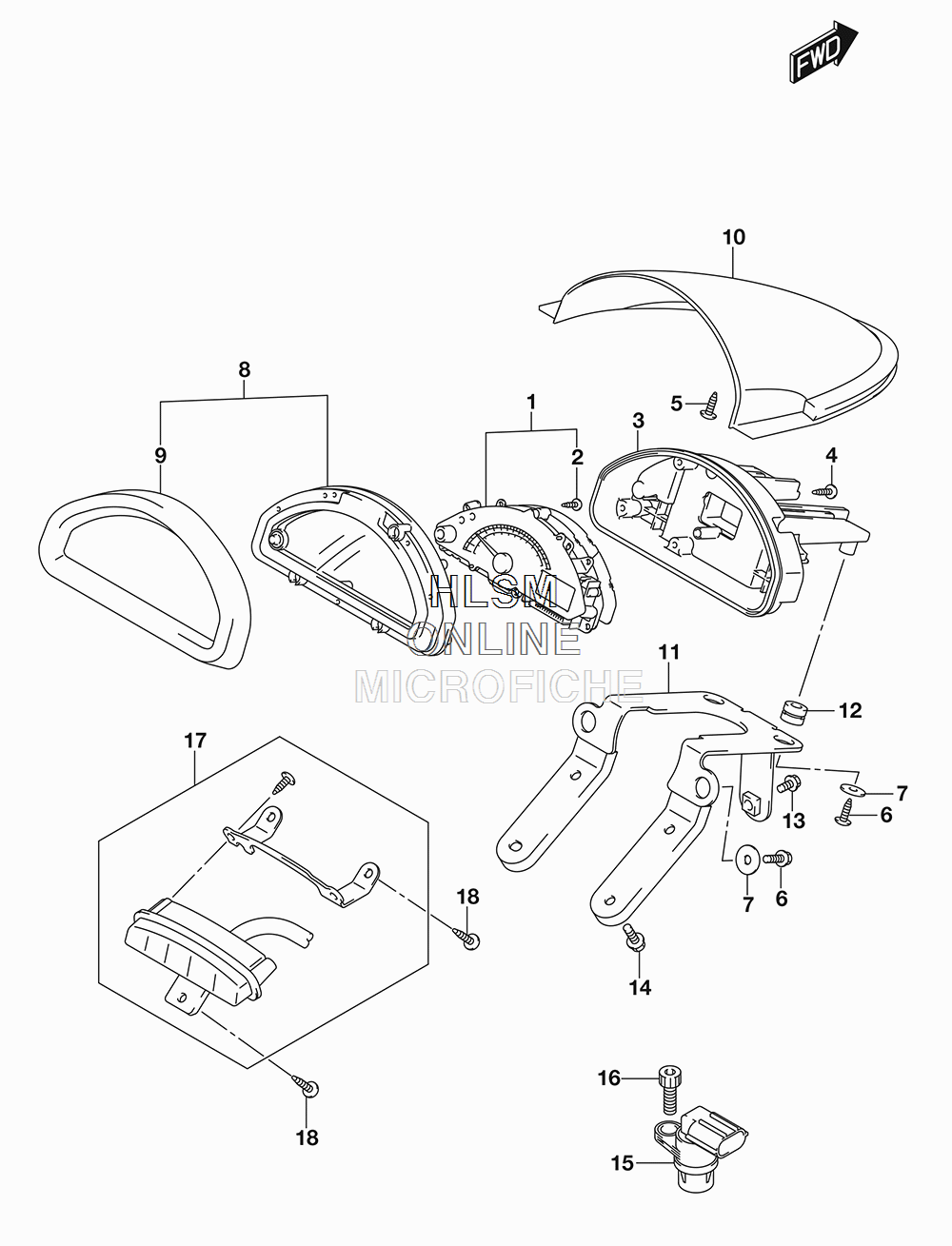

SPEEDOMETER (EXCEPT CALIF.) для Suzuki VZ1500 M90 - 2017 года выпуска
-
№АртикулНазвание
-
134120-40H10 COMBINATION METER (MPH/KILO)COMBINATION METER (MPH/KILO)
-
234149-03G00 ...SCREW (3X14)...SCREW (3X14)
-
334111-40H00 COVER, CASECOVER, CASE
-
434149-03G00 SCREW (3X14)SCREW (3X14)
-
534149-17E10 SCREW (4X14)SCREW (4X14)
-
634149-40H00 SCREW (5X16)SCREW (5X16)
-
734189-40H00 WASHER (5.2X20X1.0)WASHER (5.2X20X1.0)
-
834150-40H20 UPPER CASEUPPER CASE
-
934256-40H20 ...UPPER COVER...UPPER COVER
-
1034257-40H20 LOWER COVERLOWER COVER
-
1134952-40H00 BRACKETBRACKET
-
1234955-40H00 DAMPERDAMPER
-
1301550-0610A BOLTBOLT
-
1407120-0612B BOLTBOLT
-
1534990-31G01 SENSOR, SPEEDSENSOR, SPEED
-
1607130-0616A BOLTBOLT
-
1736380-40H01 BOX ASSY, PILOT LAMPBOX ASSY, PILOT LAMP
-
1803541-0512A SCREWSCREW
