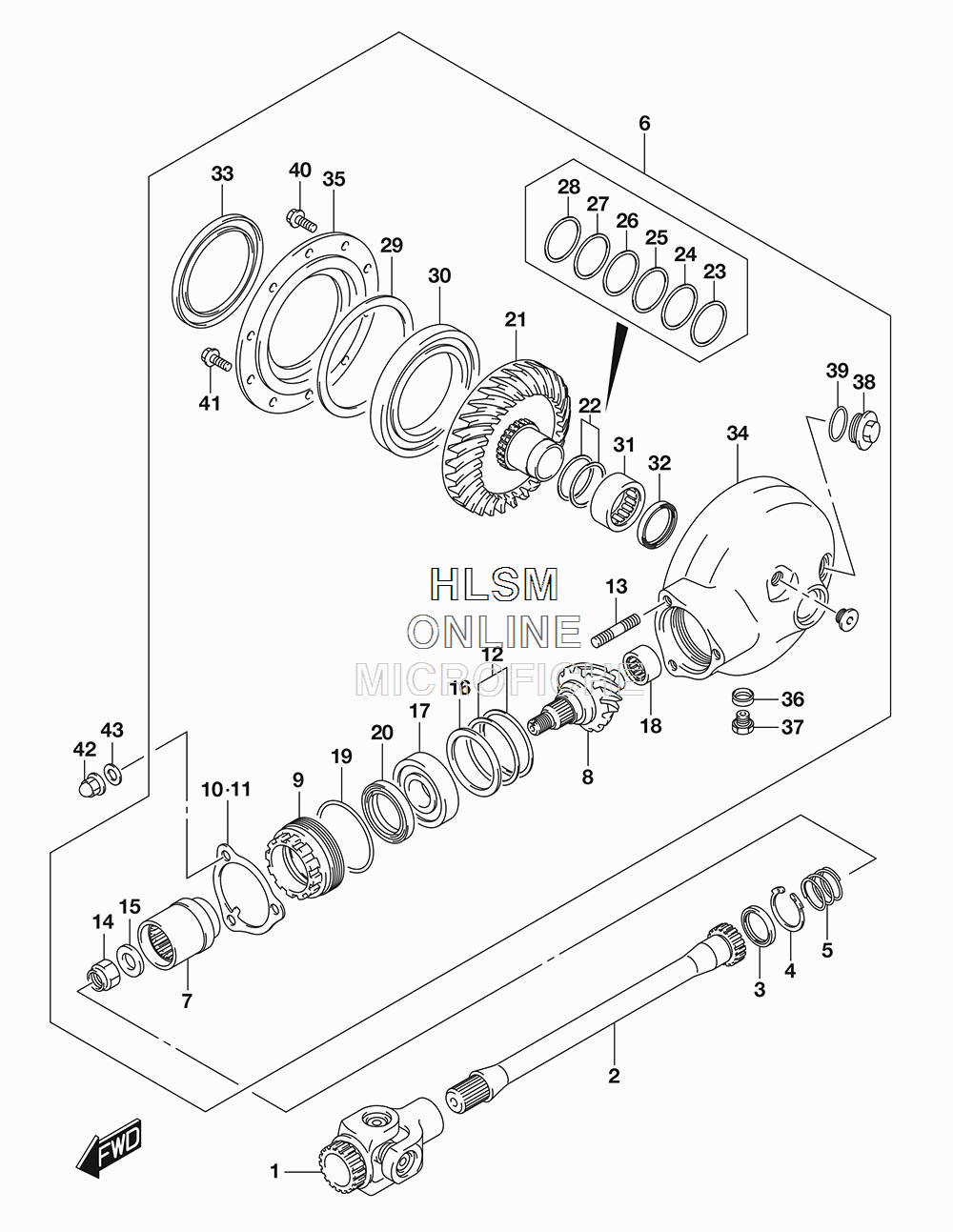

PROPELLER SHAFT/FINAL DRIVE GEAR для Suzuki VZ1500 M90 - 2017 года выпуска

№

Артикул

Название
1

27100-48G20 YOKE, UNIVERSAL JOINT

YOKE, UNIVERSAL JOINT

50 180 ₽
2

27151-40H00 SHAFT, PROPELLER (L:434)

SHAFT, PROPELLER (L:434)

0 ₽
3

09283-30026 OIL SEAL (30X40.5X5.5)

OIL SEAL (30X40.5X5.5)

1 820 ₽
4

09381-40003 CIRCLIP

CIRCLIP

810 ₽
5

09440-30008 SPRING

SPRING

530 ₽
6

27300-48860-019 GEAR & CASE SET, FINAL BEVEL (019 - BLACK)

GEAR & CASE SET, FINAL BEVEL (019 - BLACK)

13 344 500 ₽
7

27172-24A00 ...COUPLING, FINAL DRIVE GEAR

...COUPLING, FINAL DRIVE GEAR

8 880 ₽
8

27311-24A10 ...GEAR, FINAL DRIVE BEVEL (NT:12)

...GEAR, FINAL DRIVE BEVEL (NT:12)

45 220 ₽
9

27312-24A02 ...STOPPER, FINAL DRIVE BEARING

...STOPPER, FINAL DRIVE BEARING

10 600 ₽
10

27313-38B00 ...PLATE, BEARING STOPPER

...PLATE, BEARING STOPPER

1 050 ₽
11

27313-38B10 ...PLATE, BEARING STOPPER

...PLATE, BEARING STOPPER

1 050 ₽
12

27445-24810 ...SHIM SET, FINAL DRIVE GEAR (T:0.30/0.35/0.40/0.50/0.60)

...SHIM SET, FINAL DRIVE GEAR (T:0.30/0.35/0.40/0.50/0.60)

4 030 ₽
13

09108-10106 ...STUD BOLT

...STUD BOLT

650 ₽
14

09159-16003 ...NUT

...NUT

600 ₽
15

09160-16029 ...WASHER (16X29X4)

...WASHER (16X29X4)

910 ₽
16

09160-54001 ...WASHER (54X68X1.5)

...WASHER (54X68X1.5)

1 440 ₽
17

09262-28023 ...BEARING (28X68X18)

...BEARING (28X68X18)

18 290 ₽
18

09263-20062 ...BEARING (20X34X18)

...BEARING (20X34X18)

6 720 ₽
19

09280-64003 ...O RING (D:3.1,ID:63.9)

...O RING (D:3.1,ID:63.9)

990 ₽
20

09283-47002 ...OIL SEAL (45.5X58X7)

...OIL SEAL (45.5X58X7)

2 510 ₽
21

27320-48G00 ...GEAR, FINAL DRIVEN

...GEAR, FINAL DRIVEN

82 460 ₽
22

27326-48811 ...SHIM SET, FINAL DRIVEN, (LH) (T:1.25/1.35/1.45)

...SHIM SET, FINAL DRIVEN, (LH) (T:1.25/1.35/1.45)

14 740 ₽
23

09181-40011 ......SHIM (40X46.8X0.95)

......SHIM (40X46.8X0.95)

610 ₽
24

09181-40013 ......SHIM (40X46.8X1.05)

......SHIM (40X46.8X1.05)

780 ₽
25

09181-40014 ......SHIM (40X46.8X1.1)

......SHIM (40X46.8X1.1)

1 130 ₽
26

09181-40176 ......SHIM (40X50X1.2)

......SHIM (40X50X1.2)

1 020 ₽
27

09181-40182 ......SHIM (40X50X1.4)

......SHIM (40X50X1.4)

1 140 ₽
28

09181-40212 ......SHIM (40X50X1.5)

......SHIM (40X50X1.5)

0 ₽
29

27327-38810 ...SHIM SET, FINAL DRIVE, (RH) (T:0.35/0.40/0.50/0.60)

...SHIM SET, FINAL DRIVE, (RH) (T:0.35/0.40/0.50/0.60)

15 580 ₽
30

09262-85001 ...BEARING (85X130X14)

...BEARING (85X130X14)

27 870 ₽
31

09263-40016 ...BEARING (40X50X20)

...BEARING (40X50X20)

9 680 ₽
32

09283-38026 ...OIL SEAL (38X46X6) (LH)

...OIL SEAL (38X46X6) (LH)

2 750 ₽
33

09289-85001 ...OIL SEAL (85X110X11) (RH)

...OIL SEAL (85X110X11) (RH)

7 040 ₽
34

27450-48G70-019 ...CASE, FINAL GEAR (019 - BLACK)

...CASE, FINAL GEAR (019 - BLACK)

4 371 900 ₽
35

27461-38B00 ...CASE, FINAL GEAR BEARING

...CASE, FINAL GEAR BEARING

34 310 ₽
36

09168-14002 ...GASKET (13.8X18.8X4.8)

...GASKET (13.8X18.8X4.8)

290 ₽
37

09247-14002 ...PLUG (MAGNETO)

...PLUG (MAGNETO)

910 ₽
38

09259-30007 ...PLUG (30X9)

...PLUG (30X9)

3 110 ₽
39

09280-26006 ...O RING (D:3.1,ID:26.4)

...O RING (D:3.1,ID:26.4)

480 ₽
40

01550-0825A ...BOLT

...BOLT

400 ₽
41

01550-1025A ...BOLT

...BOLT

530 ₽
42

09159-10026 NUT

NUT

1 080 ₽
43

09164-10008 WASHER

WASHER

290 ₽
