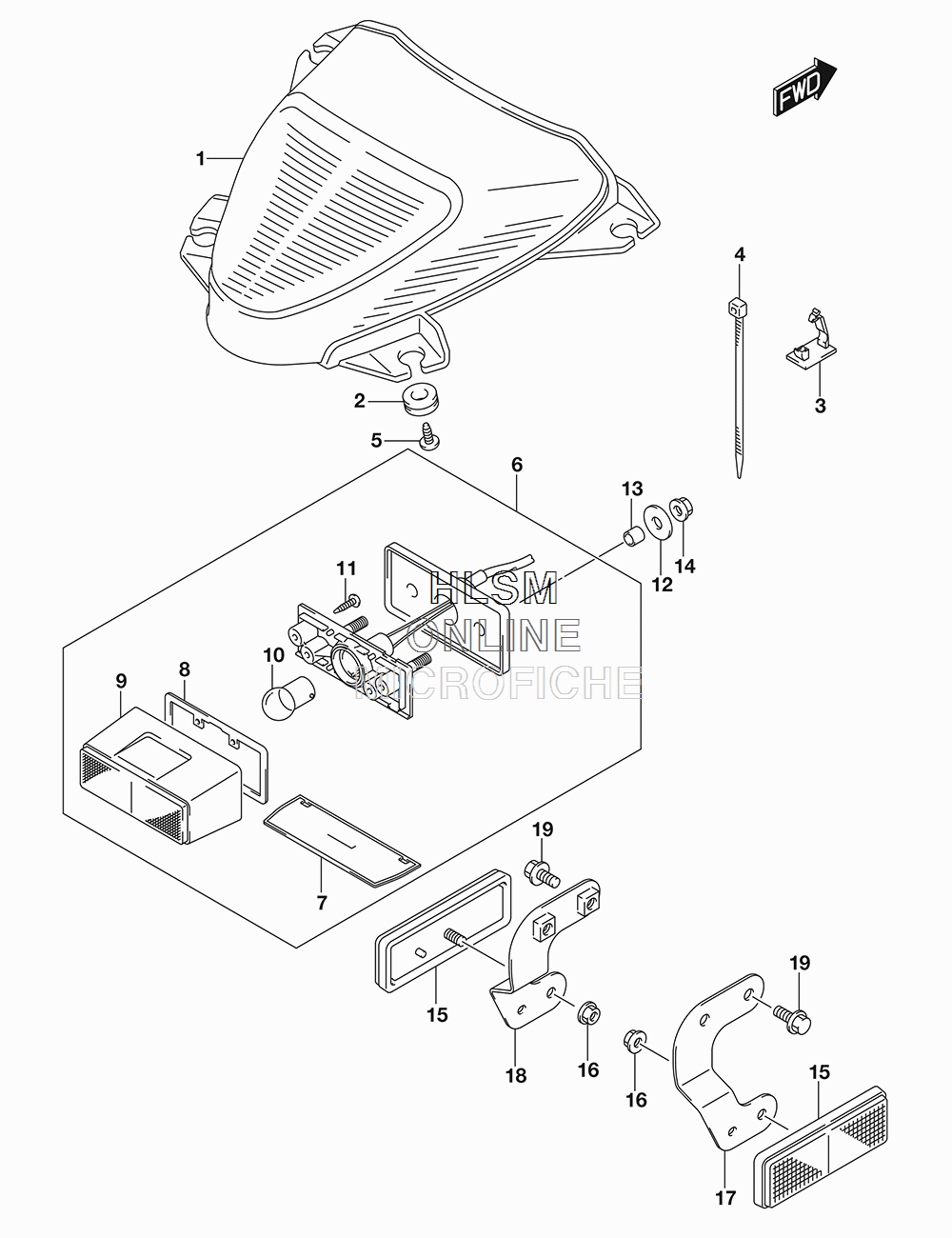

TAILLIGHT/TURN SIGNAL ASSY. для Suzuki VZ1500 M90 - 2017 года выпуска
-
№АртикулНазвание
-
135710-40H00 LAMP ASSY, REAR COMBINATIONLAMP ASSY, REAR COMBINATION
-
209320-10054 CUSHIONCUSHION
-
309403-04310 CLAMPCLAMP
-
409407-14407 CLAMP (L:145)CLAMP (L:145)
-
503541-0512A SCREWSCREW
-
635910-41G02 LAMP ASSY, LICENSELAMP ASSY, LICENSE
-
735912-41G01 ...LENS, LICENSE...LENS, LICENSE
-
835913-41G00 ...GASKET...GASKET
-
935917-41G00 ...COVER, LICENSE LAMP...COVER, LICENSE LAMP
-
1009471-12140 ...BULB (12V,5W)...BULB (12V,5W)
-
1103211-0416A ...SCREW...SCREW
-
1209160-06077 WASHER (6.5X20X1.2)WASHER (6.5X20X1.2)
-
1309180-06261 SPACER (6.5X9X8)SPACER (6.5X9X8)
-
1408316-1006A NUTNUT
-
1535970-07F01 REFLECTOR ASSY, REAR SIDEREFLECTOR ASSY, REAR SIDE
-
1608316-1005A NUTNUT
-
1735975-40H00 BRACKET, RR SIDE RR (RH)BRACKET, RR SIDE RR (RH)
-
1835976-40H00 BRACKET, RR SIDE RR (LH)BRACKET, RR SIDE RR (LH)
-
1902162-0612A SCREWSCREW
