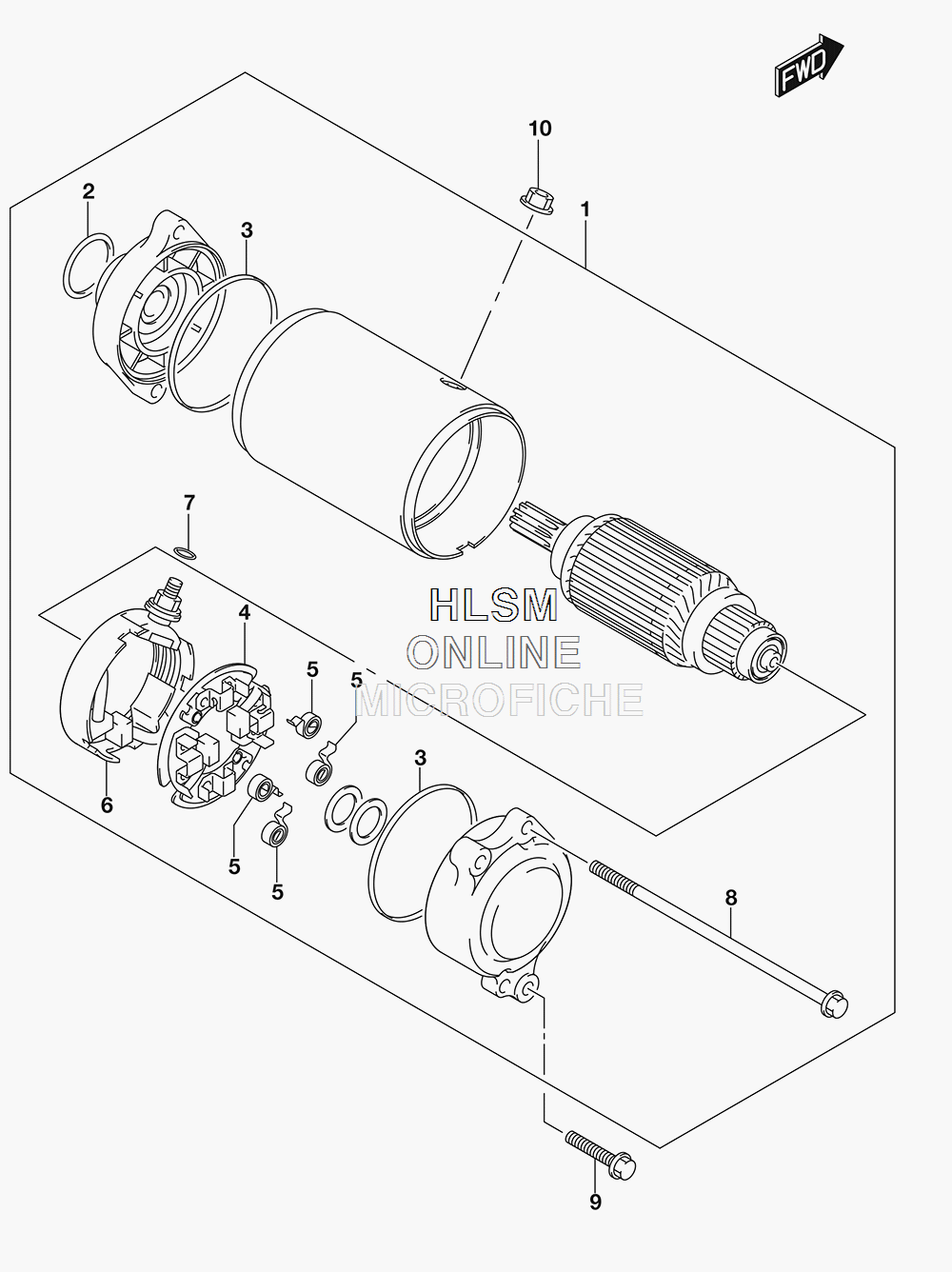

STARTING MOTOR для Suzuki VZ1500 M90 - 2017 года выпуска
-
№АртикулНазвание
-
131100-40H01 MOTOR ASSY, STARTINGMOTOR ASSY, STARTING
-
231156-98E00 ...O RING (D:3.1,ID:24.4)...O RING (D:3.1,ID:24.4)
-
331264-31300 ...O RING...O RING
-
431132-38B00 ...HOLDER SET, BRUSH...HOLDER SET, BRUSH
-
531135-38B00 ...SPRING, BRUSH...SPRING, BRUSH
-
631130-38B00 ...TERMINAL SET, BRUSH...TERMINAL SET, BRUSH
-
731143-49040 ...O RING...O RING
-
831281-24B10 ...SET BOLT...SET BOLT
-
901547-0625A BOLTBOLT
-
1008361-3506A NUTNUT
