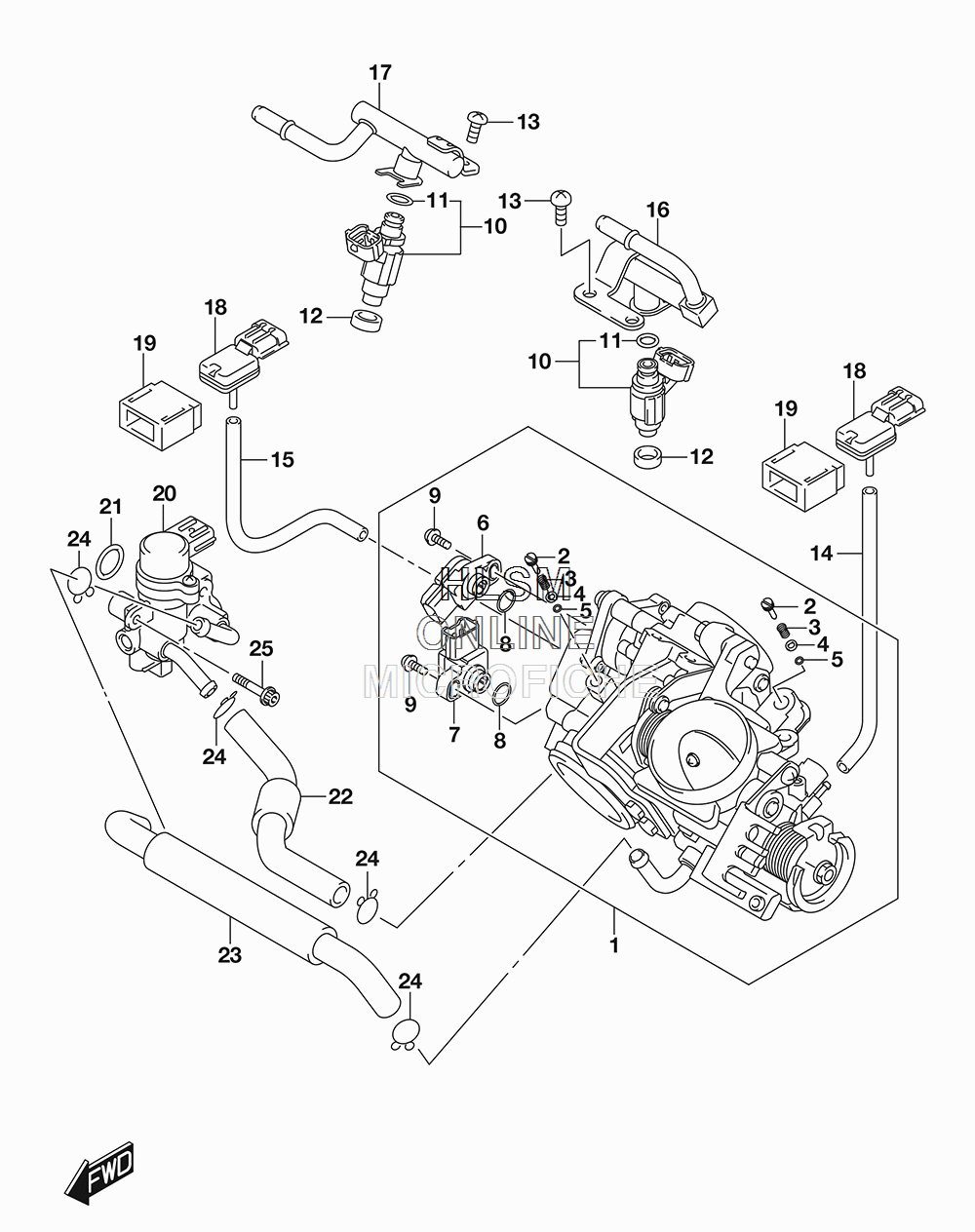

CARBURETOR - THROTTLE BODY (CANADA) для Suzuki VZ1500 M90 - 2017 года выпуска
-
№АртикулНазвание
-
113405-40H00 BODY, THROTTLEBODY, THROTTLE
-
213269-33E00 ...ADJUSTER...ADJUSTER
-
313268-48700 ...SPRING...SPRING
-
413606-47A00 ...WASHER...WASHER
-
513295-29900 ...O RING...O RING
-
613580-48G10 ...SENSOR ASSY...SENSOR ASSY
-
713580-48G00 ...SENSOR ASSY...SENSOR ASSY
-
813575-29G00 ...O RING...O RING
-
913605-02F00 ...SCREW...SCREW
-
1015710-48G00 INJECTOR ASSYINJECTOR ASSY
-
1115717-58B00 ...O RING...O RING
-
1215722-29G00 SEALSEAL
-
1313602-06148 SCREWSCREW
-
1413683-48G00 HOSEHOSE
-
1513683-40H10 HOSEHOSE
-
1615730-40H00 PIPE ASSY, DELIVERYPIPE ASSY, DELIVERY
-
1715730-40H10 PIPE ASSY, DELIVERYPIPE ASSY, DELIVERY
-
1818591-41F00 SENSOR, PRESSURESENSOR, PRESSURE
-
1918595-33G00 HOLDERHOLDER
-
2018117-40H01 VALVE, ISCVALVE, ISC
-
2109280-14011 O RING (D:2.5,ID:13.8)O RING (D:2.5,ID:13.8)
-
2213697-40H00 HOSE, ISC VALVE (RH)HOSE, ISC VALVE (RH)
-
2313698-40H00 HOSE, ISC VALVE (LH)HOSE, ISC VALVE (LH)
-
2409401-13102 CLIPCLIP
-
2507120-0525A SCREWSCREW
