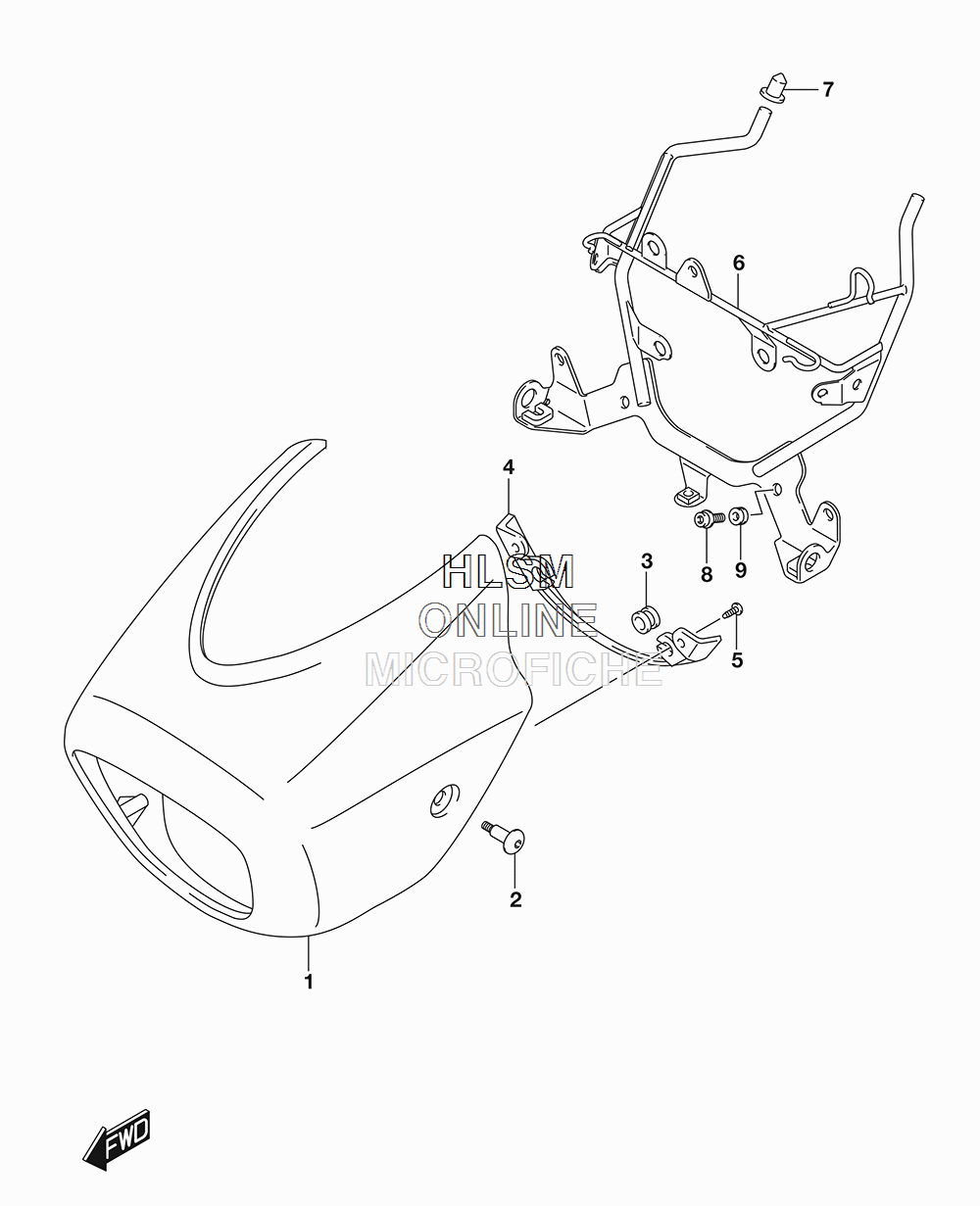

HEADLAMP HOUSING для Suzuki VZ1500 M90 - 2017 года выпуска
-
№АртикулНазвание
-
1-151811-40H00-YVB COVER, HEADLAMP (YVB - BLACK)COVER, HEADLAMP (YVB - BLACK)
-
1-251811-40H00-YYG COVER, HEADLAMP (YYG - RED)COVER, HEADLAMP (YYG - RED)
-
209139-06191 SCREW (6X22)SCREW (6X22)
-
309320-09039 CUSHIONCUSHION
-
451812-40H00 PLATEPLATE
-
503541-0516A SCREWSCREW
-
651850-40H10 BRACE, COVERBRACE, COVER
-
751831-21D00 CUSHIONCUSHION
-
807120-0816A BOLTBOLT
-
909320-06016 CUSHIONCUSHION
