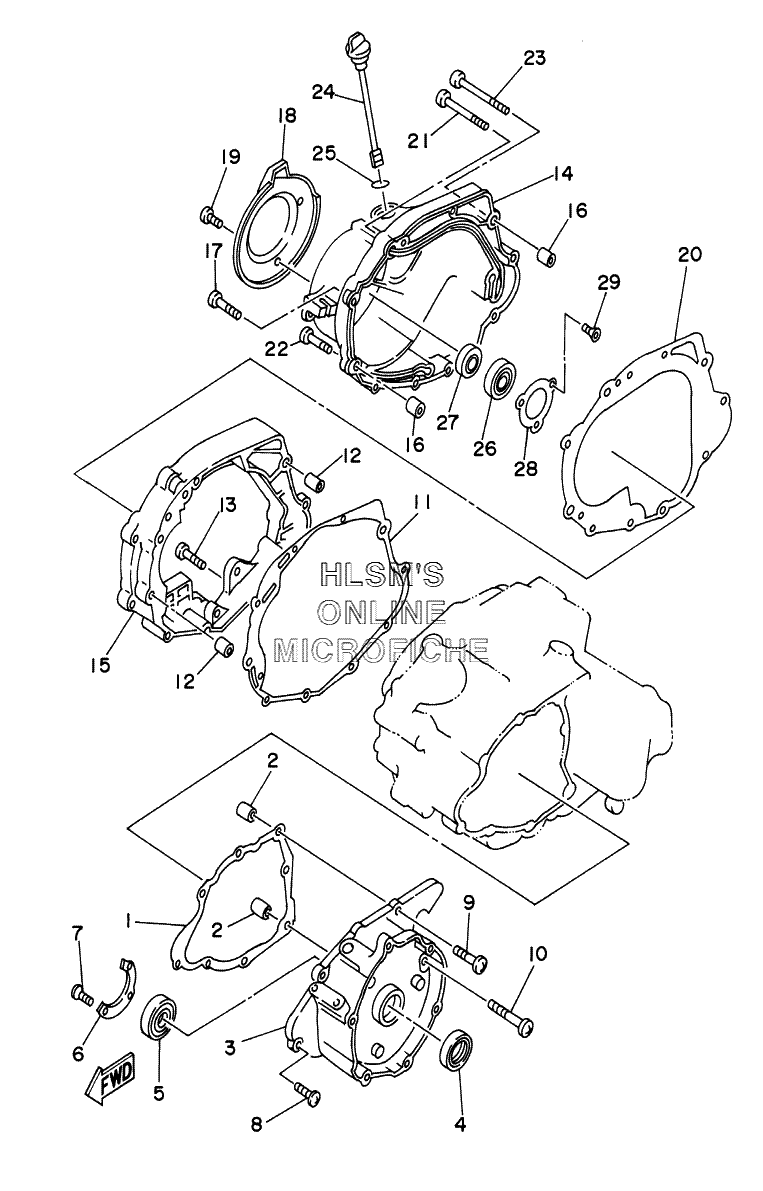

CRANKCASE - COVER для Yamaha BEAR TRACKER YFM250XN (4XEA) - 2001 года выпуска
-
№АртикулНазвание
-
14BD-15451-01-00 GASKET, CRANKCASE COVER 1GASKET, CRANKCASE COVER 1
-
299530-12016-00 ...PIN, DOWEL...PIN, DOWEL
-
34BD-15787-10-00 ADAPTORADAPTOR
-
493103-28141-00 OIL SEALOIL SEAL
-
593306-07801-00 BEARINGBEARING
-
621V-15719-00-00 WASHER, THRUSTWASHER, THRUST
-
798707-05016-00 SCREW, FLAT HEADSCREW, FLAT HEAD
-
898507-06025-00 SCREW, PAN HEADSCREW, PAN HEAD
-
998507-06040-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1098507-06060-00 SCREW, PAN HEADSCREW, PAN HEAD
-
114BD-15462-00-00 GASKET, CRANKCASE COVER 3GASKET, CRANKCASE COVER 3
-
1299530-12016-00 ...PIN, DOWEL...PIN, DOWEL
-
1398507-06040-00 SCREW, PAN HEADSCREW, PAN HEAD
-
144BD-15431-02-00 COVER, CRANKCASE 3COVER, CRANKCASE 3
-
154BD-15317-00-00 SPACER, ENGINE MOUNTSPACER, ENGINE MOUNT
-
1699530-12016-00 ...PIN, DOWEL...PIN, DOWEL
-
1798507-06040-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1821V-15499-00-00 PROTECTOR, COVERPROTECTOR, COVER
-
1998907-06014-00 SCREW, BINDSCREW, BIND
-
204BD-15463-01-00 GASKET, COVER CRANKCASEGASKET, COVER CRANKCASE
-
2198507-06070-00 SCREW, PAN HEADSCREW, PAN HEAD
-
2298507-06040-00 SCREW, PAN HEADSCREW, PAN HEAD
-
2398507-06080-00 SCREW, PAN HEADSCREW, PAN HEAD
-
241UY-15362-01-00 PLUG, OIL LEVELPLUG, OIL LEVEL
-
2593210-19123-00 O-RINGO-RING
-
2693306-20313-00 BEARING (B6203C4)BEARING (B6203C4)
-
2793101-17113-00 OIL SEALOIL SEAL
-
2821V-15381-00-00 PLATE, BEARING COVERPLATE, BEARING COVER
-
2998707-06018-00 SCREW, FLAT HEADSCREW, FLAT HEAD
