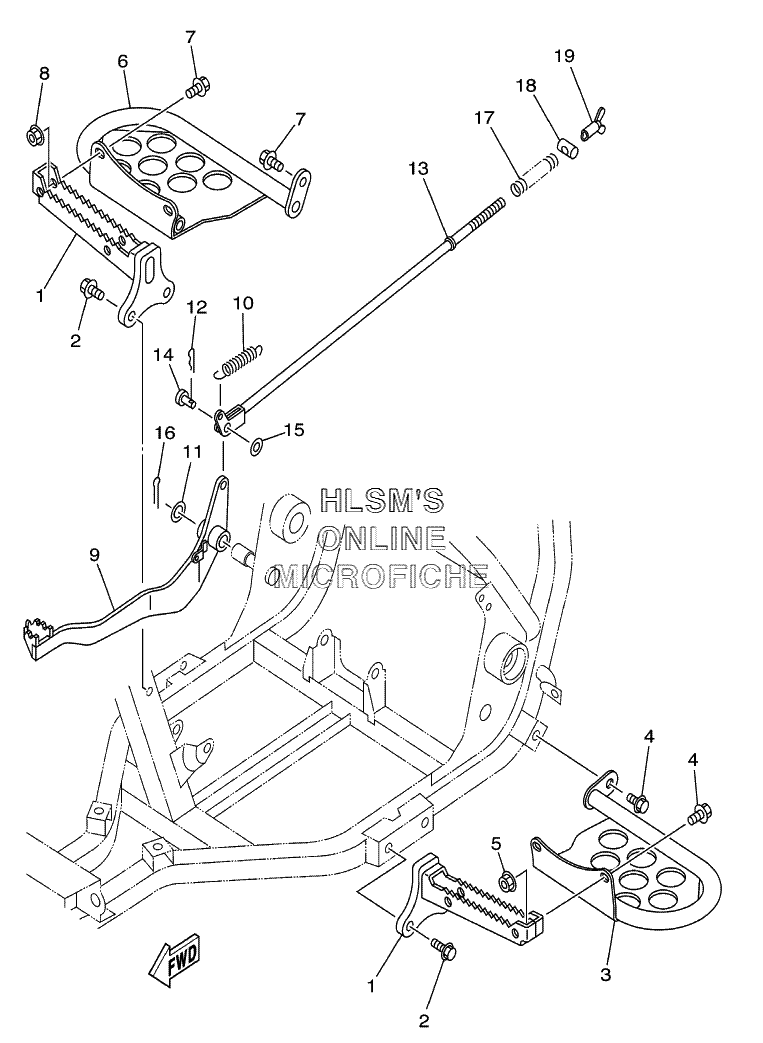

FOOTREST W/BRAKE PEDAL для Yamaha BEAR TRACKER YFM250XN (4XEA) - 2001 года выпуска
-
№АртикулНазвание
-
14XE-F7411-00-00 FOOTREST 1FOOTREST 1
-
29581P-10022-00 BOLT, FLANGEBOLT, FLANGE
-
34XE-F7445-00-00 PLATE 1PLATE 1
-
49581P-08016-00 BOLT, FLANGEBOLT, FLANGE
-
595707-08500-00 NUT, FLANGENUT, FLANGE
-
64XE-F7446-00-00 PLATE 2PLATE 2
-
79581P-08016-00 BOLT, FLANGEBOLT, FLANGE
-
895707-08500-00 NUT, FLANGENUT, FLANGE
-
94XE-F7211-00-00 PEDAL, BRAKEPEDAL, BRAKE
-
1090506-18224-00 SPRING, TENSIONSPRING, TENSION
-
1190201-15797-00 WASHER, PLATEWASHER, PLATE
-
1291401-40030-00 PIN, COTTERPIN, COTTER
-
134XE-27231-00-00 ROD, BRAKEROD, BRAKE
-
1490240-06076-00 PIN, CLEVISPIN, CLEVIS
-
1592907-06200-00 WASHERWASHER
-
1691401-20012-00 PIN, COTTERPIN, COTTER
-
1790501-10245-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
1890249-12008-00 PINPIN
-
1920E-26343-00-00 NUT, ADJUSTINGNUT, ADJUSTING
