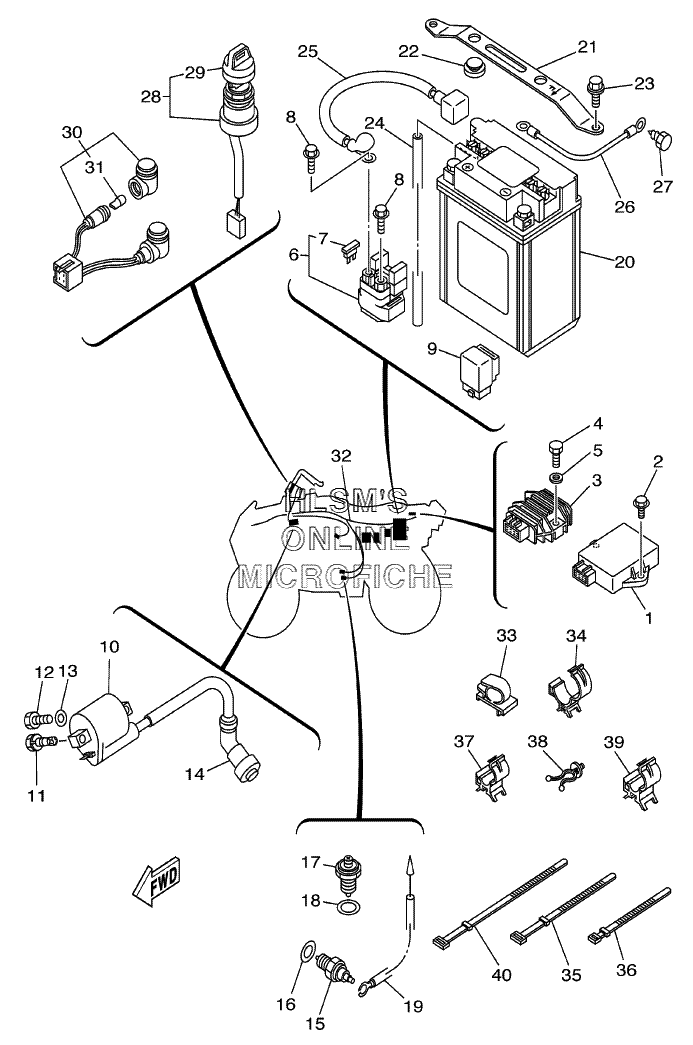

ELECTRICAL для Yamaha BEAR TRACKER YFM250XN (4XEA) - 2001 года выпуска
-
№АртикулНазвание
-
14XE-85540-00-00 C.D.IUNIT ASSY.C.D.IUNIT ASSY.
-
295807-06016-00 BOLT, FLANGEBOLT, FLANGE
-
35GT-81960-00-00 RECTIFIER & REGULATOR ASSY.RECTIFIER & REGULATOR ASSY.
-
497007-06020-00 BOLTBOLT
-
592907-06600-00 WASHER, PLATEWASHER, PLATE
-
64XE-81940-00-00 STARTER RELAY ASSY.STARTER RELAY ASSY.
-
72GH-82151-00-00 ...FUSE (20A-BL)...FUSE (20A-BL)
-
89502P-06008-00 BOLT, FLANGEBOLT, FLANGE
-
91RL-81950-92-00 RELAY ASSYRELAY ASSY
-
104KJ-82310-10-00 IGNITION COIL ASSY.IGNITION COIL ASSY.
-
1190109-06873-00 BOLTBOLT
-
1297007-06020-00 BOLTBOLT
-
1392907-06600-00 WASHER, PLATEWASHER, PLATE
-
141UY-82370-20-00 PLUG CAP ASSY.PLUG CAP ASSY.
-
153GB-82540-01-00 NEUTRAL SWITCH ASSY.NEUTRAL SWITCH ASSY.
-
1690430-10148-00 GASKETGASKET
-
174KD-82540-00-00 REVERSE SWITCH ASSY.REVERSE SWITCH ASSY.
-
1890201-12790-00 WASHER, PLATEWASHER, PLATE
-
194BD-82507-00-00 WIRE, LEADWIRE, LEAD
-
20BTY-YB14A-A2-00 BATTERY ASSY. (YB 14A-A2)BATTERY ASSY. (YB 14A-A2)
-
214XE-H2128-00-00 BRACKET, BATTERYBRACKET, BATTERY
-
22128-27114-00-00 STOPPER, MAIN STANDSTOPPER, MAIN STAND
-
2395807-06020-00 BOLT, FLANGEBOLT, FLANGE
-
244XE-H2112-00-00 PIPE, BREATHERPIPE, BREATHER
-
254XE-82115-00-00 WIRE, PLUS LEADWIRE, PLUS LEAD
-
264XE-82116-00-00 WIRE, MINUS LEADWIRE, MINUS LEAD
-
279770P-60416-00 SCREW, TAPPINGSCREW, TAPPING
-
284BD-82510-11-00 MAIN SWITCH ASSYMAIN SWITCH ASSY
-
293HN-82579-00-00 ...CAP, KEY...CAP, KEY
-
304XE-83530-00-00 PILOT LIGHT ASSYPILOT LIGHT ASSY
-
315GH-83516-00-00 ...BULB (14V-1.7W)...BULB (14V-1.7W)
-
324XE-82590-20-00 WIRE HARNESS ASSY.WIRE HARNESS ASSY.
-
3390464-13831-00 CLAMPCLAMP
-
3490464-20835-00 CLAMPCLAMP
-
3590464-48837-00 CLAMPCLAMP
-
363TB-83936-00-00 BAND, SWITCH CORDBAND, SWITCH CORD
-
3790464-08834-00 CLAMPCLAMP
-
3890464-12836-00 CLAMPCLAMP
-
3990464-10842-00 CLAMPCLAMP
-
4090464-40825-00 CLAMPCLAMP
-
4190890-56001-00 ATV BLANK KEY (TYPE-A) (NO PIC)ATV BLANK KEY (TYPE-A) (NO PIC)
-
4290890-56002-00 ATV BLANK KEY (TYPE-B) (NO PIC)ATV BLANK KEY (TYPE-B) (NO PIC)
