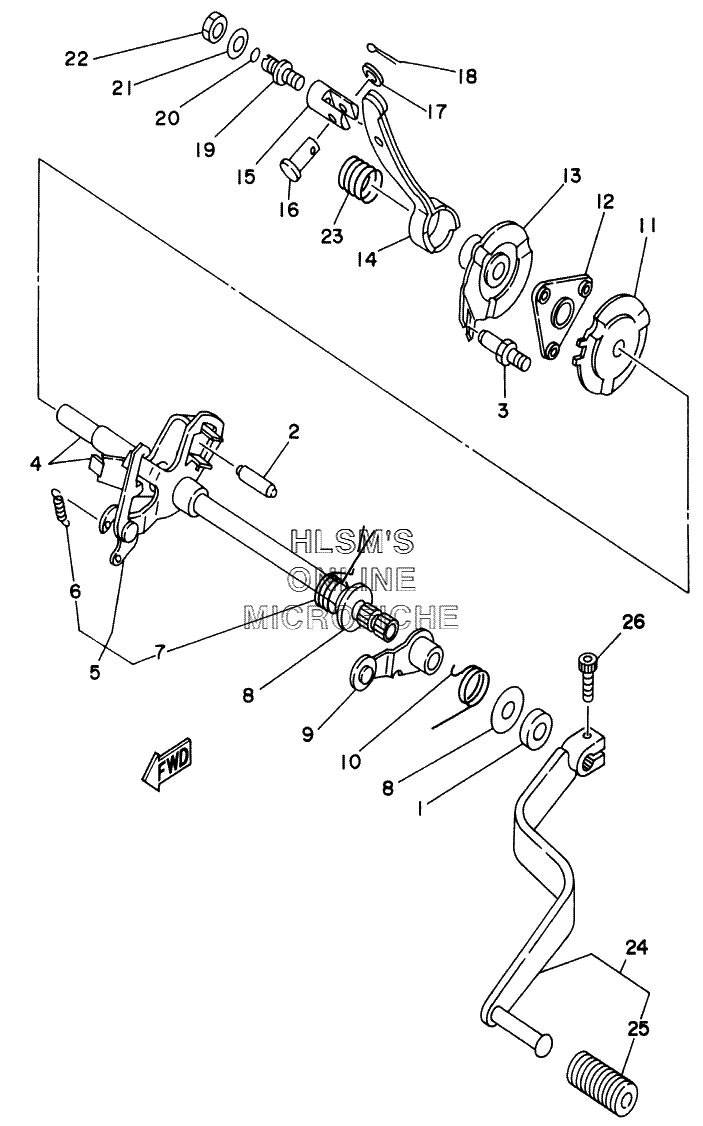

SHIFT SHAFT для Yamaha BEAR TRACKER YFM250XN (4XEA) - 2001 года выпуска
-
№АртикулНазвание
-
193102-12106-00 OIL SEAL (SD 12-22-5 HS)OIL SEAL (SD 12-22-5 HS)
-
293608-30152-00 PIN, DOWELPIN, DOWEL
-
321V-18177-00-00 BOLT, STOPPERBOLT, STOPPER
-
43GH-18103-01-00 SHIFT SHAFT COMP.SHIFT SHAFT COMP.
-
521V-18120-00-00 SHIFT LEVER ASSY.SHIFT LEVER ASSY.
-
690506-08227-00 ...SPRING, TENSION...SPRING, TENSION
-
790508-29570-00 ...SPRING, TORSION...SPRING, TORSION
-
890201-12588-00 WASHER, PLATEWASHER, PLATE
-
94G0-18140-00-00 STOPPER LEVER ASSY.STOPPER LEVER ASSY.
-
1090508-26539-00 SPRING, TORSIONSPRING, TORSION
-
1124W-18179-00-00 GUIDEGUIDE
-
1221V-18181-00-00 HOLDER, PAWLHOLDER, PAWL
-
1324W-18104-00-00 SHIFT GUIDE COMP.SHIFT GUIDE COMP.
-
142HT-1817A-00-00 ARM, SHIFT 3ARM, SHIFT 3
-
1521V-18126-00-00 PIN, LEVERPIN, LEVER
-
1621V-18118-00-00 PIN, JOINTPIN, JOINT
-
1792907-08600-00 WASHERWASHER
-
1891401-16012-00 PIN, COTTERPIN, COTTER
-
1921V-18127-00-00 STOPPER, SCREWSTOPPER, SCREW
-
2093210-07590-00 O-RINGO-RING
-
2190201-08093-00 WASHER, PLATEWASHER, PLATE
-
2295307-08700-00 NUTNUT
-
2390501-16768-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
244BD-18110-11-00 SHIFT PEDAL ASSY.SHIFT PEDAL ASSY.
-
2522N-18113-00-00 ...COVER, SHIFT PEDAL...COVER, SHIFT PEDAL
-
269701P-06020-00 BOLTBOLT
