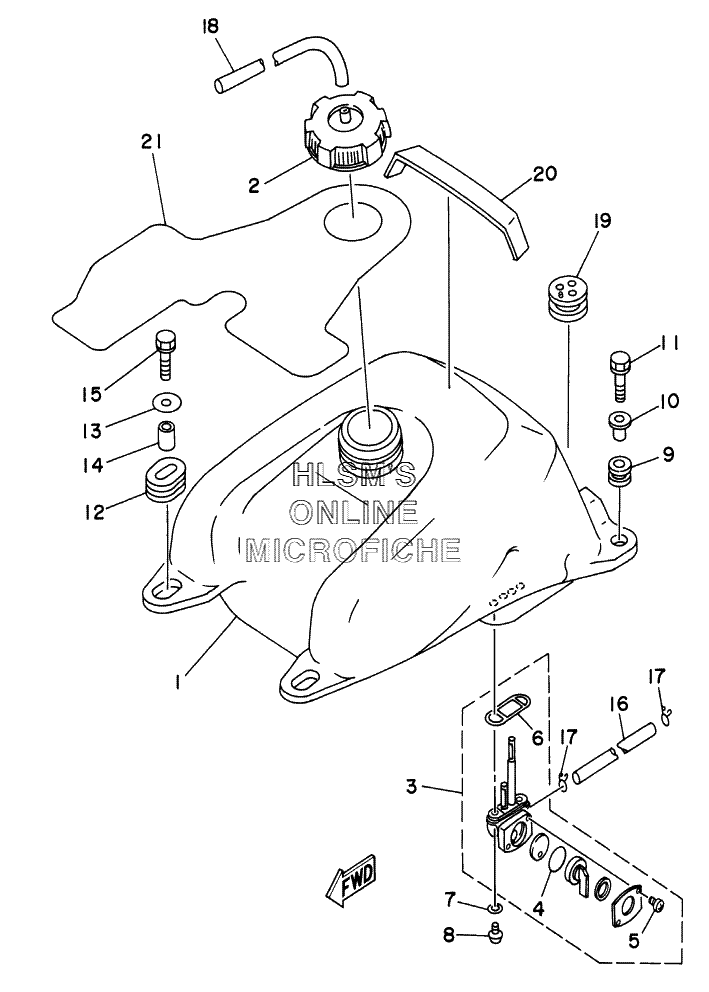

FUEL TANK для Yamaha BEAR TRACKER YFM250XN (4XEA) - 2001 года выпуска
-
№АртикулНазвание
-
14XE-F4110-00-00 FUEL TANK COMP.FUEL TANK COMP.
-
25MV-24610-00-00 CAP ASSYCAP ASSY
-
33JN-24500-00-00 FUEL COCK ASSY. 1FUEL COCK ASSY. 1
-
43AJ-24534-00-00 ...SEAL, COCK...SEAL, COCK
-
597801-03008-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
64X8-24512-00-00 ...GASKET...GASKET
-
790202-05193-00 WASHER, PLATEWASHER, PLATE
-
890149-06011-00 SCREW, SPEC'L SHAPESCREW, SPEC'L SHAPE
-
990480-18290-00 GROMMETGROMMET
-
1090387-066H4-00 COLLARCOLLAR
-
1190119-06831-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1290480-01400-00 GROMMETGROMMET
-
1390201-068P9-00 WASHER, PLATEWASHER, PLATE
-
1490387-07598-00 COLLARCOLLAR
-
1590119-06831-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
164XE-24311-00-00 PIPE, FUEL 1PIPE, FUEL 1
-
1790467-10008-00 CLIP, SCISSORCLIP, SCISSOR
-
1890445-084J2-00 HOSE (LENGTH 500)HOSE (LENGTH 500)
-
194BD-24339-00-00 GROMMETGROMMET
-
204XE-F4181-00-00 DAMPER, LOCATING 1DAMPER, LOCATING 1
-
214XE-F414H-00-00 DAMPER, PLATE 1DAMPER, PLATE 1
