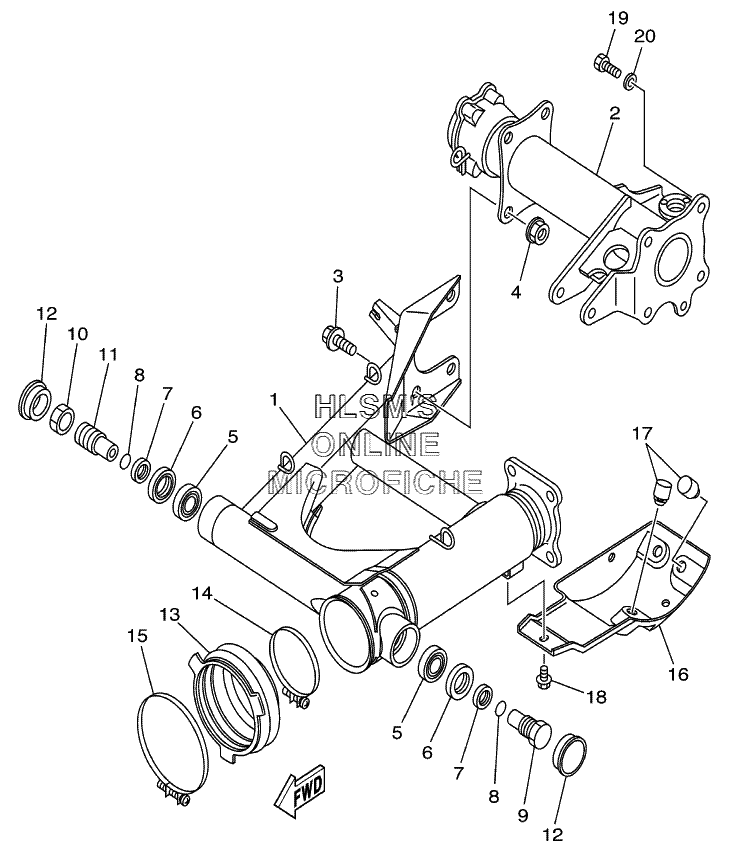

SUSPENSION - REAR ARM для Yamaha BEAR TRACKER YFM250XN (4XEA) - 2001 года выпуска
-
№АртикулНазвание
-
14XE-F2110-10-00 REAR ARM COMP.REAR ARM COMP.
-
24XE-G6540-10-00 REAR AXLE HOUSING COMPREAR AXLE HOUSING COMP
-
39581P-12025-00 BOLT, FLANGEBOLT, FLANGE
-
495707-12500-00 NUT, FLANGENUT, FLANGE
-
593332-000Y3-00 BEARINGBEARING
-
693102-25017-00 OIL SEALOIL SEAL
-
790387-1711G-00 COLLARCOLLAR
-
893210-17718-00 O-RINGO-RING
-
94XE-F2141-00-00 SHAFT, PIVOTSHAFT, PIVOT
-
104XE-F2143-00-00 NUTNUT
-
114XE-F214H-00-00 SHAFT, PIVOT 2SHAFT, PIVOT 2
-
1290338-34264-00 PLUGPLUG
-
1329U-22189-00-00 BOOT, RUBBERBOOT, RUBBER
-
1490460-85135-00 CLAMP, HOSECLAMP, HOSE
-
1590460-99228-00 CLAMP, HOSECLAMP, HOSE
-
164XE-F219X-00-00 COVERCOVER
-
17109-27114-00-00 STOPPER, MAIN STANDSTOPPER, MAIN STAND
-
1895807-08012-00 BOLT, FLANGEBOLT, FLANGE
-
1990105-10893-00 BOLT, FLANGEBOLT, FLANGE
-
2090201-108R2-00 WASHER, PLATEWASHER, PLATE
