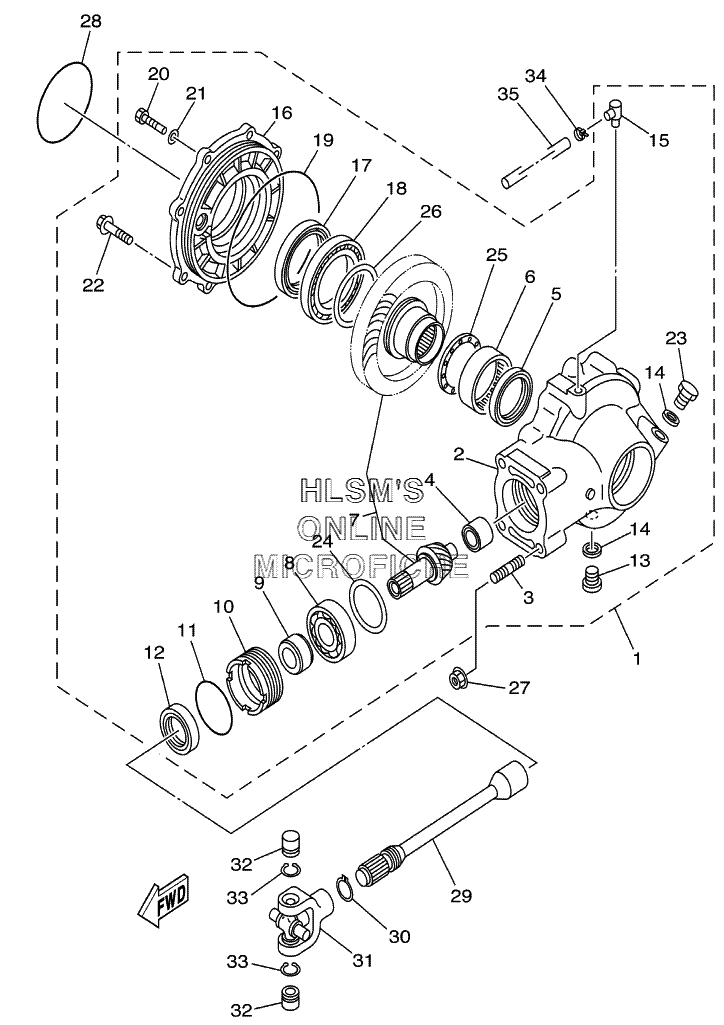

DIFFERENTIAL - REAR W/ DRIVE SHAFT для Yamaha BEAR TRACKER YFM250XN (4XEA) - 2001 года выпуска
-
№АртикулНазвание
-
14XE-G6101-00-00 REAR AXLE GEAR CASE ASSY.REAR AXLE GEAR CASE ASSY.
-
24XE-G6151-00-00 ...HOUSING, DRIVE SHAFT...HOUSING, DRIVE SHAFT
-
390116-10840-00 ...BOLT, STUD...BOLT, STUD
-
44XE-G6102-00-00 ...BEARING ASSY....BEARING ASSY.
-
593101-52116-00 ...OIL SEAL...OIL SEAL
-
693317-855Y9-00 ...BEARING...BEARING
-
74XE-Y4612-00-00 ...RING GEAR SET...RING GEAR SET
-
893306-305Y6-00 ...BEARING...BEARING
-
990387-255H9-00 ...COLLAR...COLLAR
-
1029U-46125-00-00 ...RETAINER, BEARING...RETAINER, BEARING
-
1193210-59531-00 ...O-RING...O-RING
-
1293101-38098-00 ...OIL SEAL, (S) TYPE...OIL SEAL, (S) TYPE
-
1390340-14046-00 ......PLUG, STRAIGHT SCREW......PLUG, STRAIGHT SCREW
-
14214-11198-01-00 ......GASKET......GASKET
-
152N4-15371-00-00 ......BREATHER......BREATHER
-
164XE-G6152-00-00 ...HOUSING, BEARING...HOUSING, BEARING
-
1793102-65386-00 ...OIL SEAL...OIL SEAL
-
1893316-013Y0-00 ...BEARING...BEARING
-
1993211-51749-00 ......O-RING......O-RING
-
209702P-08025-00 ...BOLT...BOLT
-
219290P-08600-00 ...WASHER...WASHER
-
229581P-10045-00 ...BOLT, FLANGE...BOLT, FLANGE
-
2390340-14029-00 ...PLUG, STRAIGHT SCREW...PLUG, STRAIGHT SCREW
-
244XE-E7537-15-00 ...SHIM, THRUST(T=0.15MM)...SHIM, THRUST(T=0.15MM)
-
244XE-E7537-30-00 ...SHIM, THRUST(T=0.30MM)...SHIM, THRUST(T=0.30MM)
-
244XE-E7537-40-00 ...SHIM, THRUST(T=0.40MM)...SHIM, THRUST(T=0.40MM)
-
244XE-E7537-45-00 ...SHIM, THRUST(T=0.45MM)...SHIM, THRUST(T=0.45MM)
-
244XE-E7537-50-00 ...SHIM, THRUST(T=0.50MM)...SHIM, THRUST(T=0.50MM)
-
244XE-E7537-60-00 ...SHIM, THRUST(T=0.60MM)...SHIM, THRUST(T=0.60MM)
-
254XE-G6118-10-00 ...SHIM, THRUST(T=1.0MM)...SHIM, THRUST(T=1.0MM)
-
254XE-G6118-11-00 ...SHIM, THRUST(T=1.1MM)...SHIM, THRUST(T=1.1MM)
-
254XE-G6118-12-00 ...SHIM, THRUST(T=1.2MM)...SHIM, THRUST(T=1.2MM)
-
254XE-G6118-13-00 ...SHIM, THRUST(T=1.3MM)...SHIM, THRUST(T=1.3MM)
-
254XE-G6118-14-00 ...SHIM, THRUST(T=1.4MM)...SHIM, THRUST(T=1.4MM)
-
254XE-G6118-15-00 ...SHIM, THRUST(T=1.5MM)...SHIM, THRUST(T=1.5MM)
-
254XE-G6118-16-00 ...SHIM, THRUST(T=1.6MM)...SHIM, THRUST(T=1.6MM)
-
254XE-G6118-17-00 ...SHIM, THRUST(T=1.7MM)...SHIM, THRUST(T=1.7MM)
-
254XE-G6118-18-00 ...SHIM, THRUST(T=1.8MM)...SHIM, THRUST(T=1.8MM)
-
254XE-G6118-19-00 ...SHIM, THRUST(T=1.9MM)...SHIM, THRUST(T=1.9MM)
-
254XE-G6118-20-00 ...SHIM, THRUST(T=2.0MM)...SHIM, THRUST(T=2.0MM)
-
254XE-G6118-21-00 ...SHIM, THRUST(T=2.1MM)...SHIM, THRUST(T=2.1MM)
-
254XE-G6118-A3-00 ...SHIM, THRUST(T=1.35MM)...SHIM, THRUST(T=1.35MM)
-
254XE-G6118-A4-00 ...SHIM, THRUST(T=1.45MM)...SHIM, THRUST(T=1.45MM)
-
254XE-G6118-A5-00 ...SHIM, THRUST(T=1.55MM)...SHIM, THRUST(T=1.55MM)
-
264XE-G6117-25-00 ...SHIM, RING GEAR(T=0.25MM)...SHIM, RING GEAR(T=0.25MM)
-
264XE-G6117-30-00 ...SHIM, RING GEAR(T=0.30MM)...SHIM, RING GEAR(T=0.30MM)
-
264XE-G6117-35-00 ...SHIM, RING GEAR(T=0.35MM)...SHIM, RING GEAR(T=0.35MM)
-
264XE-G6117-40-00 ...SHIM, RING GEAR(T=0.40MM)...SHIM, RING GEAR(T=0.40MM)
-
264XE-G6117-45-00 ...SHIM, RING GEAR(T=0.45MM)...SHIM, RING GEAR(T=0.45MM)
-
264XE-G6117-50-00 ...SHIM, RING GEAR(T=0.50MM)...SHIM, RING GEAR(T=0.50MM)
-
2795707-10500-00 NUT, FLANGENUT, FLANGE
-
2893210-85706-00 O-RINGO-RING
-
294XE-G6172-00-00 SHAFT, DRIVESHAFT, DRIVE
-
3093410-22039-00 CIRCLIPCIRCLIP
-
314X7-46180-00-00 CROSS JOINT COMP.CROSS JOINT COMP.
-
3293311-21044-00 BEARINGBEARING
-
3393440-20088-00 CIRCLIP, OUTERCIRCLIP, OUTER
-
3490467-07029-00 CLIPCLIP
-
3590445-078C4-00 HOSEHOSE
