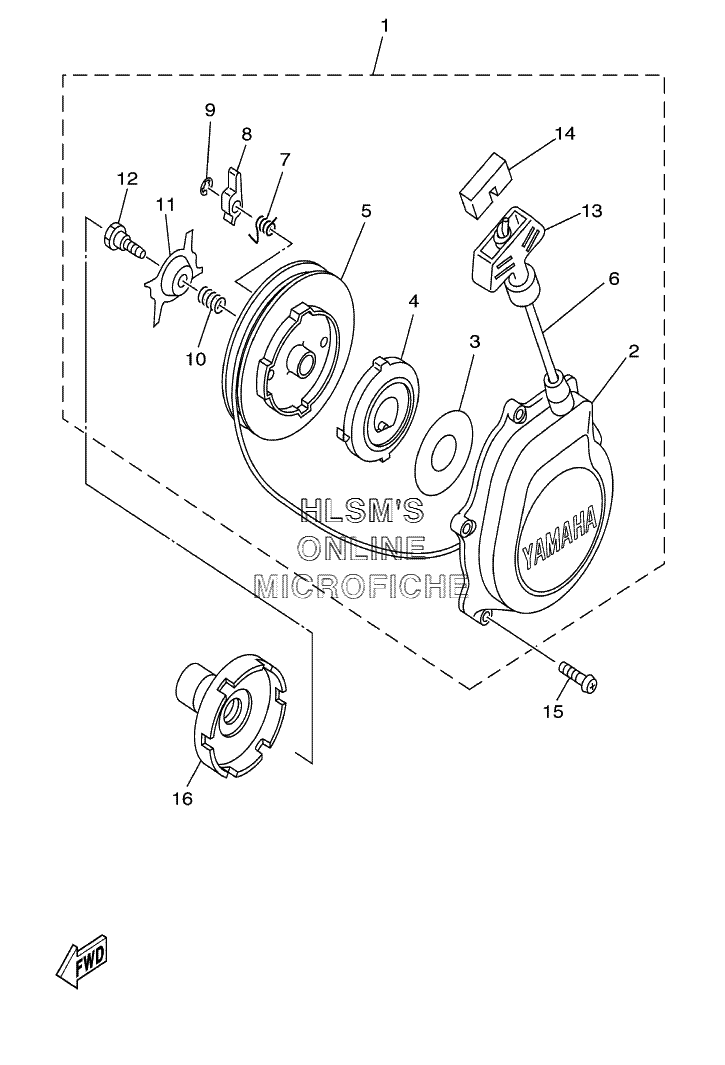

STARTER - RECOIL для Yamaha BEAR TRACKER YFM250XN (4XEA) - 2001 года выпуска
-
№АртикулНазвание
-
14XE-E5710-00-00 STARTER ASSY.STARTER ASSY.
-
24XE-E5711-00-00 ...CASE, STARTER...CASE, STARTER
-
34XE-E5789-00-00 ...DAMPER...DAMPER
-
44XE-E5713-00-00 ...SPRING, STARTER...SPRING, STARTER
-
54XE-E5714-00-00 ...DRUM, SHEAVE...DRUM, SHEAVE
-
64XE-E5751-00-00 ...WIRE, STARTER...WIRE, STARTER
-
74XE-E5767-00-00 ...SPRING...SPRING
-
84XE-E5741-00-00 ...PAWL, DRIVE...PAWL, DRIVE
-
94XE-E5744-00-00 ...CIRCLIP...CIRCLIP
-
104XE-E5715-00-00 ...SPRING, FRICTION...SPRING, FRICTION
-
114XE-E5716-00-00 ...PLATE, DRIVE...PLATE, DRIVE
-
124XE-E5793-00-00 ...SCREW...SCREW
-
134XE-E5755-00-00 ...HANDLE, STARTER...HANDLE, STARTER
-
144XE-E5779-00-00 ...COVER...COVER
-
1598507-06020-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
164XE-15723-00-00 PULLEY, STARTERPULLEY, STARTER
