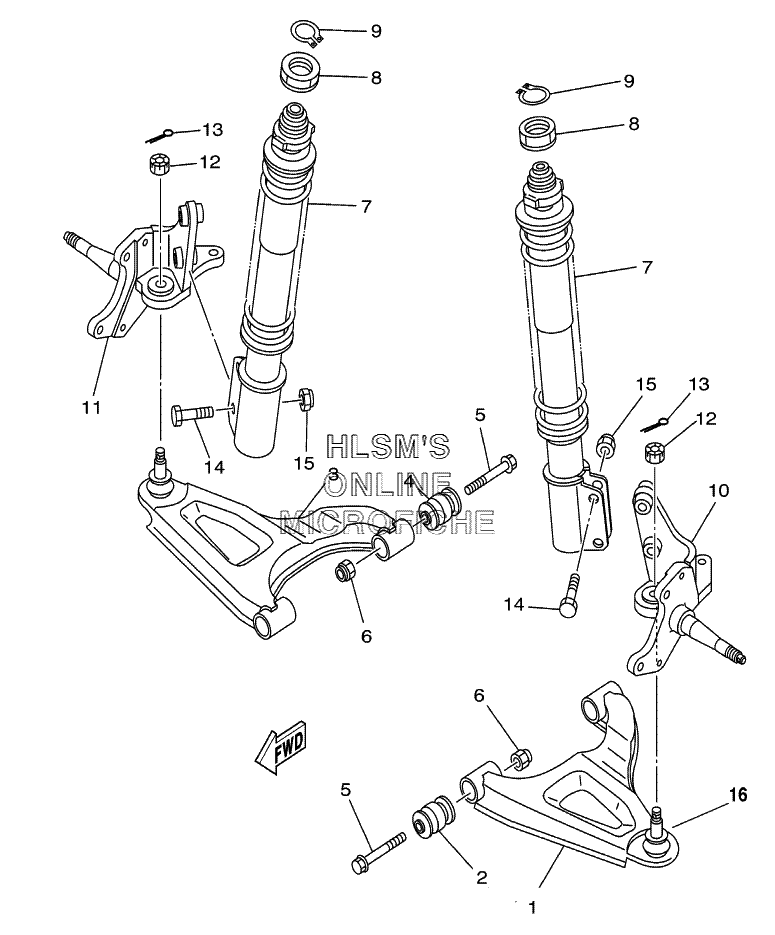

SUSPENSION - FRONT для Yamaha BEAR TRACKER YFM250XN (4XEA) - 2001 года выпуска
-
№АртикулНазвание
-
14XE-F3570-00-00 FRONT LOWER ARM COMP. (LEFT)FRONT LOWER ARM COMP. (LEFT)
-
22HR-23526-00-00 ...BUSH...BUSH
-
34XE-F3580-00-00 FRONT LOWER ARM COMP. (RIGHT)FRONT LOWER ARM COMP. (RIGHT)
-
42HR-23526-00-00 ...BUSH...BUSH
-
590105-10890-00 BOLT, FLANGEBOLT, FLANGE
-
690185-10844-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
74XE-F3350-10-00 SHOCK ABSORBER ASSY.SHOCK ABSORBER ASSY.
-
890179-35625-00 NUTNUT
-
993410-32826-00 CIRCLIPCIRCLIP
-
104XE-F3501-10-00 STEERING KNUCKLE ASSY. (LEFT)STEERING KNUCKLE ASSY. (LEFT)
-
114XE-F3502-10-00 STEERING KNUCKLE ASSY. (RIGHT)STEERING KNUCKLE ASSY. (RIGHT)
-
1290171-12816-00 NUT, CASTLENUT, CASTLE
-
1391401-25020-00 PIN, COTTERPIN, COTTER
-
1490101-12882-00 BOLTBOLT
-
159561P-12100-00 NUTNUT
-
164XE-F3549-00-00 BALL JOINT 1BALL JOINT 1
