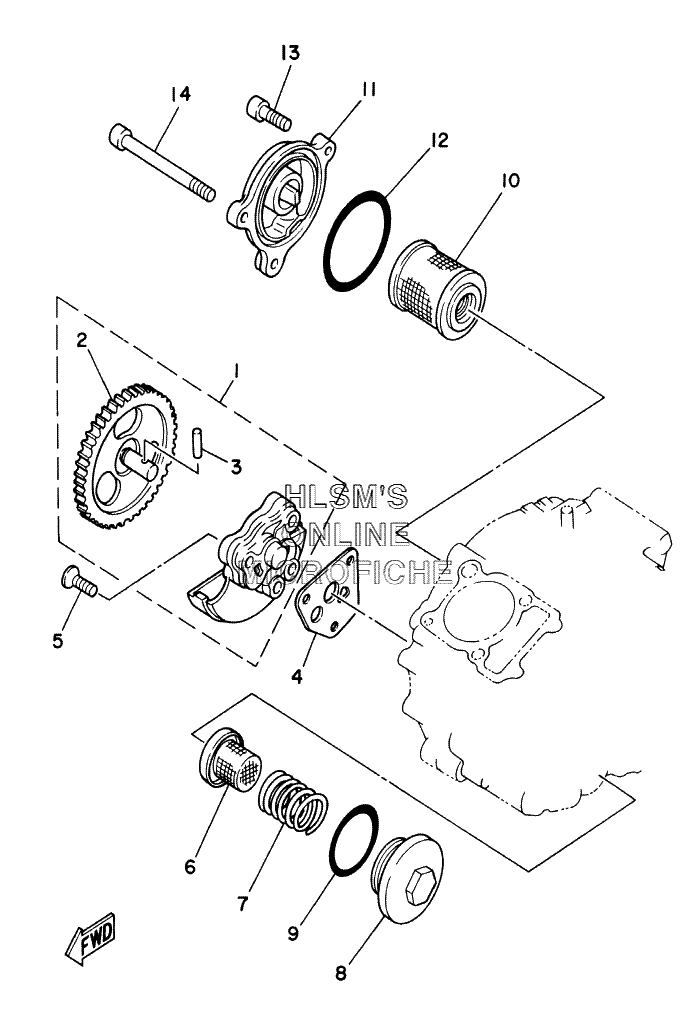

OIL PUMP для Yamaha BEAR TRACKER YFM250XN (4XEA) - 2001 года выпуска
-
№АртикулНазвание
-
12HT-13300-00-00 OIL PUMP ASSYOIL PUMP ASSY
-
221V-13326-00-00 ...GEAR, PUMP DRIVEN 2 (41 TEETH)...GEAR, PUMP DRIVEN 2 (41 TEETH)
-
393603-12030-00 ...PIN, DOWEL...PIN, DOWEL
-
44BE-13329-01-00 GASKET, PUMP COVERGASKET, PUMP COVER
-
598707-06030-00 SCREW, FLAT HEADSCREW, FLAT HEAD
-
651Y-13411-00-00 STRAINER, OILSTRAINER, OIL
-
790501-18576-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
85H0-15351-00-00 PLUG, DRAINPLUG, DRAIN
-
993210-347A1-00 O-RINGO-RING
-
105H0-13440-00-00 ELEMENT ASSY, OIL CLEANERELEMENT ASSY, OIL CLEANER
-
1115A-13447-00-00 COVER, OIL ELEMENTCOVER, OIL ELEMENT
-
1293210-54175-00 O-RINGO-RING
-
1391317-06020-00 BOLTBOLT
-
1491317-06115-00 BOLTBOLT
