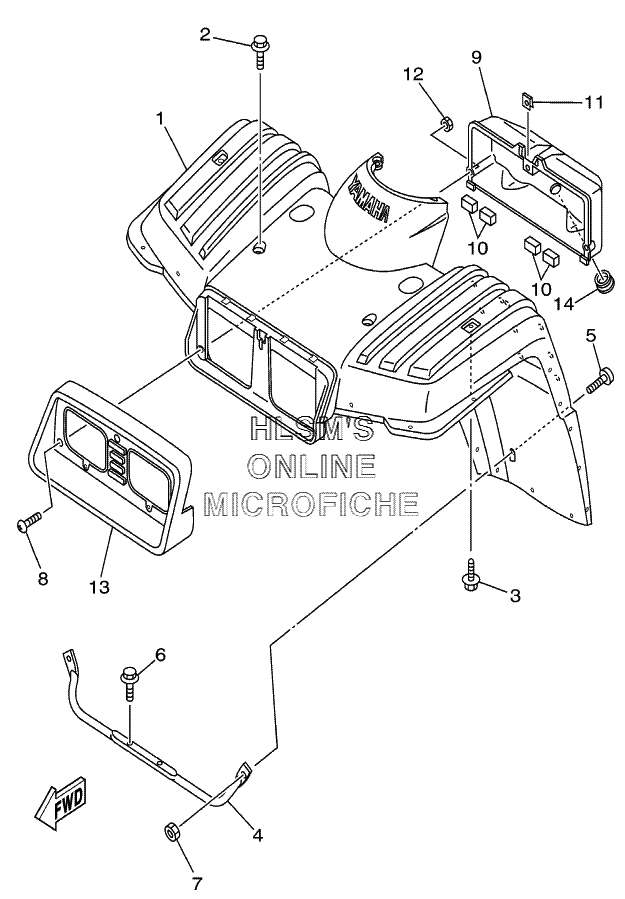

FENDER - FRONT для Yamaha BEAR TRACKER YFM250XN (4XEA) - 2001 года выпуска
-
№АртикулНазвание
-
14XE-F1500-00-00 FRONT FENDER ASSY. (OTR) (ROMANTIQUE ROUGE)FRONT FENDER ASSY. (OTR) (ROMANTIQUE ROUGE)
-
14XE-F1500-10-00 FRONT FENDER ASSY. (OKO) (PASTEL DEEP GREEN)FRONT FENDER ASSY. (OKO) (PASTEL DEEP GREEN)
-
14XE-F1500-20-00 FRONT FENDER ASSY. (598) (DARK GREYISH YELLOW SOLID)FRONT FENDER ASSY. (598) (DARK GREYISH YELLOW SOLID)
-
290119-06060-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
390119-06060-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
44XE-F1513-00-00 STAY, FENDER 1STAY, FENDER 1
-
590110-06836-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
69581P-08016-00 BOLT, FLANGEBOLT, FLANGE
-
795607-06100-00 NUT, UNUT, U
-
890154-05006-00 SCREW, BINDINGSCREW, BINDING
-
94XE-H4111-00-00 BODY, HEADLIGHTBODY, HEADLIGHT
-
104XE-F1717-00-00 DAMPERDAMPER
-
1190183-05024-00 NUT, SPRINGNUT, SPRING
-
1295304-05600-00 NUTNUT
-
134XE-F3391-00-00 PANEL, FRONTPANEL, FRONT
-
1490480-25461-00 GROMMETGROMMET
Все узлы модели:
- AIR CLEANER W/INTAKE
- BRAKE - FRONT CALIPER
- BRAKE - FRONT MASTER CYLINDER
- CAMSHAFT CHAIN
- CARBURETOR
- CLUTCH
- CRANKCASE
- CRANKCASE - COVER
- CRANKSHAFT - PISTON
- CYLINDER
- CYLINDER HEAD
- DIFFERENTIAL - REAR W/ DRIVE SHAFT
- DRIVE SELECTOR
- ELECTRICAL
- EMBLEMS - LABELS
- EXHAUST
- • FENDER - FRONT
- FENDER - REAR
- FOOTREST W/BRAKE PEDAL
- FRAME
- FUEL TANK
- GENERATOR
- GUARD
- HANDLEBAR W/ CABLES RH SWITCHES/LEVER
- HANDLEBAR W/ LH SWITCHES/LEVER
- HEADLIGHT
- MIDDLE DRIVE GEAR
- MODEL INFO - COLOR CHART
- OIL PUMP
- SEAT
- SHIFT CAM - FORK
- SHIFT SHAFT
- SIDE COVER
- STARTER - RECOIL
- STARTER CLUTCH
- STARTING MOTOR
- STEERING
- SUSPENSION - FRONT
- SUSPENSION - REAR ARM
- SUSPENSION - REAR SHOCK ABSORBER
- TAILLIGHT
- TRANSMISSION
- VALVE
- WHEEL - FRONT
- WHEEL - REAR W/ BRAKE - AXLE
