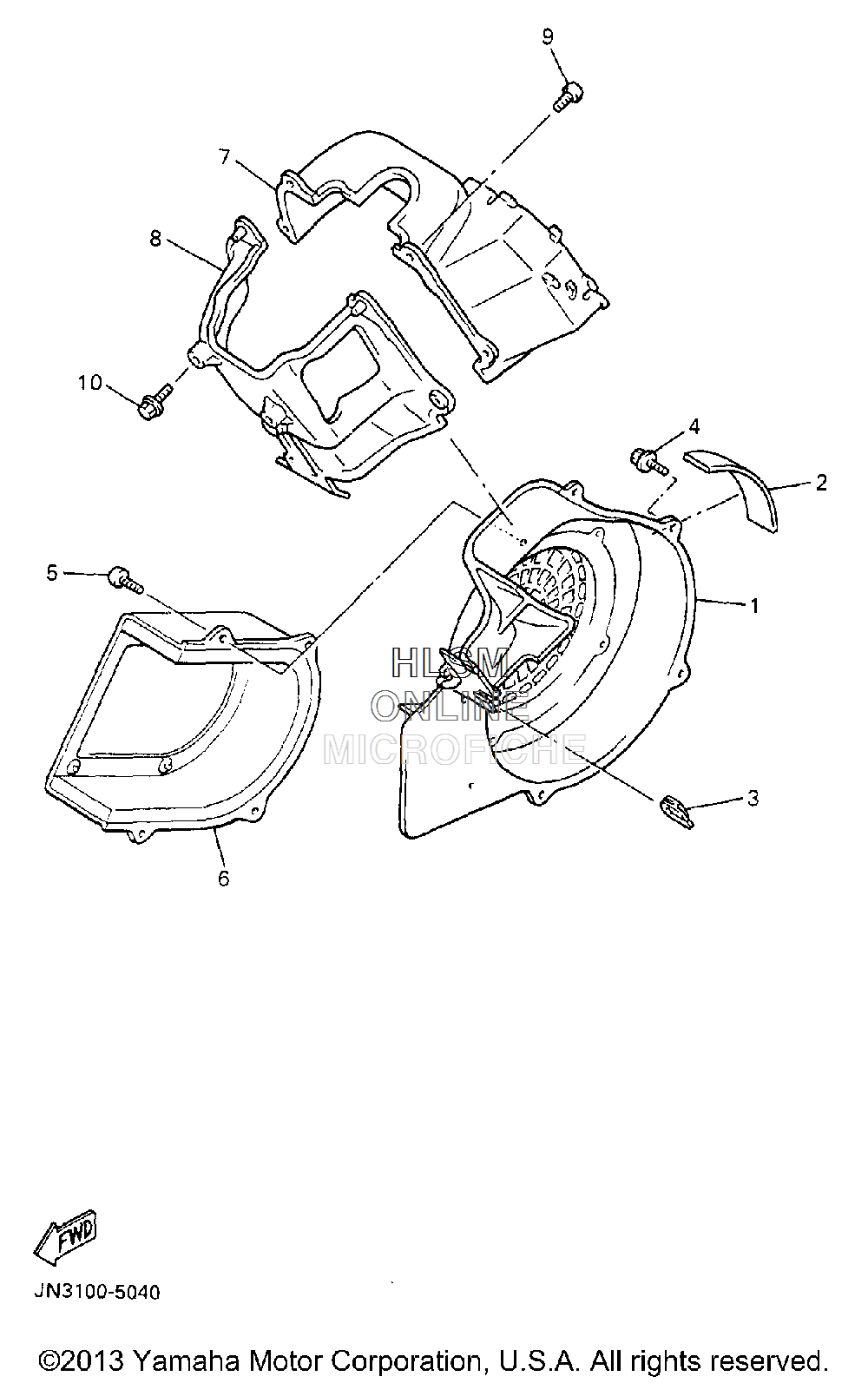

AIR SHROUD для Yamaha UTILITY CAR [G11AP] (JJ31) - 1996 года выпуска
-
№АртикулНазвание
-
1JN5-12621-00-00 CASE, FANCASE, FAN
-
2JN5-12659-00-00 DAMPER, AIR SHROUD 2DAMPER, AIR SHROUD 2
-
390480-20280-00 GROMMETGROMMET
-
495817-06020-00 BOLT, FLANGEBOLT, FLANGE
-
597707-60516-00 SCREW, TAPPINGSCREW, TAPPING
-
6J38-12640-00-00 FAN CASE COVER COMP.FAN CASE COVER COMP.
-
7J38-12651-02-00 AIR SHROUD, CYLINDER 1AIR SHROUD, CYLINDER 1
-
8JN5-12652-00-00 AIR SHROUD, CYLINDER 2AIR SHROUD, CYLINDER 2
-
997707-60512-00 SCREW, TAPPINGSCREW, TAPPING
-
1090109-06513-00 BOLTBOLT
