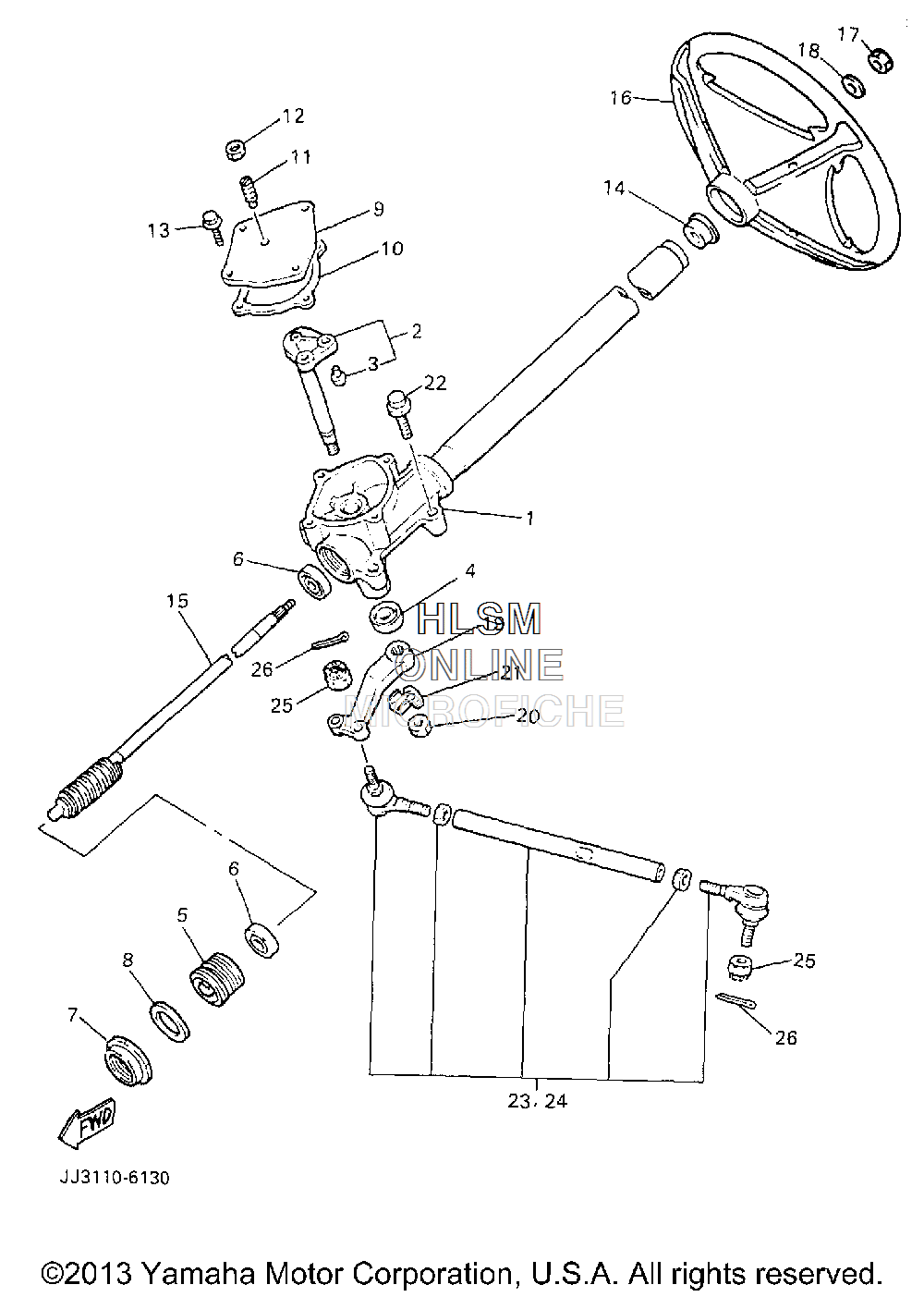

STEERING для Yamaha UTILITY CAR [G11AP] (JJ31) - 1996 года выпуска
-
№АртикулНазвание
-
1JG5-F3811-00-00 COLUMN, STEERINGCOLUMN, STEERING
-
2J38-23816-00-00 ARM, PITMANARM, PITMAN
-
3J38-23836-00-00 ...PIN, PITMAN...PIN, PITMAN
-
493102-22314-00 SEAL, OILSEAL, OIL
-
5J55-F3876-00-00 BOLTBOLT
-
693332-000Y2-00 BEARINGBEARING
-
7J10-23877-00-00 NUTNUT
-
8J10-23444-00-00 WASHERWASHER
-
9JN3-F3818-00-00 COVER, STEERINGCOVER, STEERING
-
10J38-23462-00-00 SEAL, STEERINGSEAL, STEERING
-
11J10-23459-00-00 BOLTBOLT
-
1290170-08024-00 NUT, HEXNUT, HEX
-
1395817-06020-00 BOLT, FLANGEBOLT, FLANGE
-
14JN3-F3814-00-00 HOLDER, HANDLE UPPERHOLDER, HANDLE UPPER
-
15J10-23840-00-00 STEERING SHAFT ASSEMBLYSTEERING SHAFT ASSEMBLY
-
16JN3-F3838-00-00 WHEEL, STEERINGWHEEL, STEERING
-
1790185-12119-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1892907-12200-00 WASHERWASHER
-
19J38-23826-01-00 ARM, IDLERARM, IDLER
-
2095707-16300-00 NUT, NYLONNUT, NYLON
-
2190215-16252-00 WASHER, TONGUEWASHER, TONGUE
-
2295817-10050-00 BOLT, FLANGEBOLT, FLANGE
-
23JN6-F3830-11-00 TIE ROD ASSEMBLY, LEFT (SEE ANY G19E OR G1A FOR INDIVIDUAL PARTS)TIE ROD ASSEMBLY, LEFT (SEE ANY G19E OR G1A FOR INDIVIDUAL PARTS)
-
24JN6-F3850-11-00 TIE ROD ASSEMBLY, RIGHT (SEE ANY G19E OR G1A FOR INDIVIDUAL PARTS)TIE ROD ASSEMBLY, RIGHT (SEE ANY G19E OR G1A FOR INDIVIDUAL PARTS)
-
2595617-10100-00 NUT, UNUT, U
-
2691490-25020-00 PIN. COTTERPIN. COTTER
