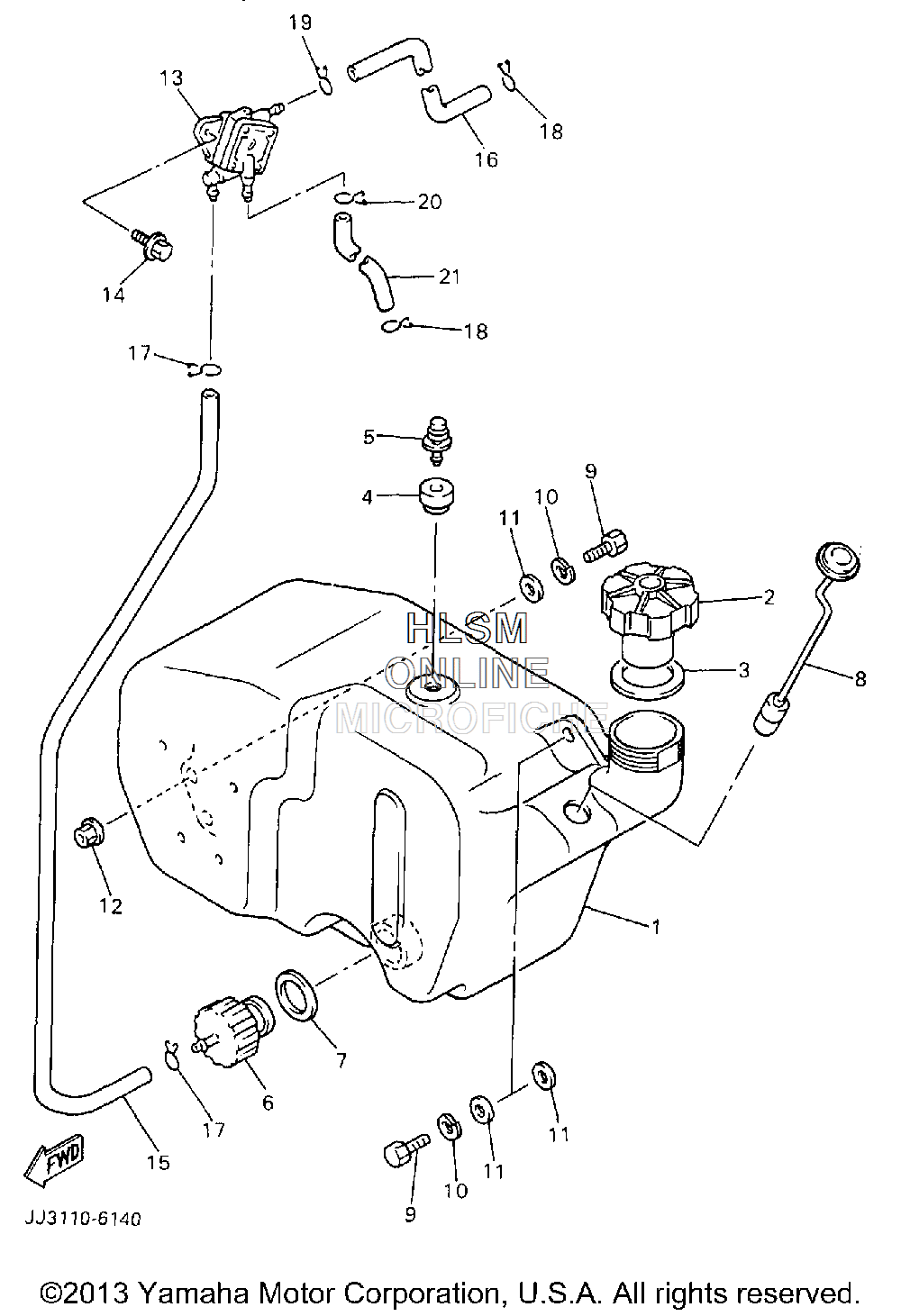

FUEL TANK для Yamaha UTILITY CAR [G11AP] (JJ31) - 1996 года выпуска
-
№АртикулНазвание
-
1J55-F4111-11-00 TANK, FUELTANK, FUEL
-
2J24-24620-01-00 BODY CAP ASSEMBLYBODY CAP ASSEMBLY
-
3J10-24612-00-00 GASKET, CAPGASKET, CAP
-
4J10-21773-00-00 GROMMETGROMMET
-
5J24-24460-01-00 RELEASE VALVE ASSEMBLYRELEASE VALVE ASSEMBLY
-
68R4-24560-00-00 FILTER ASSEMBLYFILTER ASSEMBLY
-
78F3-24564-00-00 GASKETGASKET
-
8J38-85710-02-00 FUEL LEVEL GAUGE ASSEMBLYFUEL LEVEL GAUGE ASSEMBLY
-
997007-08025-00 BOLTBOLT
-
1092907-08100-00 WASHER, SPRINGWASHER, SPRING
-
1190201-086A3-00 WASHER, PLATEWASHER, PLATE
-
1295617-08200-00 NUT, U-FLANGE (95607-08200-00)NUT, U-FLANGE (95607-08200-00)
-
13JF2-24410-20-00 FUEL PUMP ASSEMBLYFUEL PUMP ASSEMBLY
-
1495807-06016-00 BOLT, FLANGEBOLT, FLANGE
-
1590445-117F2-00 HOSEHOSE
-
1690445-093J2-00 HOSEHOSE
-
1790467-11009-00 CLIPCLIP
-
1890467-08017-00 CLIPCLIP
-
1990467-08017-00 CLIPCLIP
-
2090467-09006-00 CLIPCLIP
-
2190445-09304-00 HOSE (L310)HOSE (L310)
