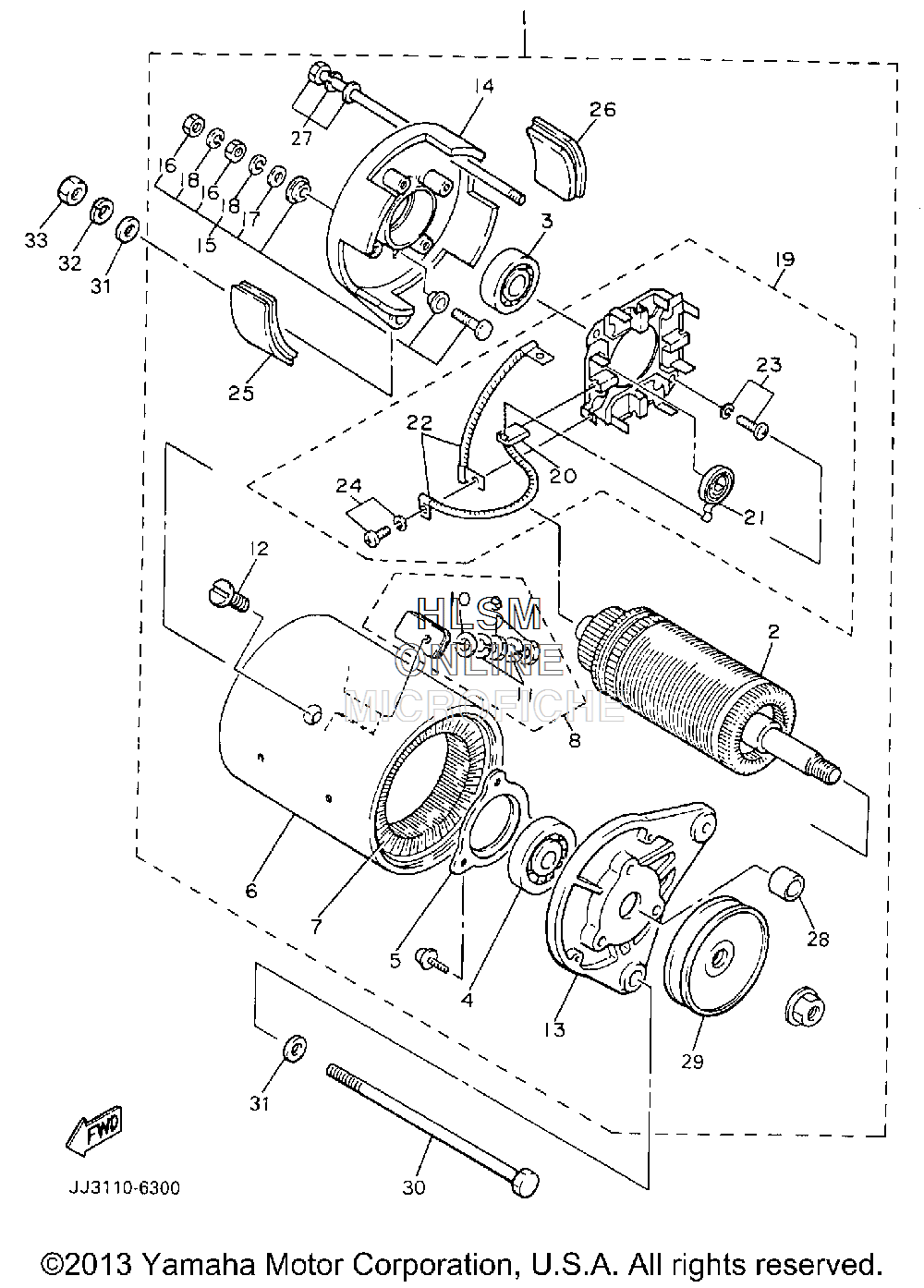

STARTING MOTOR для Yamaha UTILITY CAR [G11AP] (JJ31) - 1996 года выпуска
-
№АртикулНазвание
-
1JN3-H1100-00-00 STARTER GENERATOR ASSEMBLYSTARTER GENERATOR ASSEMBLY
-
2JN3-81150-00-00 ...ARMATURE ASSEMBLY...ARMATURE ASSEMBLY
-
3J10-81157-10-00 ...BEARING 1 (6202 SD)...BEARING 1 (6202 SD)
-
4J10-81158-10-00 ...BEARING 2 (6203 SD)...BEARING 2 (6203 SD)
-
5JN3-81159-00-00 ...HOLDER, BEARING...HOLDER, BEARING
-
6J38-81110-10-00 ...STATOR ASSEMBLY...STATOR ASSEMBLY
-
7J38-81160-10-00 ...FIELD COIL ASSEMBLY...FIELD COIL ASSEMBLY
-
8J10-81148-10-00 ...SCREW SET 4...SCREW SET 4
-
995380-06600-00 ......NUT, HEXAGON......NUT, HEXAGON
-
1092990-06600-00 ......WASHER, PLATE......WASHER, PLATE
-
1192995-06100-00 ......WASHER, SPRING......WASHER, SPRING
-
12J10-81146-10-00 ...SCREW 2...SCREW 2
-
13JN3-81165-00-00 ...BRACKET, STARTER GENERATOR 1...BRACKET, STARTER GENERATOR 1
-
14JN3-81166-00-00 ...BRACKET, STARTER GENERATOR 2...BRACKET, STARTER GENERATOR 2
-
15JN3-81147-00-00 ...SCREW 3...SCREW 3
-
1695380-06600-00 ......NUT, HEXAGON......NUT, HEXAGON
-
1792990-06600-00 ......WASHER, PLATE......WASHER, PLATE
-
1892995-06100-00 ......WASHER, SPRING......WASHER, SPRING
-
19JN3-81119-00-00 ...BRUSH HOLDER ASSEMBLY...BRUSH HOLDER ASSEMBLY
-
20JF2-81111-00-00 ......BRUSH......BRUSH
-
21JN3-81113-00-00 ......SPRING, BRUSH......SPRING, BRUSH
-
22J10-81115-10-00 ......WIRE, LEAD......WIRE, LEAD
-
2398507-05016-00 ......SCREW, PAN HEAD......SCREW, PAN HEAD
-
2498580-04010-00 ......SCREW, PAN HEAD......SCREW, PAN HEAD
-
25J10-81129-10-00 ...COVER, BRUSH...COVER, BRUSH
-
26J10-81129-10-00 ...COVER, BRUSH...COVER, BRUSH
-
27J10-81145-10-00 ...SCREW 1...SCREW 1
-
28JN3-81661-00-00 ...SPACER...SPACER
-
29JN3-81161-00-00 ...PULLEY...PULLEY
-
3090101-12545-00 BOLTBOLT
-
3192907-12600-00 WASHER, PLATEWASHER, PLATE
-
3292907-12100-00 WASHER, SPRINGWASHER, SPRING
-
3395317-12600-00 NUTNUT
