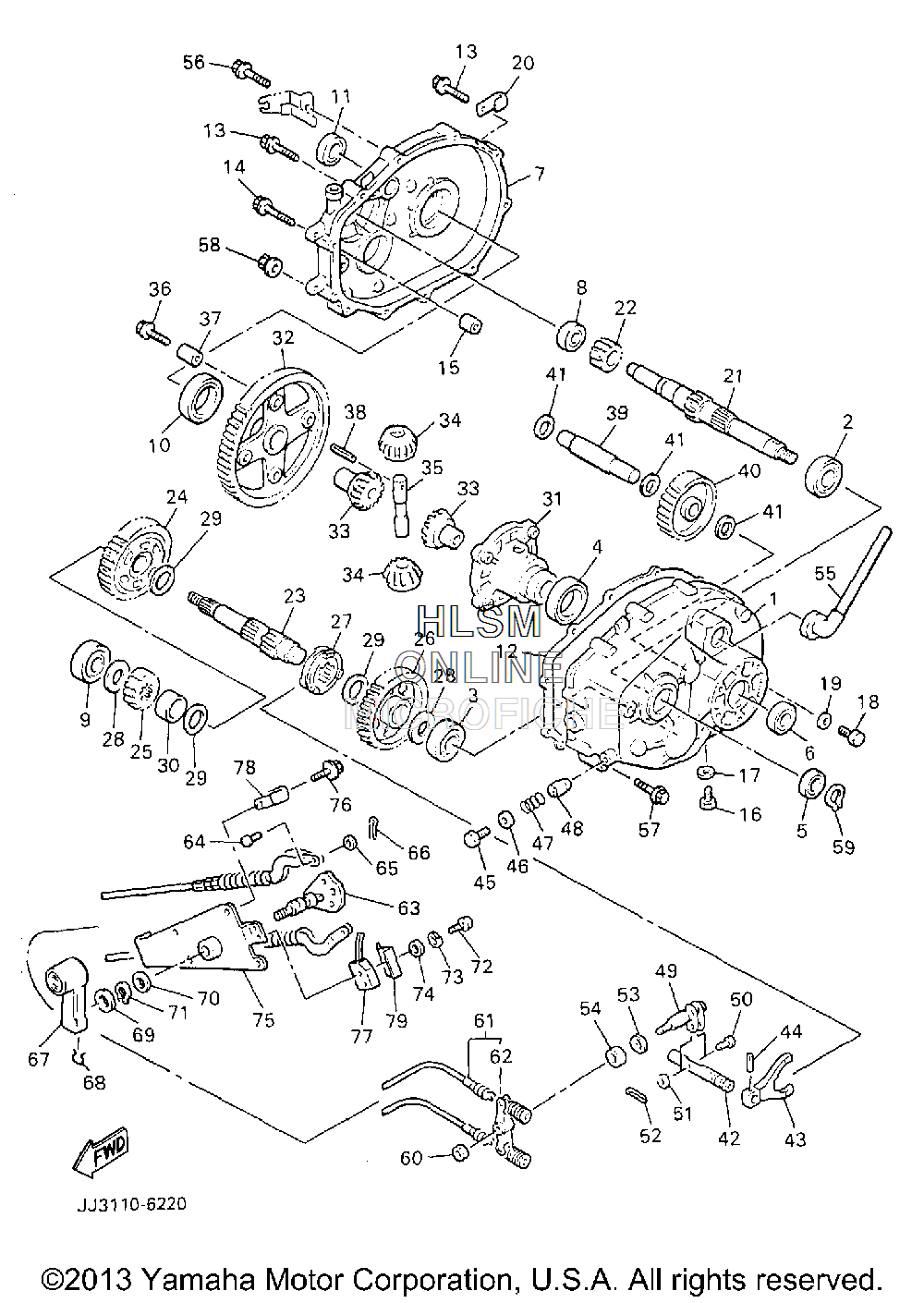

TRANSMISSION для Yamaha UTILITY CAR [G11AP] (JJ31) - 1996 года выпуска
-
№АртикулНазвание
-
1J38-46311-00-00 CASE, TRANSMISSION 1CASE, TRANSMISSION 1
-
293306-20541-00 BEARING (B6205)BEARING (B6205)
-
393306-20421-00 BEARINGBEARING
-
493306-00803-00 BEARINGBEARING
-
593102-25017-00 OIL SEALOIL SEAL
-
693102-25360-00 OIL SEALOIL SEAL
-
7J38-46312-01-00 CASE, TRANSMISSION 2CASE, TRANSMISSION 2
-
893306-20324-00 BEARINGBEARING
-
993306-20421-00 BEARINGBEARING
-
1093306-00803-00 BEARINGBEARING
-
1193102-25360-00 OIL SEALOIL SEAL
-
12J38-46319-01-00 GASKETGASKET
-
1395817-08040-00 BOLT, FLANGEBOLT, FLANGE
-
1495827-08050-00 BOLT, FLANGEBOLT, FLANGE
-
1599510-12016-00 PIN, DOWELPIN, DOWEL
-
1690340-14036-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
1790430-14043-00 GASKETGASKET
-
1890101-08344-00 BOLTBOLT
-
1990201-08087-00 WASHER, PLATEWASHER, PLATE
-
2090465-06100-00 CLAMPCLAMP
-
21J38-46321-03-00 SHAFT, INPUTSHAFT, INPUT
-
22J38-46331-01-00 GEAR, INPUT 1GEAR, INPUT 1
-
23J38-46351-00-00 SHAFT, COUNTERSHAFT, COUNTER
-
24J38-46361-01-00 GEAR, COUNTER 1GEAR, COUNTER 1
-
25J38-46362-00-00 GEAR, COUNTER 2GEAR, COUNTER 2
-
26J38-46363-00-00 GEAR, REVERSEGEAR, REVERSE
-
27JJ3-4636A-00-00 DOG, CLUTCHDOG, CLUTCH
-
2890201-204K8-00 WASHER, PLATEWASHER, PLATE
-
2990201-257J2-00 WASHER, PLATEWASHER, PLATE
-
3090387-252M8-00 COLLARCOLLAR
-
31JJ3-46411-00-00 CASE, DIFFERENTIALCASE, DIFFERENTIAL
-
32JJ3-46421-00-00 GEAR, RINGGEAR, RING
-
33JJ3-46414-00-00 GEAR, DIFFERENTIAL SIDEGEAR, DIFFERENTIAL SIDE
-
34J38-46415-00-00 PINION, DIFFERENTIALPINION, DIFFERENTIAL
-
35J38-46417-02-00 PIN, DIFFERENTIALPIN, DIFFERENTIAL
-
3690105-08390-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
3791812-16001-00 PIN, DOWELPIN, DOWEL
-
3891690-40040-00 PIN, SPRINGPIN, SPRING
-
39J38-46348-00-00 SHAFT 2SHAFT 2
-
40J38-46356-00-00 GEAR, IDLERGEAR, IDLER
-
4190201-17713-00 WASHER, PLATEWASHER, PLATE
-
42J38-4633A-00-00 BAR, SHIFT FORK GUIDEBAR, SHIFT FORK GUIDE
-
43J38-46338-00-00 FORK, SHIFTFORK, SHIFT
-
4491609-40020-00 PIN, SPRINGPIN, SPRING
-
4590101-08344-00 BOLTBOLT
-
4690201-08087-00 WASHER, PLATEWASHER, PLATE
-
4790501-10060-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
4890249-07215-00 PINPIN
-
49J38-46384-00-00 LEVER, SHIFT 3LEVER, SHIFT 3
-
5091701-06022-00 PINPIN
-
5192907-06200-00 WASHERWASHER
-
5291490-20025-00 PIN, COTTERPIN, COTTER
-
5390201-12166-00 WASHER, PLATEWASHER, PLATE
-
5493102-12224-00 OIL SEALOIL SEAL
-
55JN3-47559-00-00 CAP 2CAP 2
-
5695817-08040-00 BOLT, FLANGEBOLT, FLANGE
-
5795817-08075-00 BOLT, FLANGEBOLT, FLANGE
-
5895707-08500-00 NUT, FLANGENUT, FLANGE
-
5993410-25017-00 CIRCLIPCIRCLIP
-
6095617-08100-00 NUT, UNUT, U
-
61JJ3-G8330-00-00 CABLE END ASSEMBLYCABLE END ASSEMBLY
-
62J55-G6383-00-00 ...LEVER, SHIFT 2...LEVER, SHIFT 2
-
63JF2-46382-00-00 LEVER, SHIFT 1LEVER, SHIFT 1
-
6491702-06014-00 PIN, CLEVISPIN, CLEVIS
-
6592907-06600-00 WASHER, PLATEWASHER, PLATE
-
6691490-20025-00 PIN, COTTERPIN, COTTER
-
67JN3-G6381-00-00 KNOB, SHIFTKNOB, SHIFT
-
68JN3-G6376-00-00 SPRING SETSPRING SET
-
6990201-201L9-00 WASHER, PLAINWASHER, PLAIN
-
7090201-19551-00 WASHER, PLAINWASHER, PLAIN
-
7199009-19400-00 CIRCLIPCIRCLIP
-
7298517-04025-00 SCREW, PAN HEADSCREW, PAN HEAD
-
7392907-04100-00 WASHER, SPRINGWASHER, SPRING
-
7492907-04600-00 WASHERWASHER
-
75JN3-G6372-00-00 BRACKET, SHIFT WIREBRACKET, SHIFT WIRE
-
7695817-06016-00 BOLT, FLANGEBOLT, FLANGE
-
77JN3-82617-00-00 SWITCHSWITCH
-
7890465-06038-00 CLAMPCLAMP
-
79JJ3-G6394-00-00 JOINTJOINT
