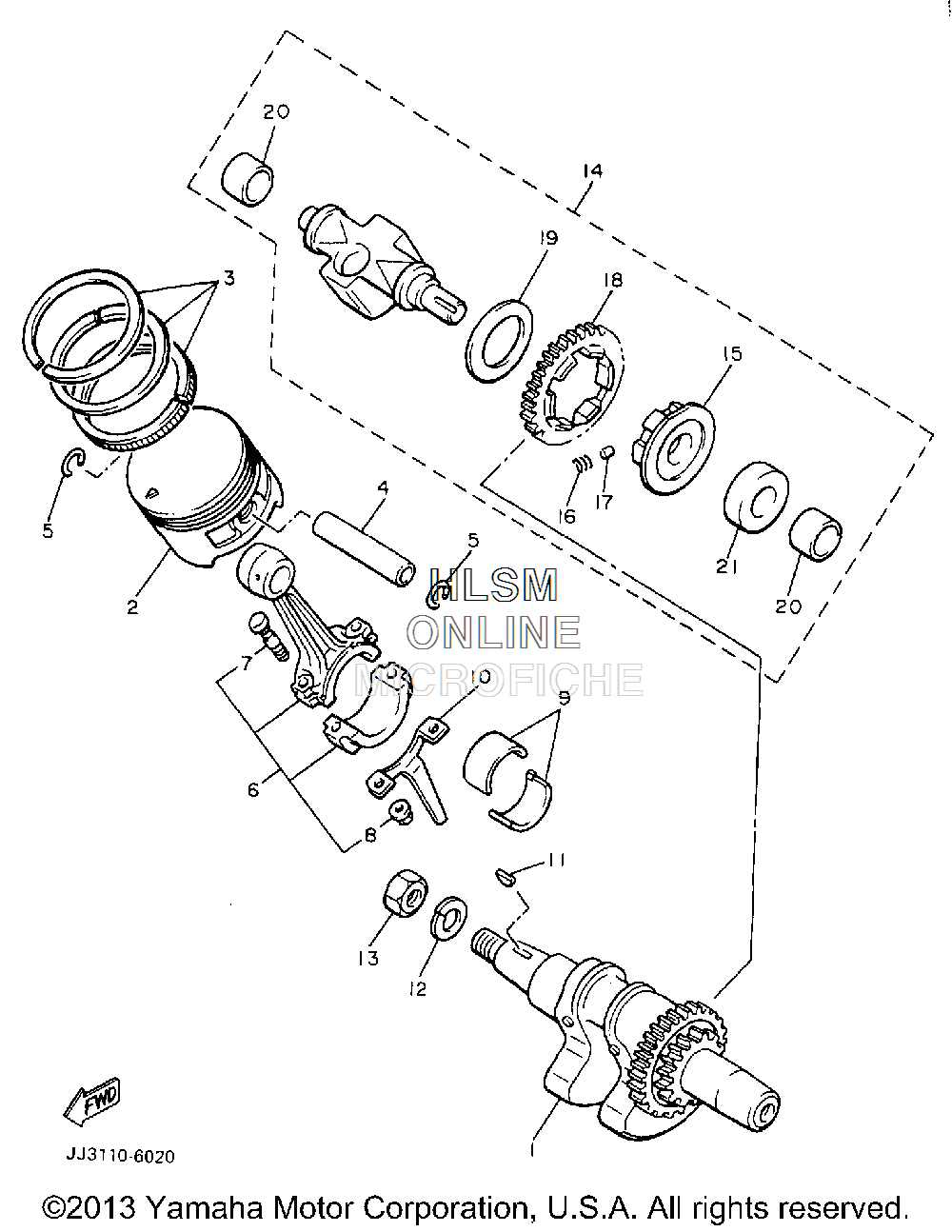

CRANKSHAFT - PISTON для Yamaha UTILITY CAR [G11AP] (JJ31) - 1996 года выпуска
-
№АртикулНазвание
-
1J38-11400-00-00 CRANKSHAFT ASSEMBLYCRANKSHAFT ASSEMBLY
-
2JN5-11631-00-96 PISTON (STD) (STD)PISTON (STD) (STD)
-
2JN5-11636-00-00 PISTON (0.50MM O/S) (OPT)PISTON (0.50MM O/S) (OPT)
-
2JN5-11635-00-00 PISTON (0.25MM O/S) (OPT)PISTON (0.25MM O/S) (OPT)
-
3JN5-11610-00-00 PISTON RING SET (STD) (STD)PISTON RING SET (STD) (STD)
-
3JN5-11610-10-00 PISTON RING SET (0.25MM O/S) (OPT)PISTON RING SET (0.25MM O/S) (OPT)
-
3JN5-11610-20-00 PISTON RING SET (0.50MM O/S) (OPT)PISTON RING SET (0.50MM O/S) (OPT)
-
47A9-11633-00-00 PIN, PISTONPIN, PISTON
-
593450-19047-00 CIRCLIPCIRCLIP
-
6J38-11650-00-00 CONNECTING ROD ASSEMBLYCONNECTING ROD ASSEMBLY
-
7J38-11654-00-00 ...BOLT, CONNECTING ROD...BOLT, CONNECTING ROD
-
890179-08327-00 ...NUT...NUT
-
9J38-11656-00-00 BEARING, CON-ROD (OPT) (BROWN)BEARING, CON-ROD (OPT) (BROWN)
-
9J38-11656-10-00 BEARING, CON-ROD (OPT) (BLACK)BEARING, CON-ROD (OPT) (BLACK)
-
9J38-11656-20-00 BEARING, CON-ROD (OPT) (BLUE)BEARING, CON-ROD (OPT) (BLUE)
-
10J38-11657-00-00 SPLASHER, OILSPLASHER, OIL
-
1190280-16053-00 KEY, WOODRUFFKEY, WOODRUFF
-
1292907-16100-00 WASHERWASHER
-
1390170-16182-00 NUTNUT
-
14J38-Y1149-00-00 BALANCER ASSEMBLYBALANCER ASSEMBLY
-
15J38-11496-00-00 ...BOSS, BUFFER...BOSS, BUFFER
-
1690501-21133-00 ...SPRING, COMPRESSION...SPRING, COMPRESSION
-
1793605-10090-00 ...PIN, DOWEL...PIN, DOWEL
-
18J38-11531-00-00 ...GEAR, BALANCE WT...GEAR, BALANCE WT
-
1990201-201G9-00 ...WASHER, PLATE...WASHER, PLATE
-
2090387-155R3-00 ...COLLAR...COLLAR
-
2190387-152M7-00 ...COLLAR...COLLAR
