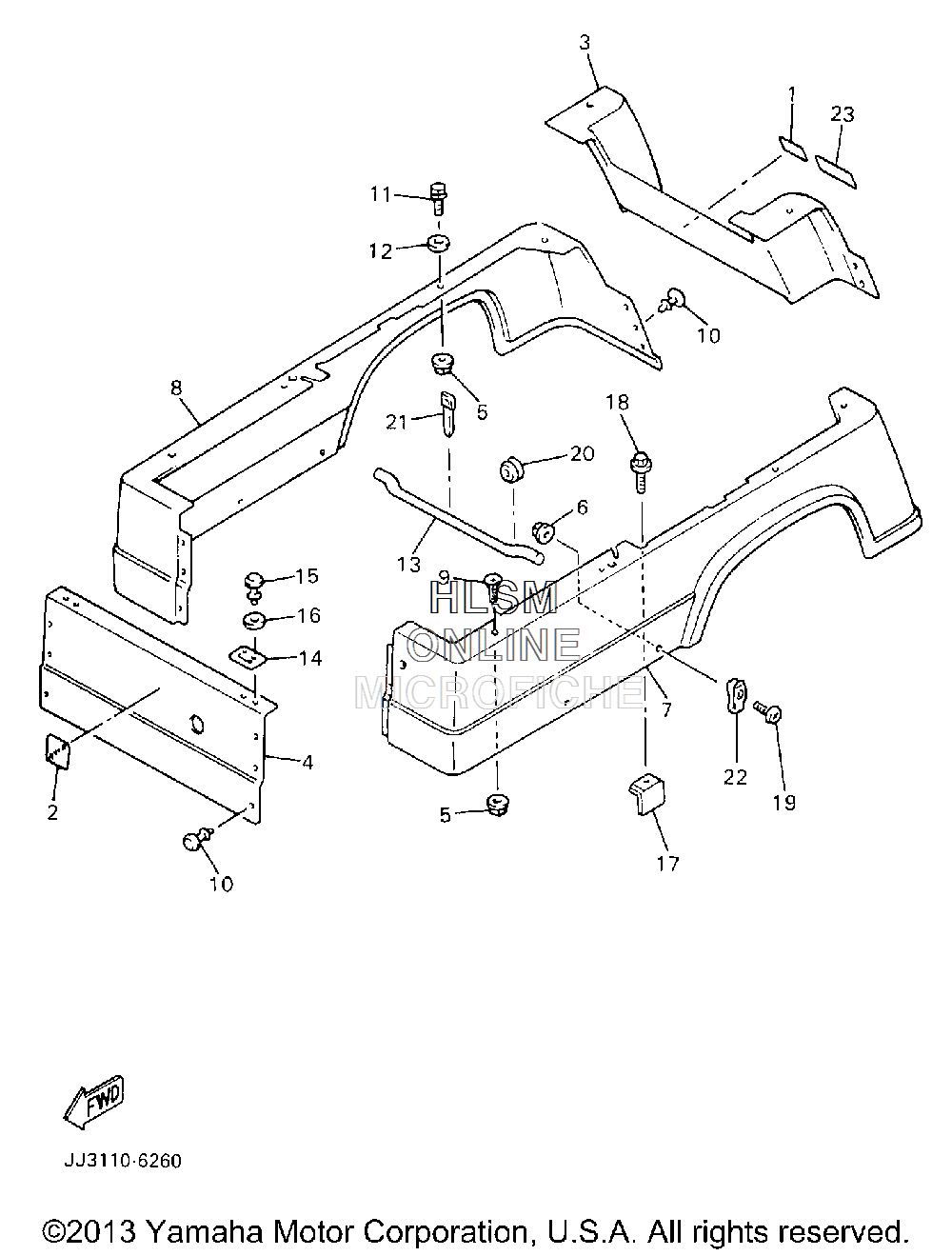

BODY 2 для Yamaha UTILITY CAR [G11AP] (JJ31) - 1996 года выпуска
-
№АртикулНазвание
-
1JJ3-K7765-00-00 LABEL, WARNING 5LABEL, WARNING 5
-
2JN3-K7741-00-00 INDICATOR, 1INDICATOR, 1
-
3JJ3-K8142-11-00 PANEL, REAR BODY (GRAY)PANEL, REAR BODY (GRAY)
-
4JJ3-K8141-10-00 PANEL, INTERMEDIATE BODYPANEL, INTERMEDIATE BODY
-
590183-06810-00 NUT, SPRINGNUT, SPRING
-
690183-06811-00 NUT, SPRINGNUT, SPRING
-
7JJ3-K8111-12-00 PANEL, BODY SHELLPANEL, BODY SHELL
-
8JJ3-K8112-12-00 PANEL, BODY SHELLPANEL, BODY SHELL
-
990151-06040-00 SCREW, COUNTERSUNKSCREW, COUNTERSUNK
-
1090267-62841-00 RIVET, BLINDRIVET, BLIND
-
1190119-06915-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1290201-065F3-00 WASHER, PLATEWASHER, PLATE
-
13JJ3-K8226-00-00 ROD, SEAT STOPPERROD, SEAT STOPPER
-
14JJ3-K8427-01-00 HINGE, SEAT 2HINGE, SEAT 2
-
1590267-64834-00 RIVET, BLINDRIVET, BLIND
-
1690201-08681-00 WASHER, PLATEWASHER, PLATE
-
17JJ3-K814H-00-00 HOOK, BODY LOCKHOOK, BODY LOCK
-
1890119-08903-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1990110-06200-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2090480-13018-00 GROMMETGROMMET
-
2190464-10814-00 CLAMPCLAMP
-
22JJ3-K8167-01-00 BUMPER, RUBBER 1BUMPER, RUBBER 1
-
23JJ3-K7768-00-00 LABEL, WARNINGLABEL, WARNING
