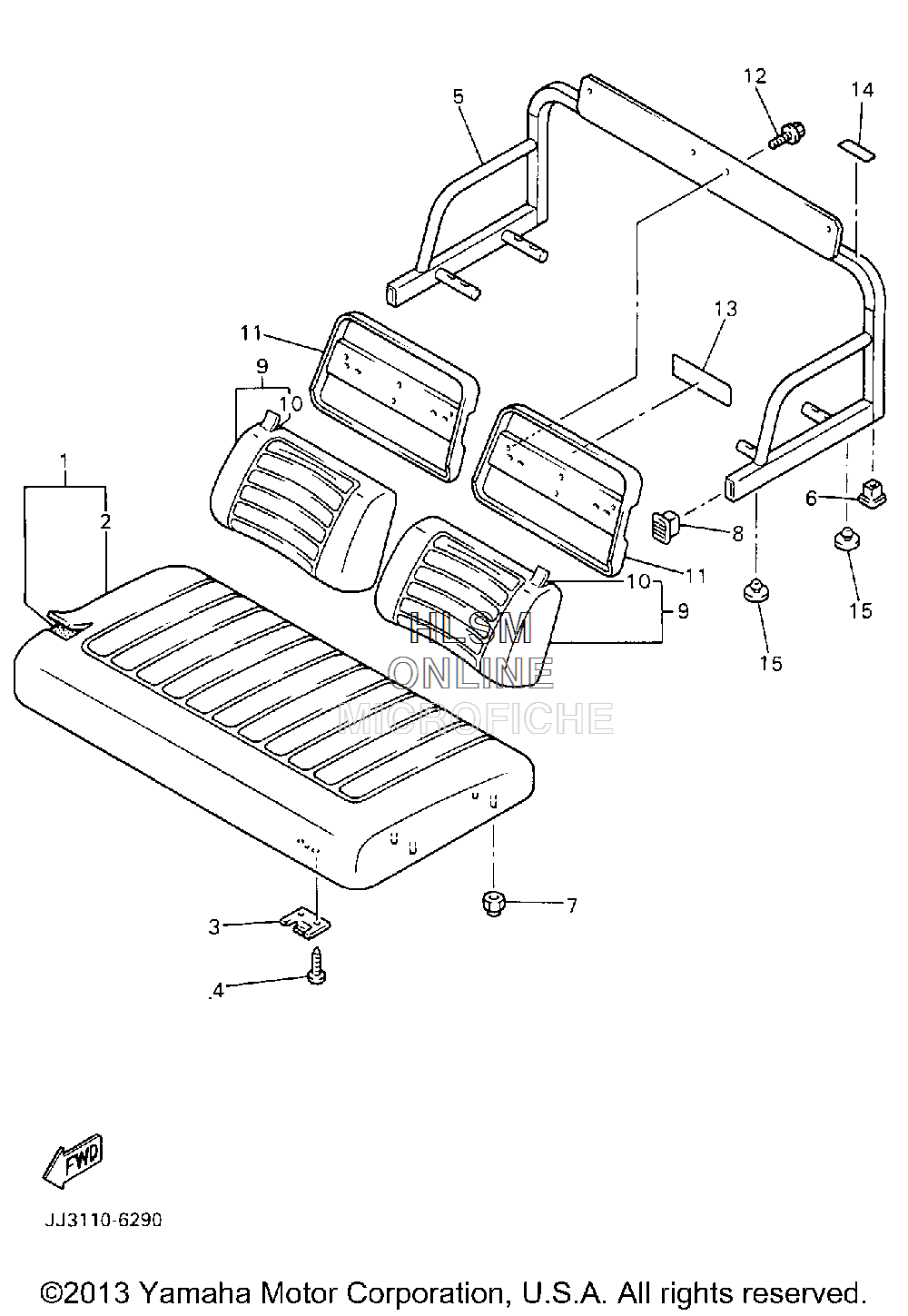

SEAT для Yamaha UTILITY CAR [G11AP] (JJ31) - 1996 года выпуска
-
№АртикулНазвание
-
1JJ3-K8401-00-00 SEAT SUB-ASSEMBLY, CUSHIONSEAT SUB-ASSEMBLY, CUSHION
-
2JJ3-K8404-09-00 ...COVER, SEAT...COVER, SEAT
-
3JF2-K8426-00-00 HINGE, SEAT 1HINGE, SEAT 1
-
497780-50125-00 SCREW, TAPPINGSCREW, TAPPING
-
5JJ3-K8420-20-00 SEAT ASSY 2SEAT ASSY 2
-
6JJ3-K818E-00-00 CAP, PROTECTOR END 1CAP, PROTECTOR END 1
-
795617-08200-00 NUT, U-FLANGE (95607-08200-00)NUT, U-FLANGE (95607-08200-00)
-
8JJ3-K8139-00-00 CAP, ENDCAP, END
-
9JJ3-K8402-00-00 SEAT SUB ASSEMBLY, BACKSEAT SUB ASSEMBLY, BACK
-
10JJ3-K841G-09-00 ...COVER, SEAT BACK 2...COVER, SEAT BACK 2
-
11JJ3-K8413-00-00 COVER, SEAT BACKCOVER, SEAT BACK
-
1290119-06915-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
13JJ3-K7762-00-00 LABEL, WARNING 2LABEL, WARNING 2
-
14JJ3-K7763-00-00 LABEL, WARNING 3LABEL, WARNING 3
-
15JJ3-K8433-00-00 DAMPER, SEAT SUPPORTDAMPER, SEAT SUPPORT
