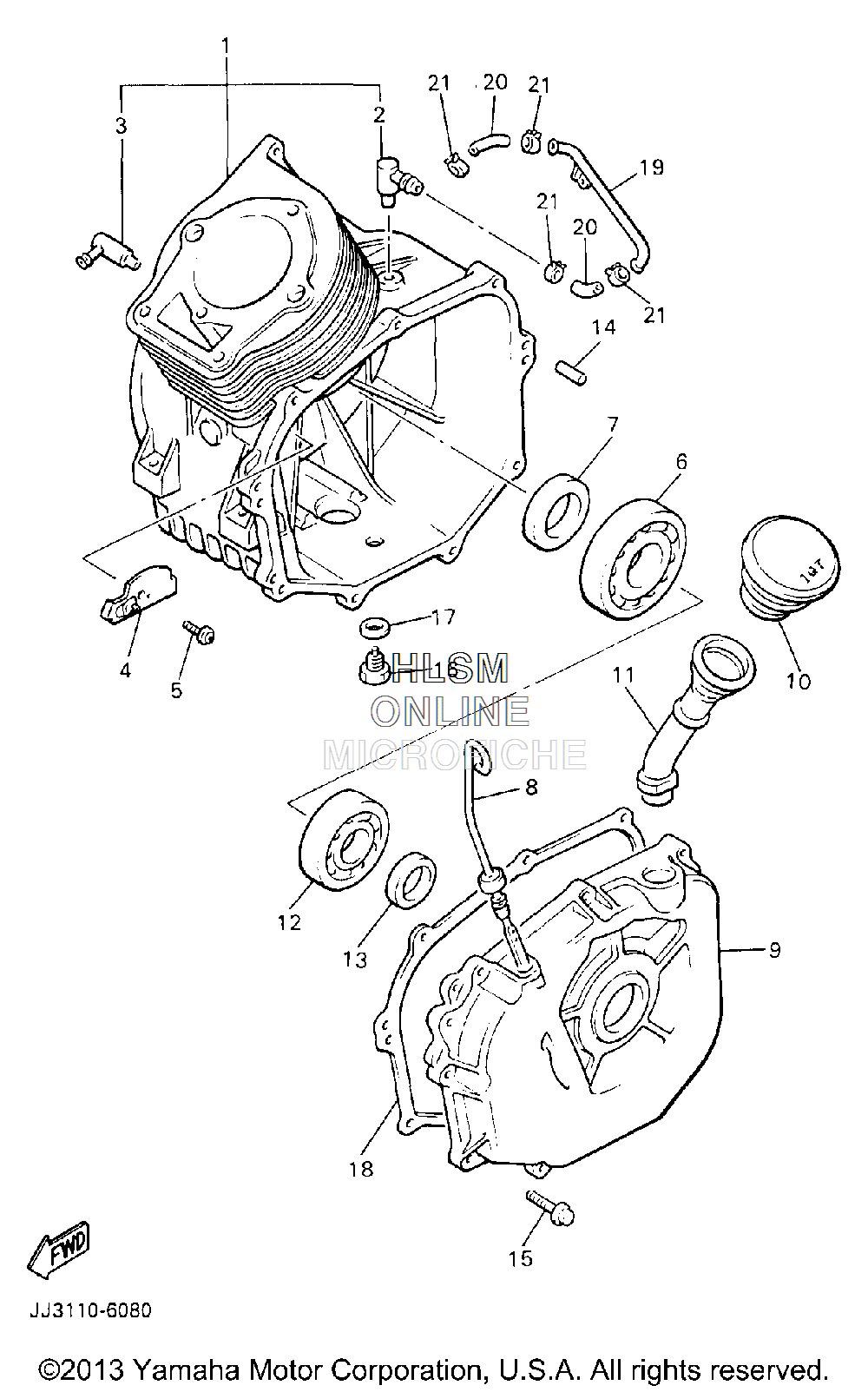

CRANKCASE для Yamaha UTILITY CAR [G11AP] (JJ31) - 1996 года выпуска
-
№АртикулНазвание
-
1JN5-15100-00-00 CRANKCASE ASSEMBLYCRANKCASE ASSEMBLY
-
2J38-15148-00-00 ...NOZZLE 2...NOZZLE 2
-
3J38-15155-00-00 ...NOZZLE 3...NOZZLE 3
-
4JN5-13610-00-00 REED VALVE ASSEMBLYREED VALVE ASSEMBLY
-
590159-05117-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
693306-30709-00 BEARINGBEARING
-
793102-35191-00 OIL SEALOIL SEAL
-
8J38-15361-00-00 GAUGE, LEVELGAUGE, LEVEL
-
9J38-15411-01-00 COVER, CRANKCASE 1COVER, CRANKCASE 1
-
10J38-15363-00-00 PLUG, OILPLUG, OIL
-
11J38-15112-00-00 PIPE, OILPIPE, OIL
-
1293306-30630-00 BEARINGBEARING
-
1393102-30195-00 OIL SEALOIL SEAL
-
1499530-08012-00 PIN, DOWELPIN, DOWEL
-
1595817-08035-00 BOLT, FLANGEBOLT, FLANGE
-
1697007-12020-00 BOLTBOLT
-
17812-11198-00-00 GASKETGASKET
-
18J38-15451-02-00 GASKET, CRANKCASE COVER 1GASKET, CRANKCASE COVER 1
-
19J38-13161-00-00 PIPE, DELIVERY 1PIPE, DELIVERY 1
-
2090445-110E6-00 HOSEHOSE
-
2190467-10008-00 CLIPCLIP
