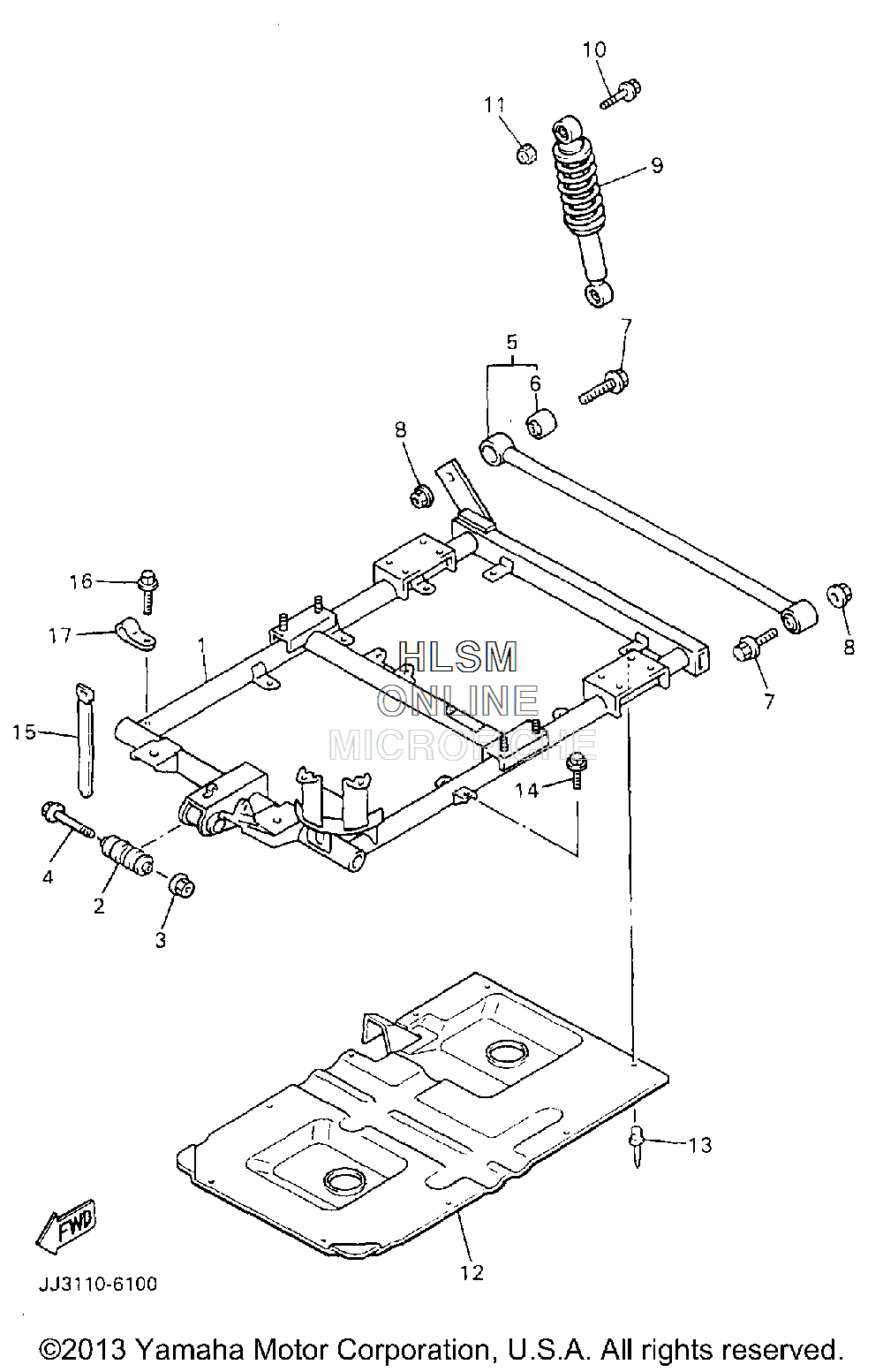

SUSPENSION - REAR ARM для Yamaha UTILITY CAR [G11AP] (JJ31) - 1996 года выпуска
-
№АртикулНазвание
-
1JN3-F2110-00-00 REAR ARM COMP.REAR ARM COMP.
-
2JN3-22123-00-00 BUSH 1BUSH 1
-
395617-12200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
490105-12743-00 BOLT, FLANGEBOLT, FLANGE
-
5JF2-22172-00-00 ARM, REAR 2ARM, REAR 2
-
6J50-22124-00-00 ...BUSH 2...BUSH 2
-
795817-12065-00 BOLT, FLANGEBOLT, FLANGE
-
895617-12200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
9JJ3-F2210-00-00 SHOCK ABSORBERSHOCK ABSORBER
-
1095817-12065-00 BOLT, FLANGEBOLT, FLANGE
-
1190185-12072-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
12J38-22128-00-00 COVER, THRUST 1COVER, THRUST 1
-
1390267-40131-00 RIVET, BLINDRIVET, BLIND
-
1495807-06016-00 BOLT, FLANGEBOLT, FLANGE
-
15JF2-82591-00-00 BANDBAND
-
1695807-06016-00 BOLT, FLANGEBOLT, FLANGE
-
1790461-08133-00 CLAMPCLAMP
