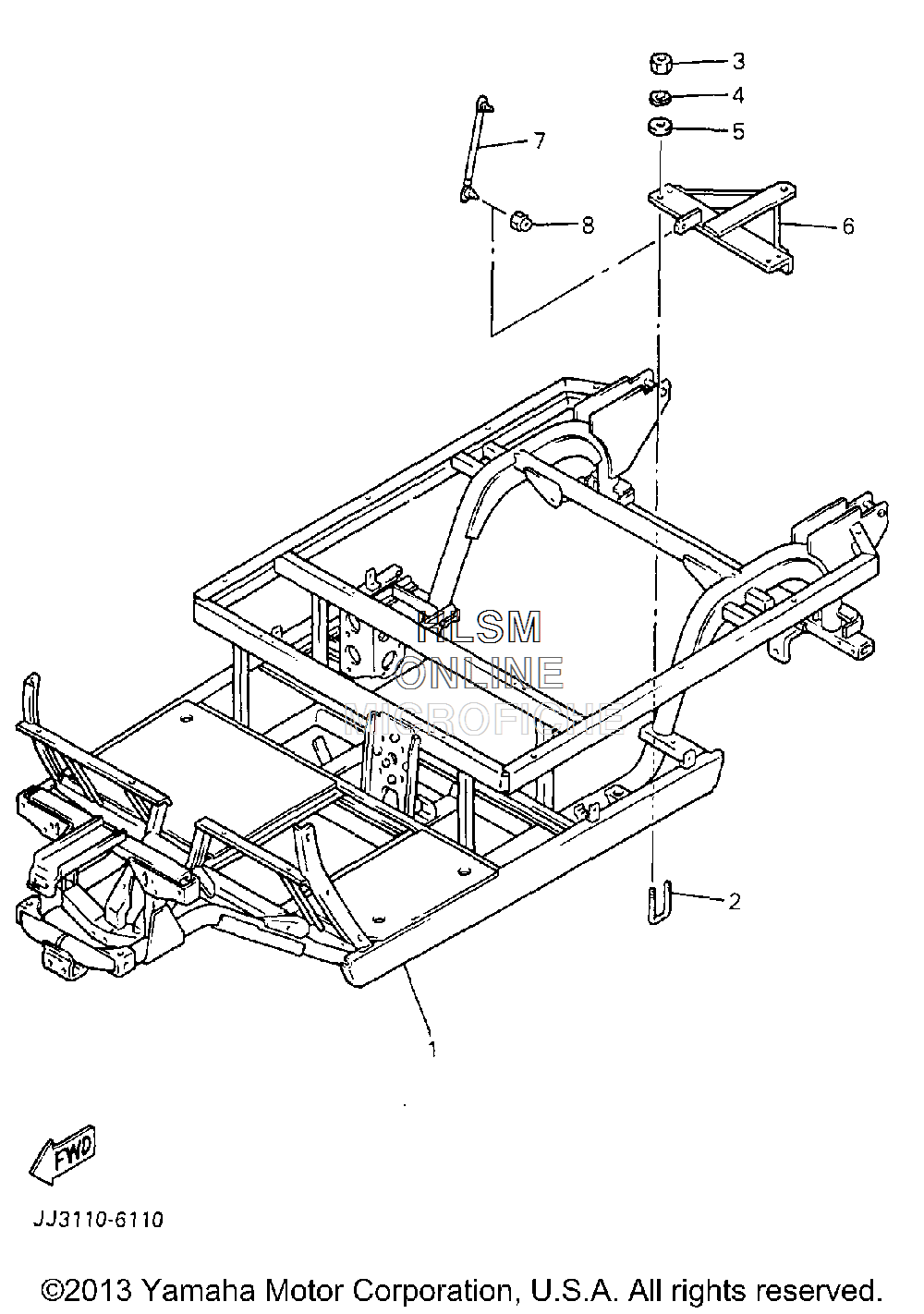

FRAME для Yamaha UTILITY CAR [G11AP] (JJ31) - 1996 года выпуска
-
№АртикулНазвание
-
1JJ3-F2501-21-00 FRAME COMP.FRAME COMP.
-
290109-10841-00 BOLTBOLT
-
390170-10847-00 NUT, HEXNUT, HEX
-
492907-10100-00 WASHER, SPRINGWASHER, SPRING
-
592907-10200-00 WASHER, PLAINWASHER, PLAIN
-
6JJ3-F722B-01-00 BAR, TOWBAR, TOW
-
7JJ3-K7588-00-00 DAMPER 1DAMPER 1
-
895617-08200-00 NUT, U-FLANGE (95607-08200-00)NUT, U-FLANGE (95607-08200-00)
