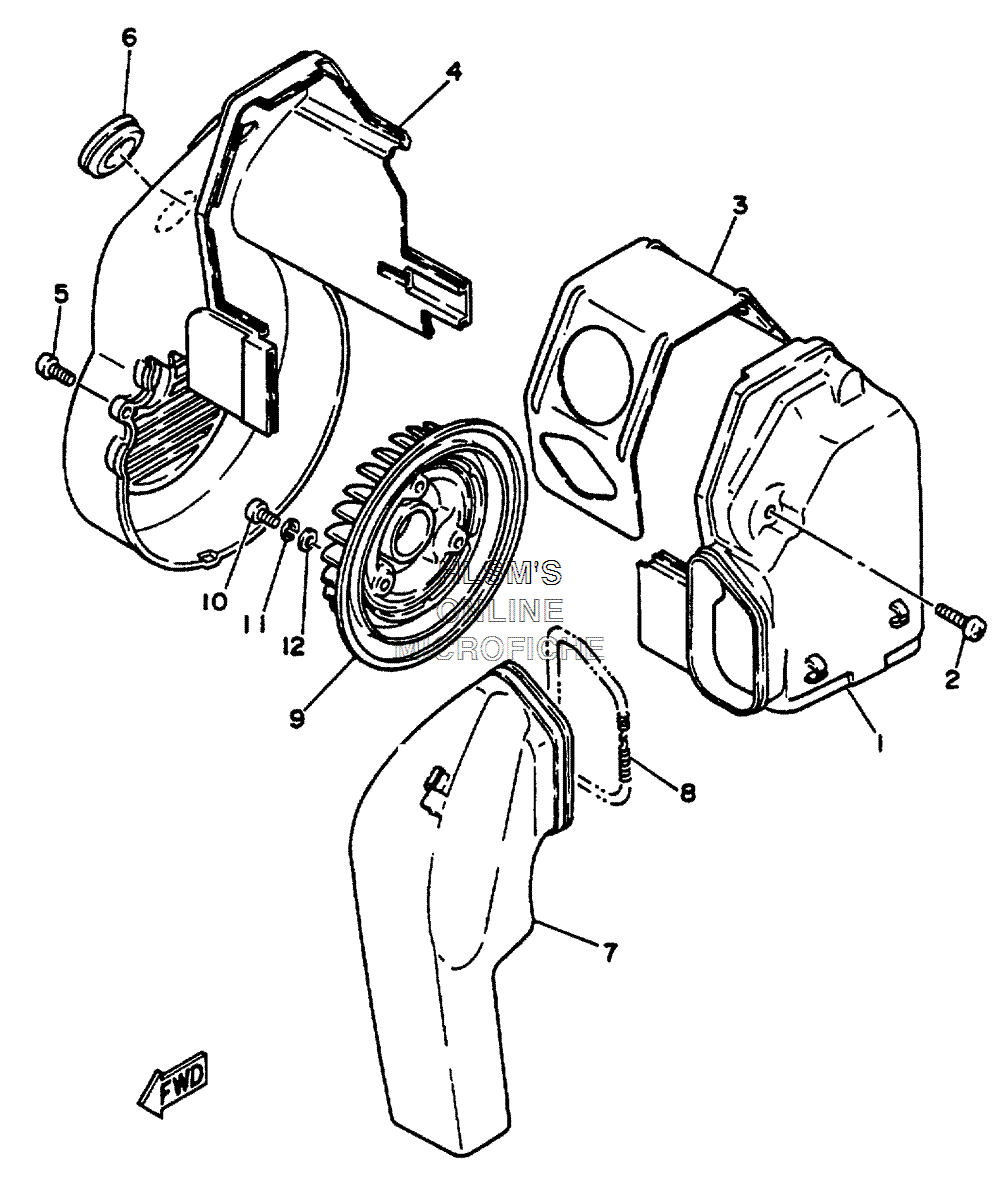

AIR SHROUD W/ FAN для Yamaha RIVA - 2001 года выпуска
-
№АртикулНазвание
-
150M-12651-00-00 AIR SHROUD, CYLINDER 1AIR SHROUD, CYLINDER 1
-
298517-06025-00 SCREW, PAN HEADSCREW, PAN HEAD
-
350M-12652-00-00 AIR SHROUD, CYLINDER 2AIR SHROUD, CYLINDER 2
-
450M-12653-00-00 AIR SHROUD, CYLINDER 3AIR SHROUD, CYLINDER 3
-
598580-06020-00 SCREW, PAN HEADSCREW, PAN HEAD
-
690480-30167-00 GROMMETGROMMET
-
750M-12654-00-00 AIR SHROUD, CYLINDER 4AIR SHROUD, CYLINDER 4
-
890506-06279-00 SPRING, TENSIONSPRING, TENSION
-
950M-12611-00-00 FANFAN
-
1097880-06018-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1192995-06100-00 WASHER, SPRINGWASHER, SPRING
-
1292901-06600-00 WASHER, PLATEWASHER, PLATE
