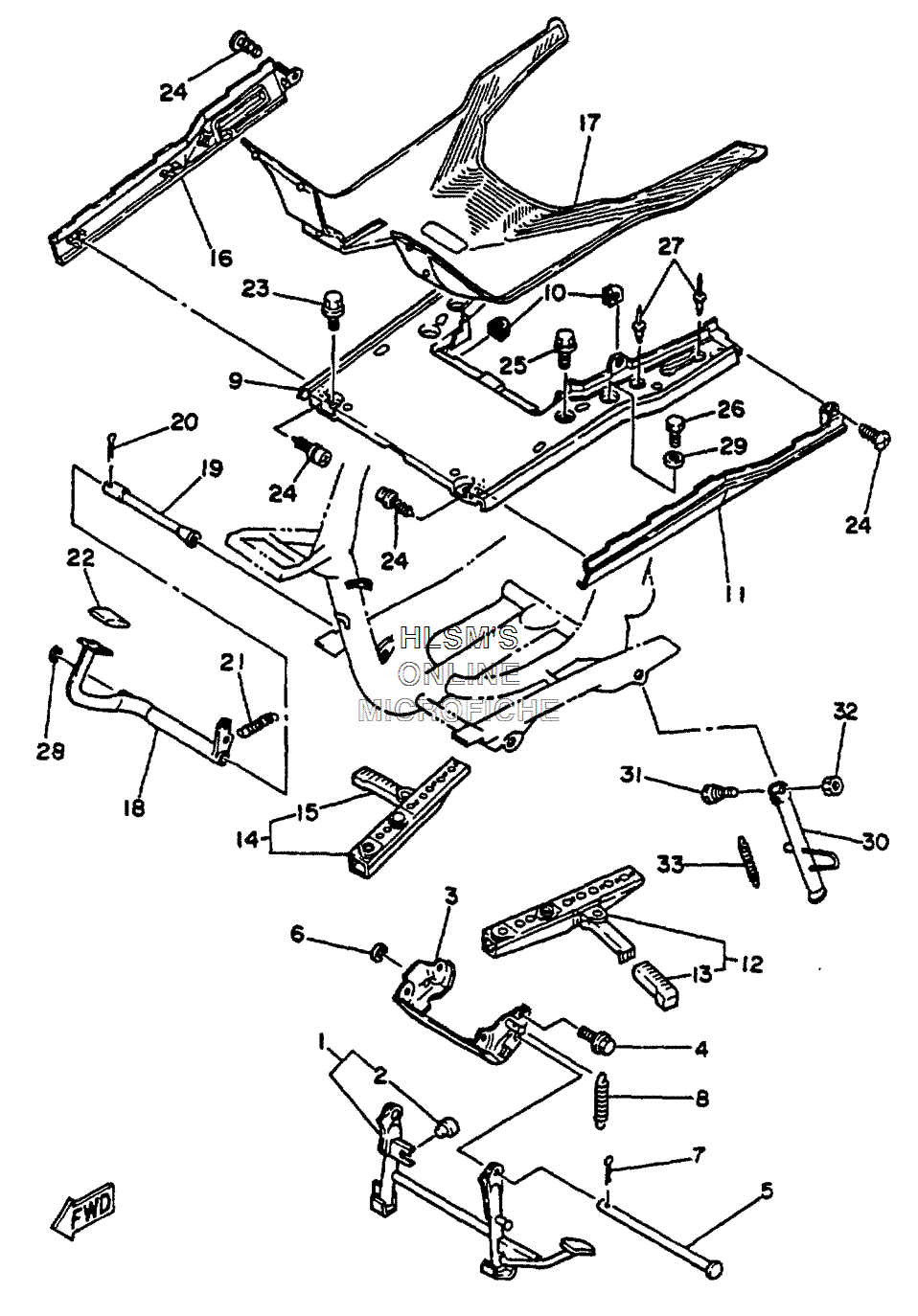

STAND W/ FOOTREST для Yamaha RIVA - 2001 года выпуска
-
№АртикулНазвание
-
150M-27111-00-00 STAND, MAINSTAND, MAIN
-
25G3-27114-00-00 ...STOPPER, MAIN STAND...STOPPER, MAIN STAND
-
350M-27151-00-00 BRACKET, MAIN STANDBRACKET, MAIN STAND
-
495811-08016-00 BOLT, FLANGEBOLT, FLANGE
-
550M-27112-00-00 SHAFT, MAIN STANDSHAFT, MAIN STAND
-
692990-12200-00 WASHER, PLAINWASHER, PLAIN
-
791401-25020-00 PIN, COTTERPIN, COTTER
-
890506-20308-00 SPRING, TENSIONSPRING, TENSION
-
950W-27481-10-00 BOARD, FOOTRESTBOARD, FOOTREST
-
1025G-21535-00-00 NUT 1NUT 1
-
1150M-27486-00-GE COVER 1 (SW)COVER 1 (SW)
-
1150M-27486-00-P0 COVER 1 (VRC1)COVER 1 (VRC1)
-
1250M-27430-00-00 REAR FOOTREST ASSY. 1REAR FOOTREST ASSY. 1
-
1350M-27433-00-00 ...COVER, REAR FOOTREST...COVER, REAR FOOTREST
-
1450M-27440-00-00 REAR FOOTREST ASSY. 2REAR FOOTREST ASSY. 2
-
1550M-27444-00-00 ...COVER, REAR FOOTREST...COVER, REAR FOOTREST
-
1650M-27487-00-GE COVER 2 (SW)COVER 2 (SW)
-
1650M-27487-00-P0 COVER 2 (VRC1)COVER 2 (VRC1)
-
1750W-27483-10-00 MAT 1MAT 1
-
1850W-27211-00-00 PEDAL, BRAKEPEDAL, BRAKE
-
1950W-27212-00-00 SHAFT, BRAKE PEDALSHAFT, BRAKE PEDAL
-
2091401-20030-00 PIN, COTTERPIN, COTTER
-
2190506-20193-00 SPRING, TENSIONSPRING, TENSION
-
2250W-27285-00-00 CAPCAP
-
2390119-06018-00 BOLT, HEXAGONBOLT, HEXAGON
-
2490164-04008-00 SCREW, TAPPINGSCREW, TAPPING
-
2595817-08035-00 BOLT, FLANGEBOLT, FLANGE
-
2697313-06045-00 BOLT, HEXAGONBOLT, HEXAGON
-
2790267-40054-00 RIVET, BLINDRIVET, BLIND
-
2890201-14411-00 WASHER, PLATEWASHER, PLATE
-
2990201-06M02-00 WASHER, PLATEWASHER, PLATE
-
3050M-27311-01-00 STAND, SIDESTAND, SIDE
-
3190109-103A1-00 BOLTBOLT
-
3295303-10700-00 NUTNUT
-
3390506-20158-00 SPRING, TENSIONSPRING, TENSION
