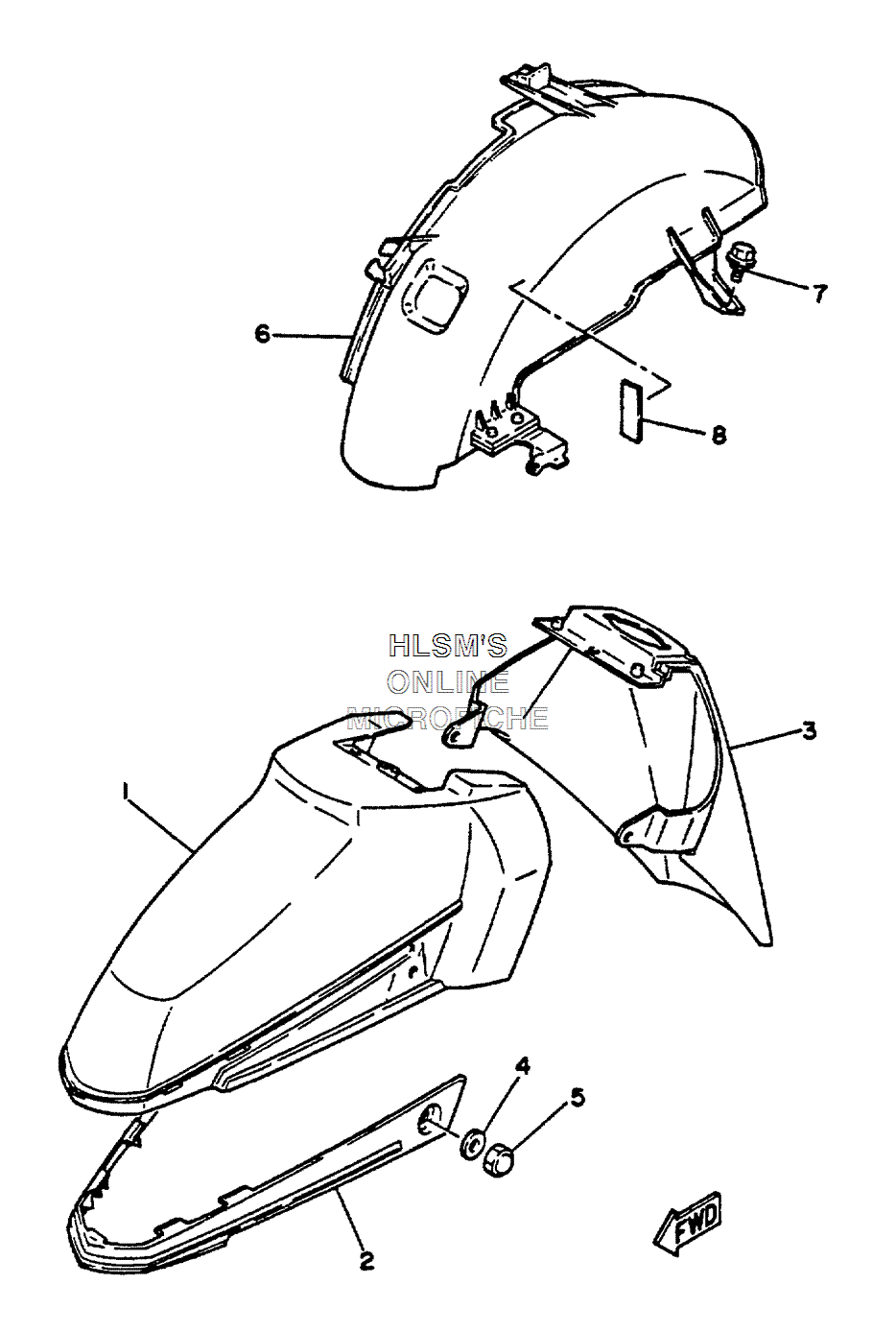

FENDER - FRONT / REAR для Yamaha RIVA - 2001 года выпуска
-
№АртикулНазвание
-
150W-21511-00-GE FENDER, FRONT (SW)FENDER, FRONT (SW)
-
150W-21511-00-00 MOLD, FENDER (VRC1)MOLD, FENDER (VRC1)
-
250W-21511-00-00 MOLD, FENDER (VRC1)MOLD, FENDER (VRC1)
-
350W-21556-00-GE FENDER, FRONT 2 (SW)FENDER, FRONT 2 (SW)
-
350W-21556-00-P0 FENDER, FRONT 2 (VRC1)FENDER, FRONT 2 (VRC1)
-
490201-067J4-00 WASHER, PLATEWASHER, PLATE
-
595306-06800-00 NUTNUT
-
650M-Y2162-00-00 MUD GUARD COMP.MUD GUARD COMP.
-
750W-21631-00-00 BOLTBOLT
-
822F-2139X-00-00 DAMPERDAMPER
Все узлы модели:
- AIR CLEANER ASSY. W/ INTAKE
- AIR SHROUD W/ FAN
- CARBURETOR ASSY.
- CLUTCH ASSY.
- COWLING W/ LEG SHIELD
- CRANKCASE ASSY.
- CRANKSHAFT W/ PISTON ASSY.
- CYLINDER W/ HEAD ASSY.
- ELECTRICAL
- ELECTRICAL 2
- EXHAUST ASSY.
- • FENDER - FRONT / REAR
- FLASHER LIGHT
- FRAME
- FUEL TANK ASSY.
- GENERATOR ASSY.
- HANDLEBAR - COVER W/ MIRRORS
- HANDLEBAR W/ CABLES
- HANDLEBAR W/ SWITCHES - LEVERS
- HEADLIGHT ASSY.
- INSTRUMENT PANEL
- MODEL INFO - MANUALS
- OIL PUMP
- SEAT ASSY.
- SIDE COVER
- STAND W/ FOOTREST
- STARTER CLUTCH ASSY.
- STARTING MOTOR ASSY.
- SUSPENSION - FRONT FORK
- SUSPENSION - REAR ARM W/ SHOCK
- TAILLIGHT ASSY.
- TRANSMISSION
- VALVE ASSY. W/ CAM CHAIN ASSY.
- WHEEL - FRONT
- WHEEL - REAR
